51 16 045 Removing And Installing/Replacing Retaining Ring On Left Or Right Door Mirror

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove housing (cover) on door mirror. Refer to 51 16 040 REMOVING AND INSTALLING/REPLACING HOUSING (COVER) ON LEFT OR RIGHT DOOR MIRROR .

Release screws (1).

Remove retaining ring (2).

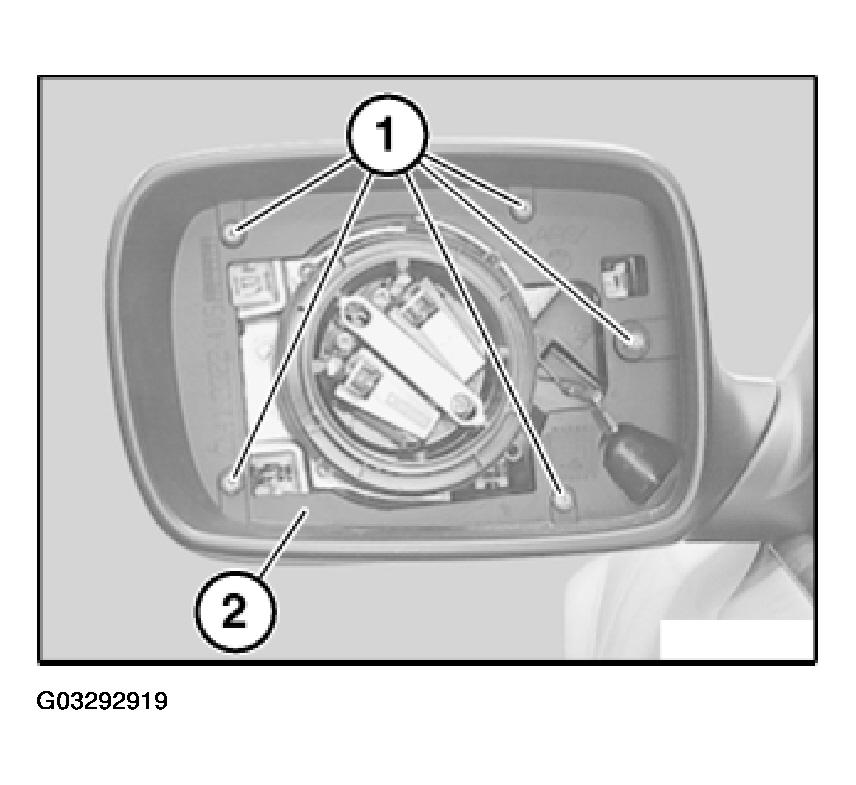

Fig 1: Locating Retaining Ring Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) on retaining ring (2) must not be damaged.

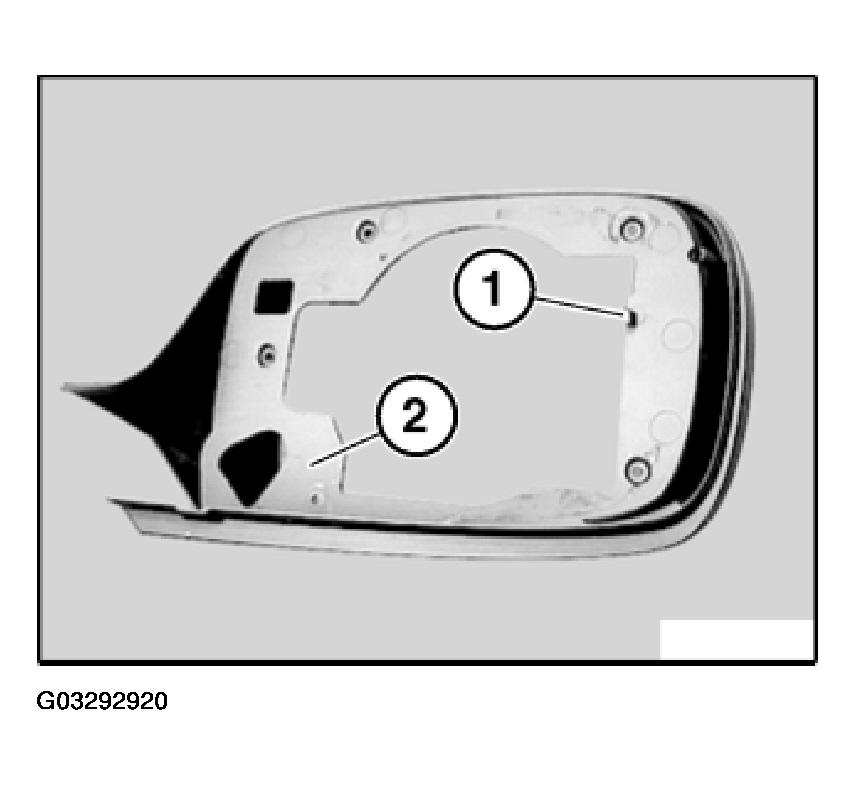

Fig 2: View Of Guide On Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.
