51 71 387 Removing And Installing/Replacing Rear Water Gutter Trim (Rear Lid) On Left Or Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Lever out expansion rivet (3).

Detach rubber seal (2).

Slide trim (1) towards rear and remove.

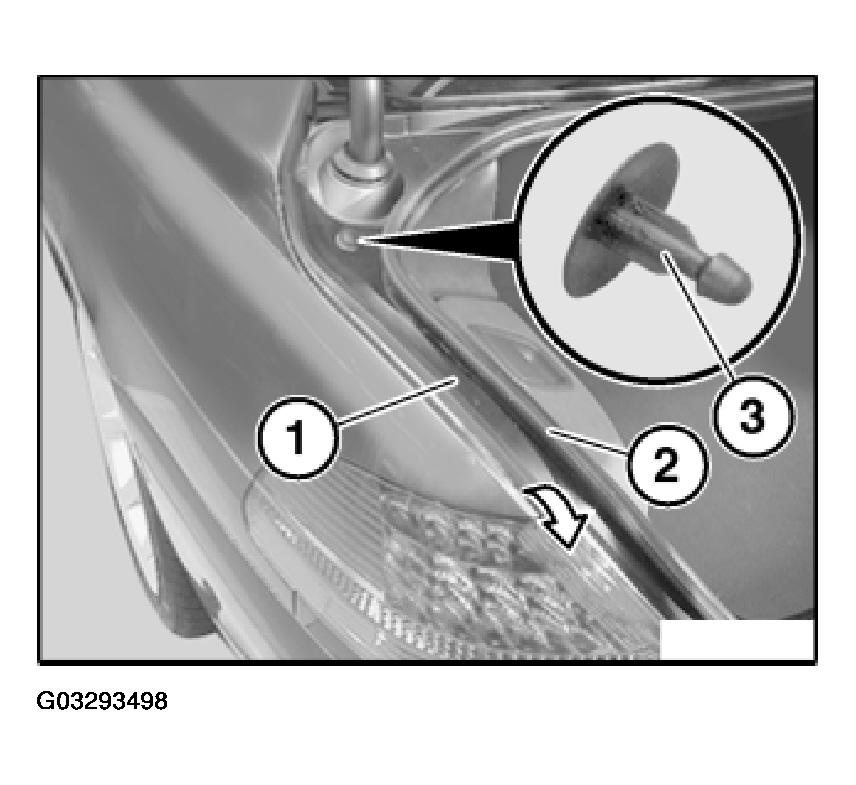

Fig 1: View Of Expansion Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure trim (1) is correctly located in cover (2).

Trim (1) must engage catch (4) in side panel at rear (3).

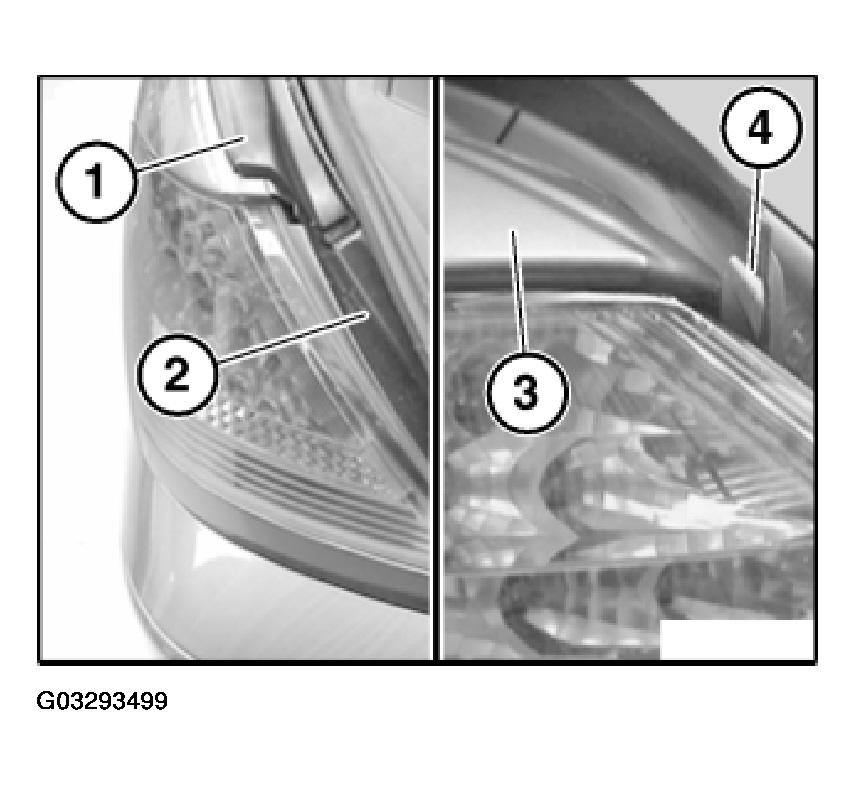

Fig 2: Locating Catch In Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: If clip fixture (1) is removed for further work (e.g. painting): Always replace clip fixture (1) in order to prevent leaks.

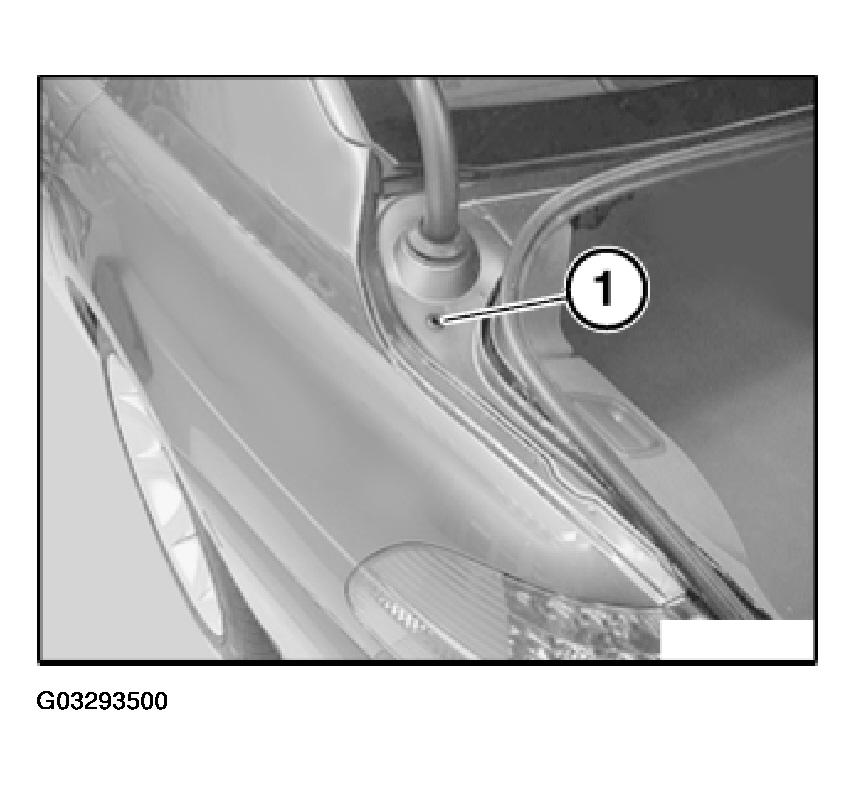

Fig 3: Identifying Clip Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
