51 45 263 Removing And Installing/Replacing Instrument Panel Trim On Right: Notes

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove wood trim on instrument panel on right. Refer to 51 45 366 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON RIGHT .

Disconnect Bowden cable (1) for glovebox.

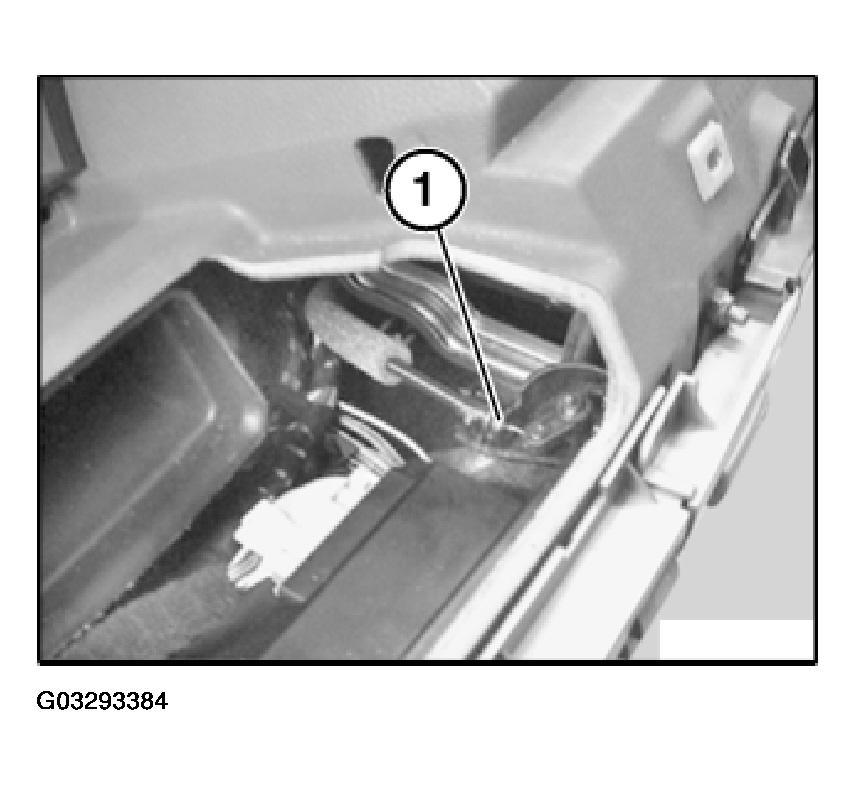

Fig 1: Locating Bowden Cable For Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In the version equipped with a CD changer, the CD changer is secured with screws (2). Release screws (1) and (2).
