51 23 215 Removing And Installing/Replacing Cable For Hood/Bonnet Locks (To Locks)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Disconnect Bowden cable at connection point. Refer to 51 23 211 REMOVING AND INSTALLING/REPLACING CABLE FOR FRONT ENGINE HOOD LOCKS (TO PASSENGER COMPARTMENT) .
- Release Bowden cables on hood/bonnet lock on left/right. Refer to 51 23 100 REMOVING AND INSTALLING/REPLACING RIGHT ENGINE HOOD LOCK and 51 23 110 REMOVING AND INSTALLING/REPLACING LEFT HOOD/BONNET LOCK .

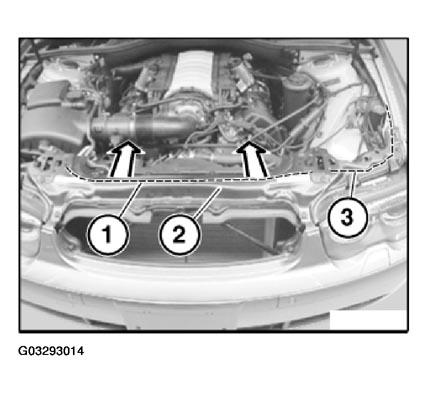

Feed connecting cable (1) out of cross-member (2) inwards.
Feed cable (3) out of cross-member (2) and side panel.
