51 23 100 Removing And Installing/Replacing Right Engine Hood Lock

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove right headlight. Refer to 63 12 002 REMOVING AND INSTALLING/REPLACING RIGHT HEADLIGHT and 63 12 012 REMOVING AND INSTALLING RIGHT HEADLIGHT (XENON HEADLIGHT) .

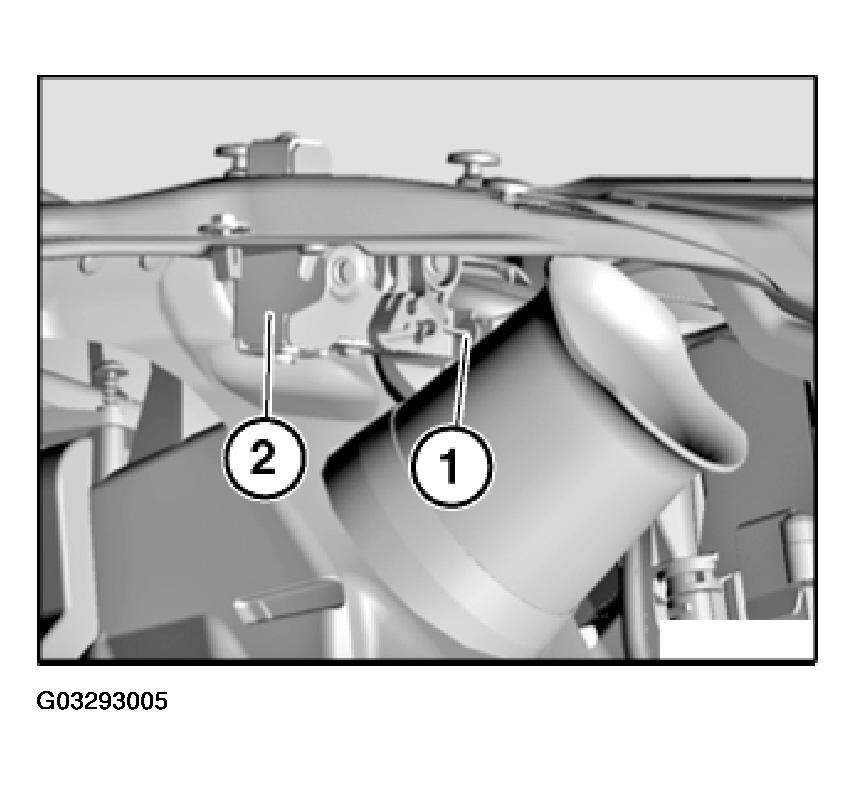

Disengage Bowden cable (1) from hood/bonnet lock (2).

Fig 1: View Of Bowden Cable In Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.

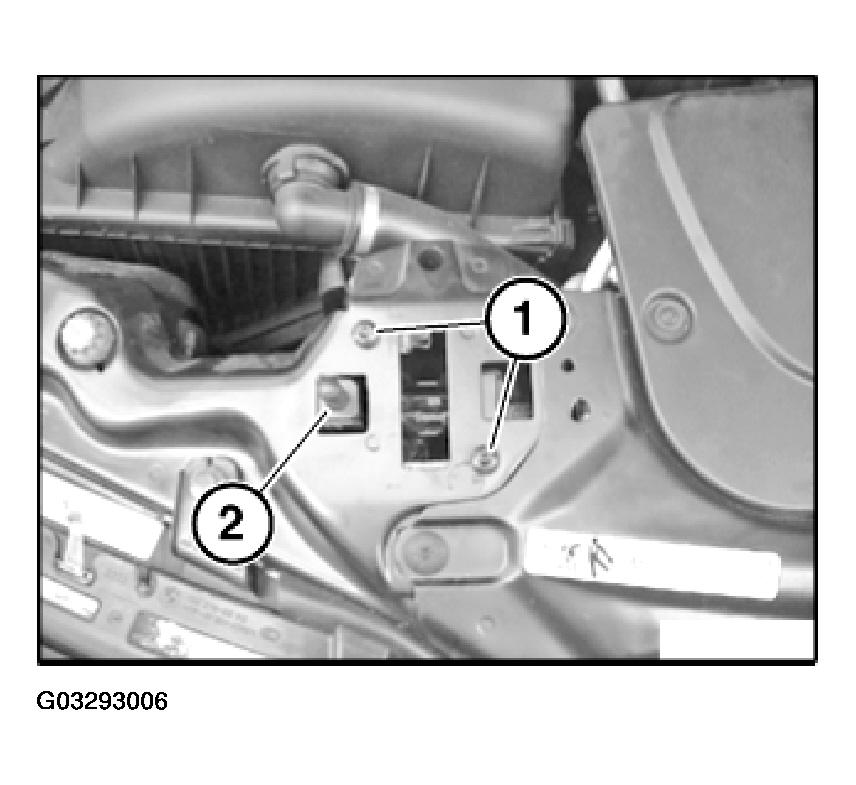

Release screws (1).

Remove hood/bonnet lock (2) towards front.

Tightening torque, refer to 51 23 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 2: Locating Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.
