51 48 001 Removing And Installing/Replacing Insulation Lining On Hood/Bonnet

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustration created using the E87 as an example. There may be differences in detail in the case of other vehicle models. See Fig 1.

Release threaded rivets (1) on insulation lining (2).

Remove insulation lining (2).

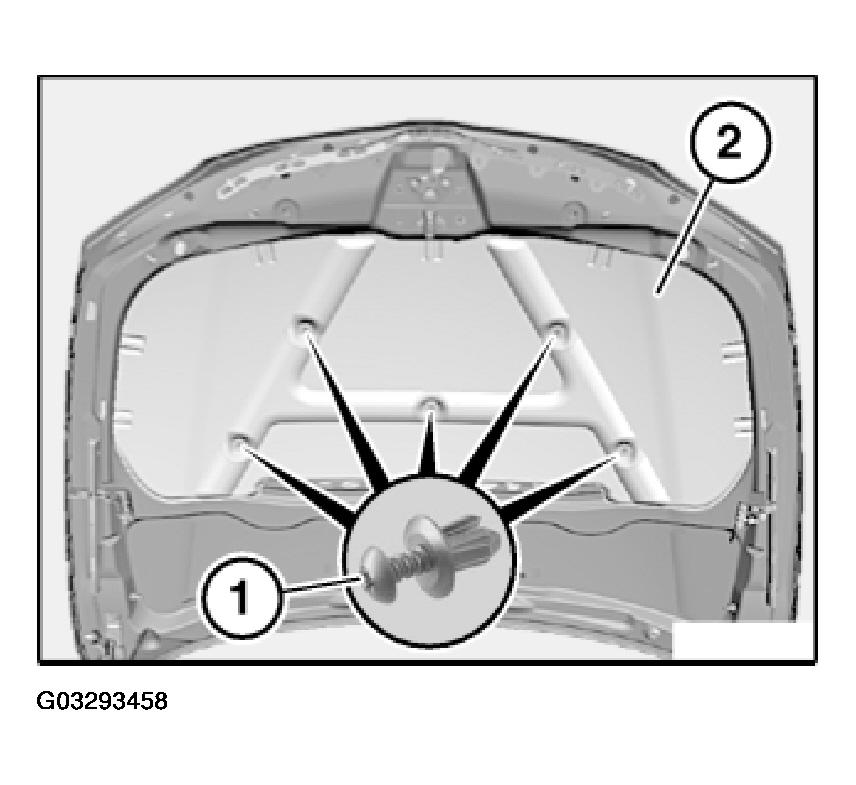

Fig 1: Identifying Threaded Rivets In Insulation Lining

Courtesy of BMW OF NORTH AMERICA, INC.
