51 41 070 Removing And Installing/Replacing Upper Section On Left Or Right Armrest

Necessary Preliminary Tasks:

• Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .
• Remove rocker switch for window operation (front). Refer to 61 31 115 REPLACING ROCKER SWITCH FOR SIDE WINDOW OPERATION (FRONT) .

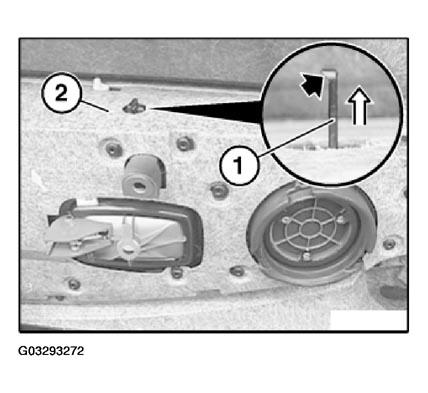

Pull out lock (1) on rear side of door trim (2) in direction of arrow.

Installation:

Slope on lock (1) must point to rear.

Fig 1: Removing Lock From Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

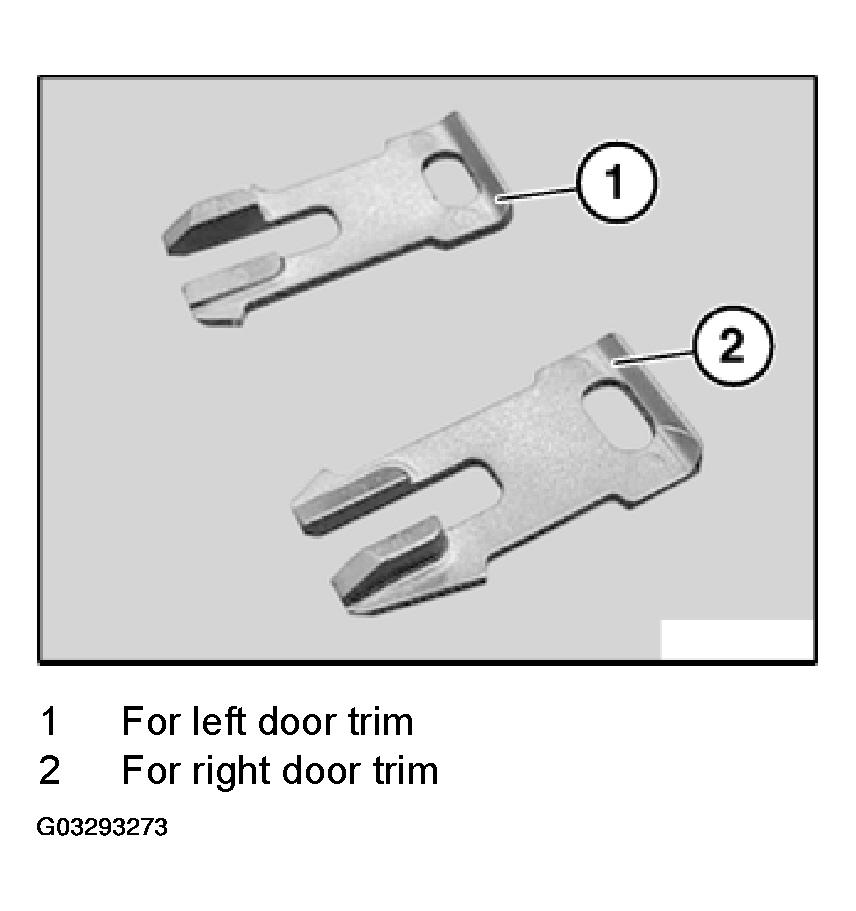

Locks for left and right door trims are different:

Fig 2: Identifying Locks For Left And Right Door Trims

Courtesy of BMW OF NORTH AMERICA, INC.

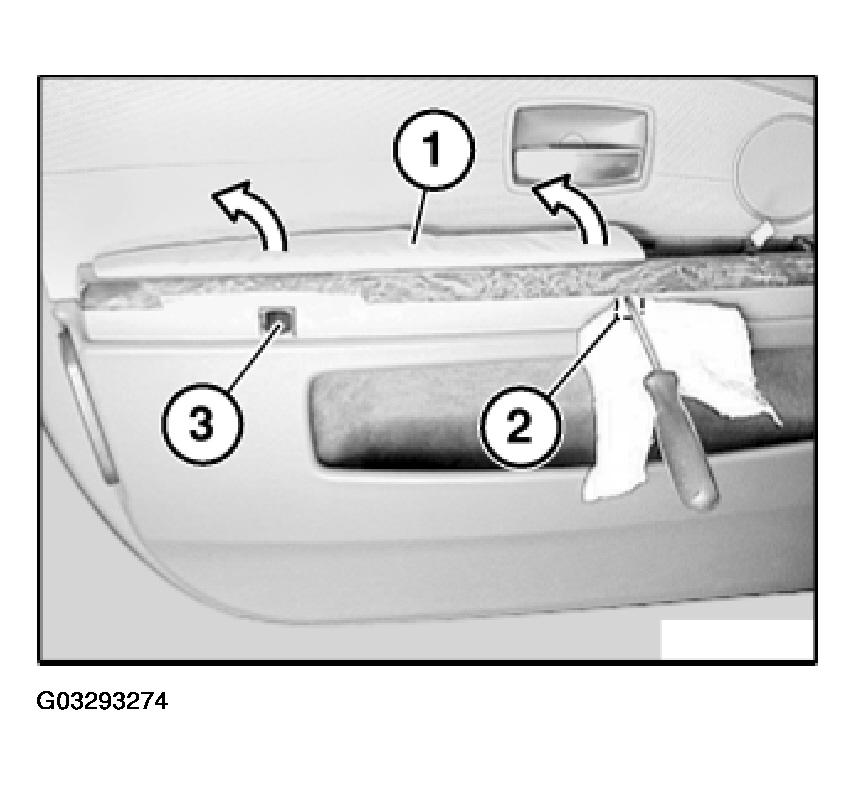

Unlock upper section (1) over bore holes at front (2) and rear (3) in direction of arrow.

Fig 3: View Of Screwdriver And Protected Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

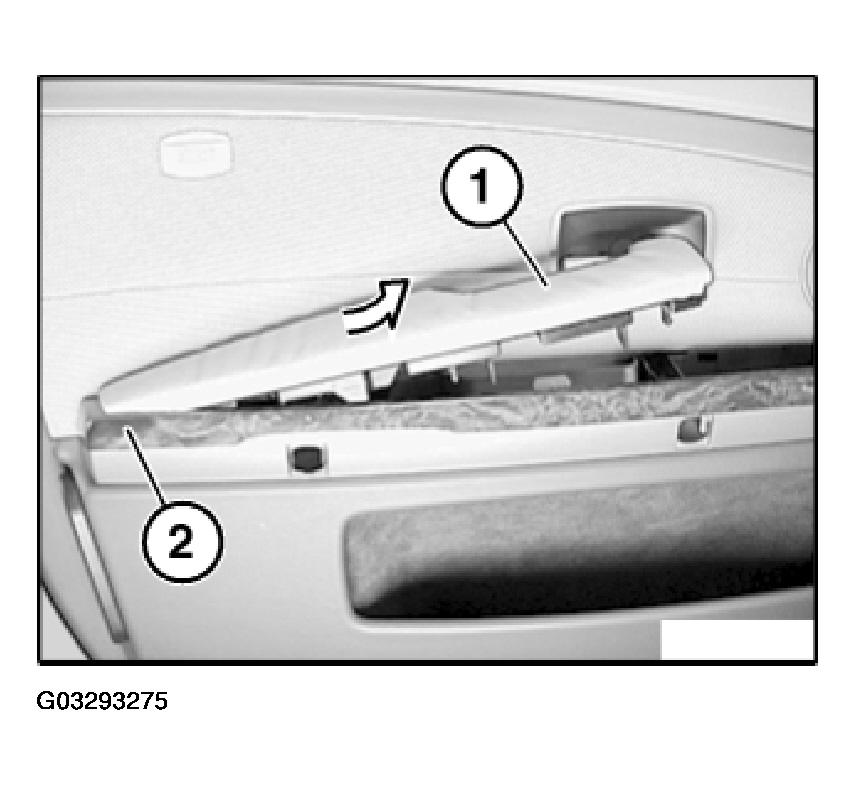

Pull upper section (1) in direction of arrow off armrest (2).

Fig 4: Removing Upper Section From Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

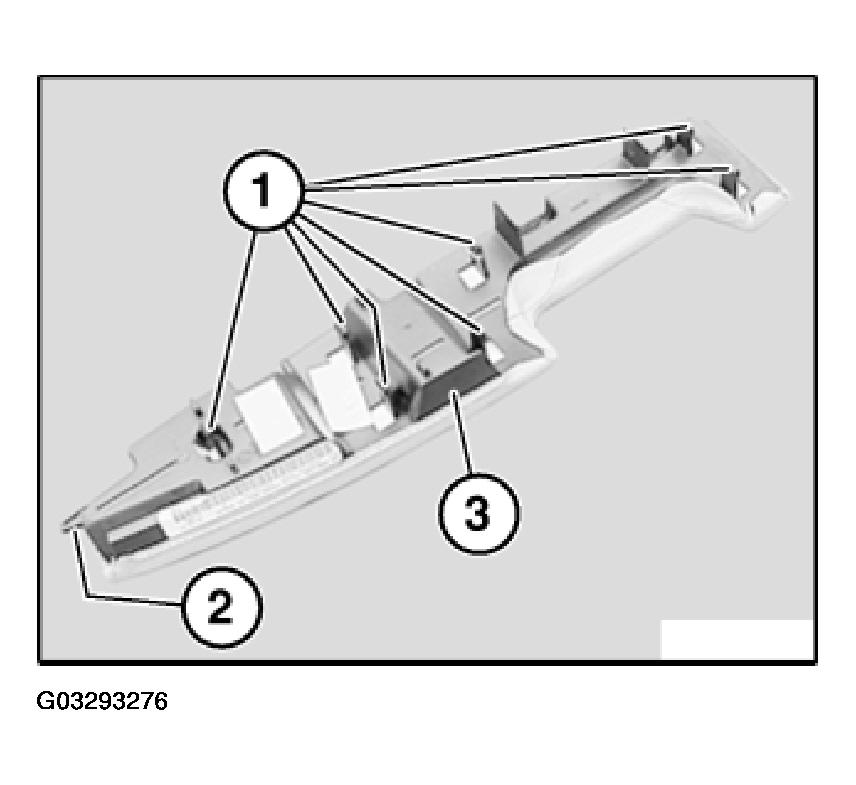

Catches (1) and guide (2) of upper section (3) must not be damaged.

Fig 5: Identifying Upper Section Catches And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
