51 41 018 Replacing Speaker Frame On Front Left Or Right Door Trim Panel

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Detach plastic welded joints (1) and remove speaker frame (2).

Installation:

Foam ring (3) must not be damaged.

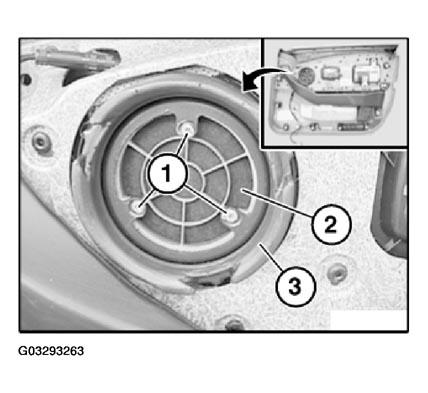

Fig 1: Locating Plastic Welded Joints

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) on plastic pin (2) is at top.

Shorten all plastic pins (2) down to measurement (A).

Install speaker frame (3) and mount with repair screws.

Tightening torque, refer to 51 41 6AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

A = 4.6_{-0.2 ace;} mm.

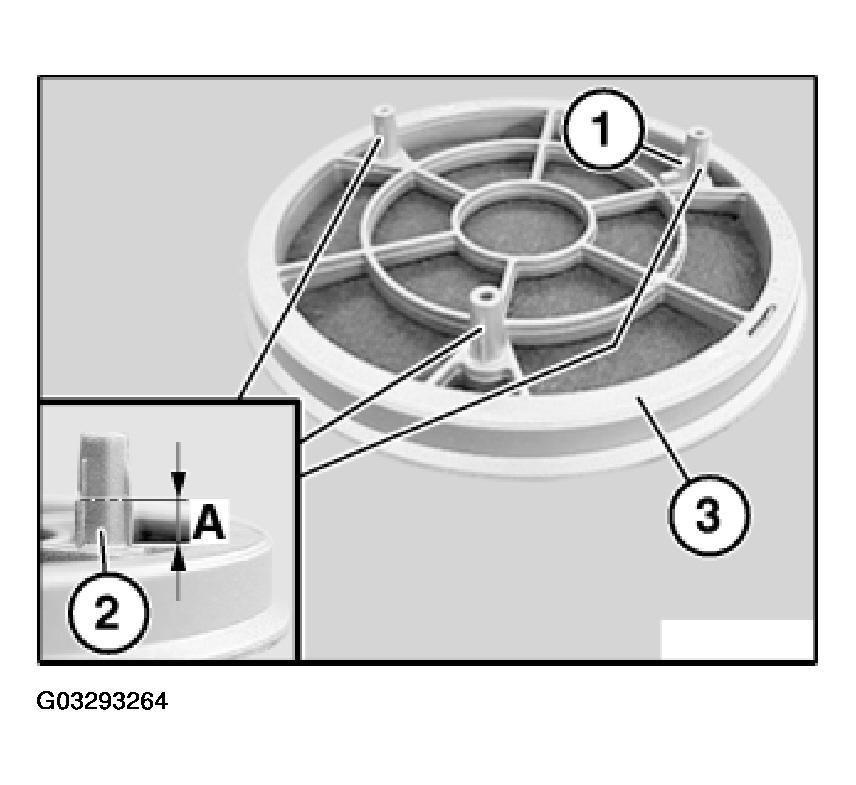

Fig 2: Identifying Dimension A

Courtesy of BMW OF NORTH AMERICA, INC.
