51 21... Replacing Door Reflector
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
Special Tools Required:
- 00 9 318
Removing:
Carefully detach reflector with special tool 00 9 318 and a hot air blower from door.
Assembly:
For cleaning, use a fluff-free disposable cloth or a fresh cleaning cloth.
- Clean bonding area with spirit.
- Air drying time at least 1 minute.
- Pull off liner.
- Stick reflector onto door.
- Press on reflector firmly.
The adhesion of the adhesive tape is increased considerably by contact pressure therefore press down over the entire area with your thumbs and backs of hands.
Liner is protective film for bonding area.

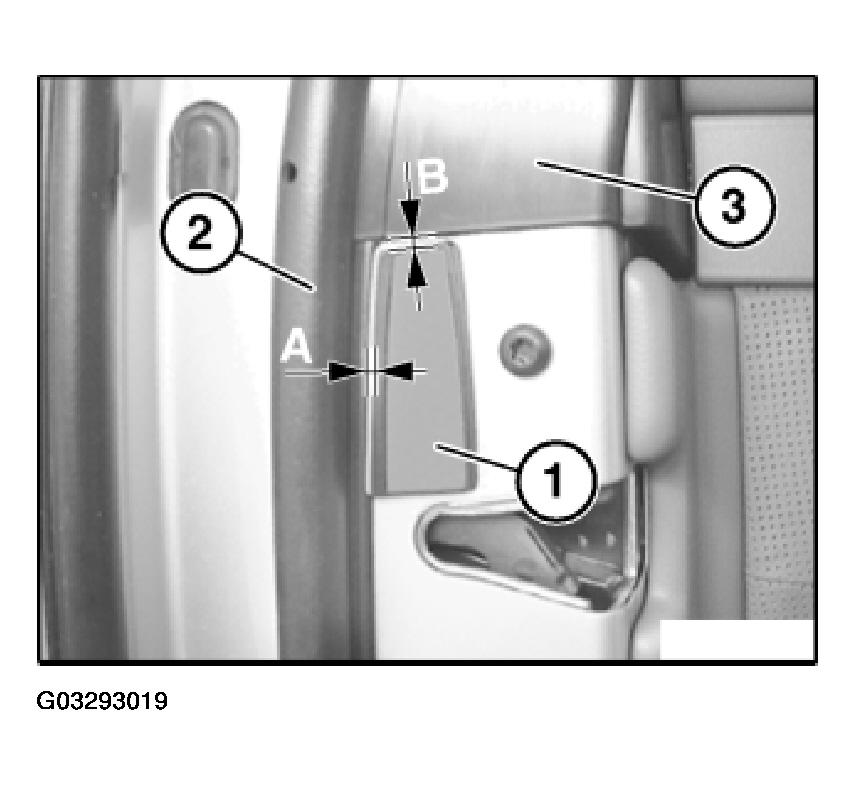

Front Door:
Stick reflector (1) at spacings (A) and (B) onto front door.
A = 1 mm.
B = 1 mm.
2) Seal.
3) Cover on door window frame.

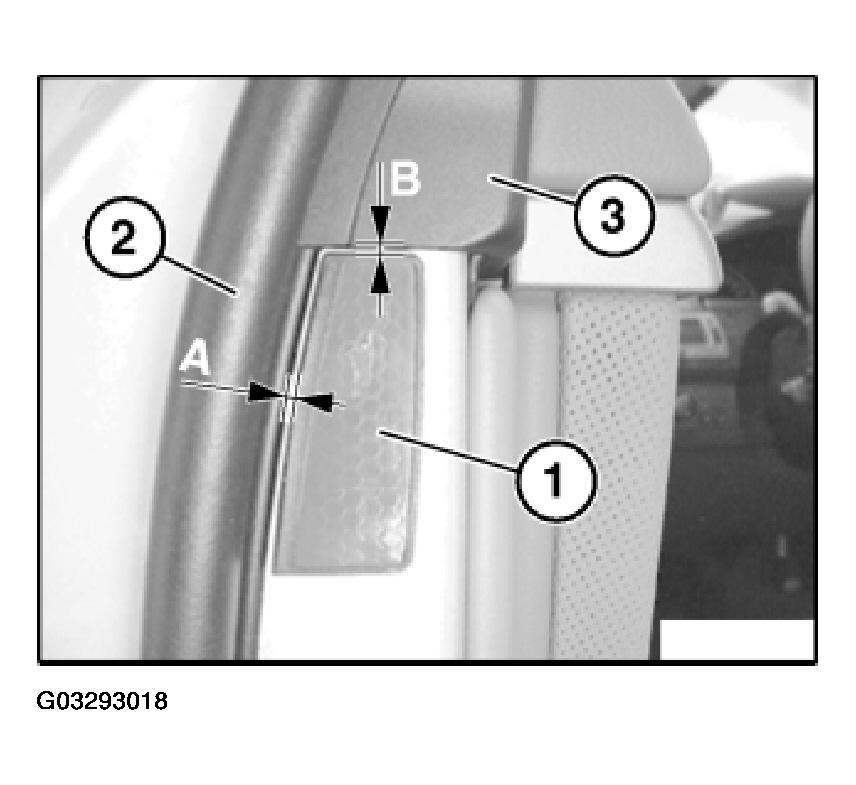

Rear Door:
Stick reflector (1) at spacings (A) and (B) onto rear door.
A = 1 mm.
B = 1 mm.
2) Seal.
3) Cover on door window frame.
