51 21 370 Removing And Installing/Replacing Cover (Seal) On Front Door At Bottom Left Or Right
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

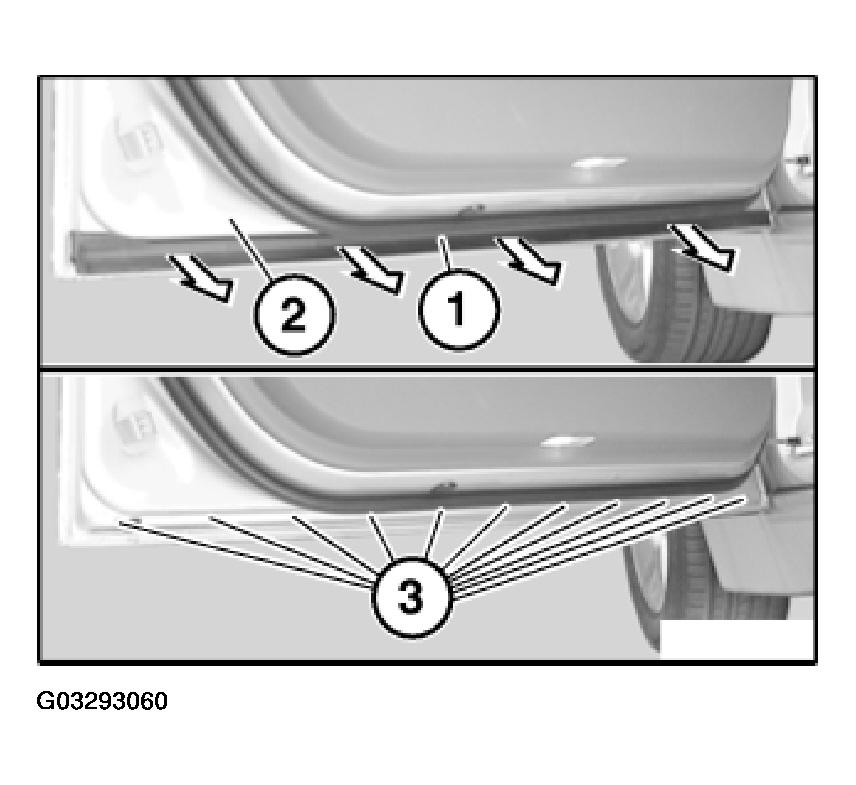

Detach cover (1) in direction of arrow from front door (2).
Installation:
Begin by clipping in at rear (B-pillar) (risk of damage).
Clip clips of cover (1) correctly into bores (3).
Installation:

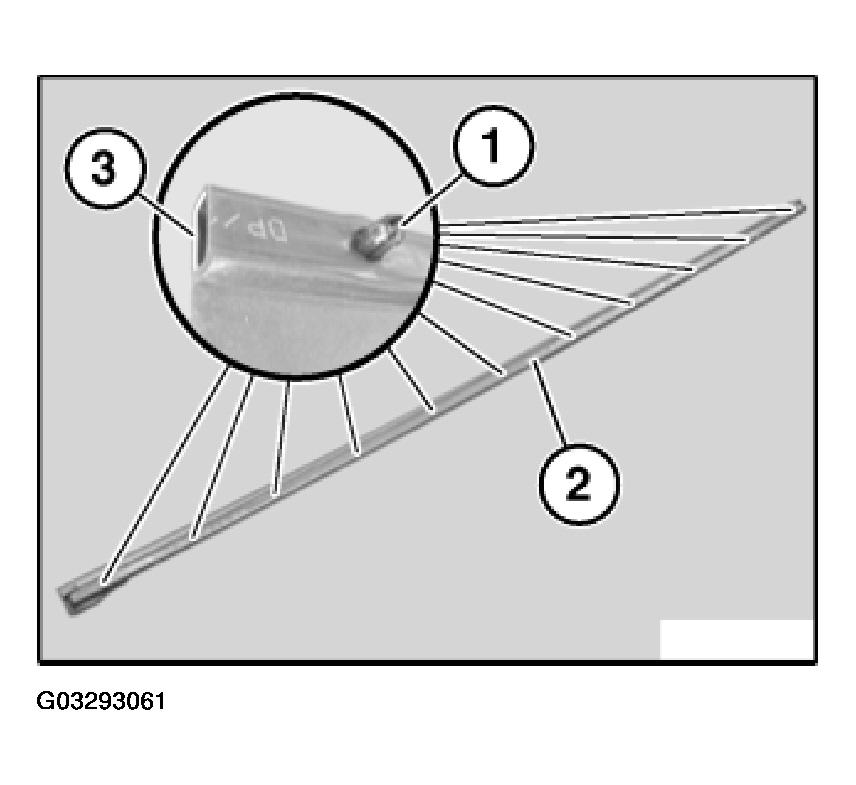

Clips (1) of cover (2) must not be damaged.
Cover (2) has an aluminum insert (3).
Only press on clips (1) when installing otherwise cover (2) will become uneven.
