Right Side:

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Version With Revolving Light:

Unfasten Velcro-type strap (1) and remove revolving light (2).

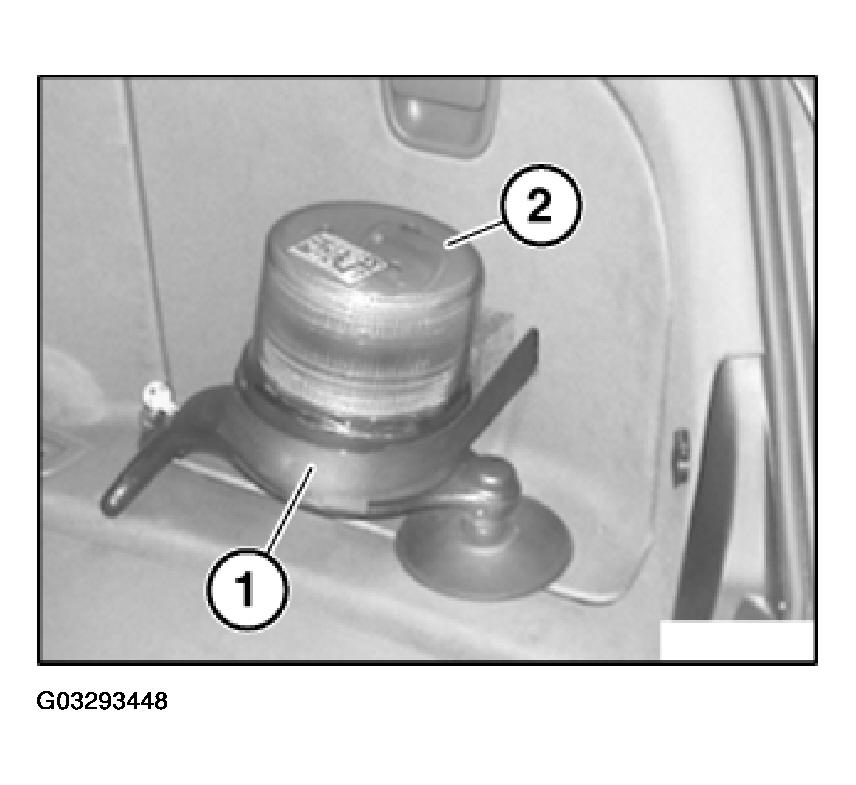

Fig 1: Locating Revolving Light
G03293448Courtesy of BMW OF NORTH AMERICA, INC.

Unlock flap (2) with lever (1) and open.

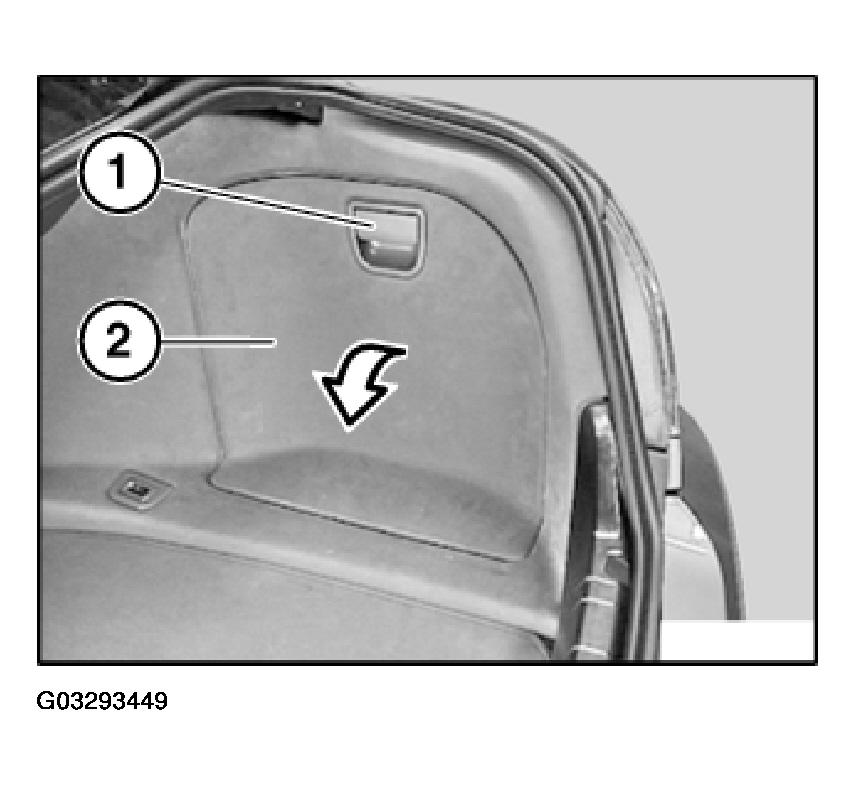

Fig 2: Identifying Flap Lever
G03293449Courtesy of BMW OF NORTH AMERICA, INC.

Snap out flap (1) in direction of arrow and remove.

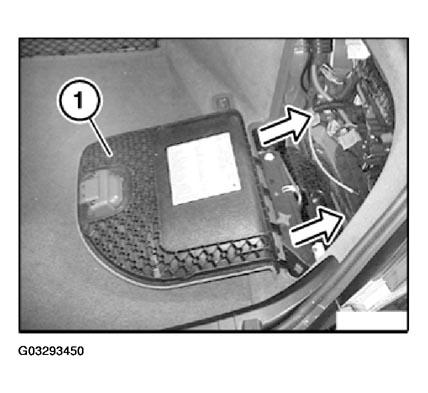

Fig 3: Removing Flap
G03293450Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of flap (4) must not be damaged or missing:

  1. Mountings.
  2. Lock.
  3. Screws.

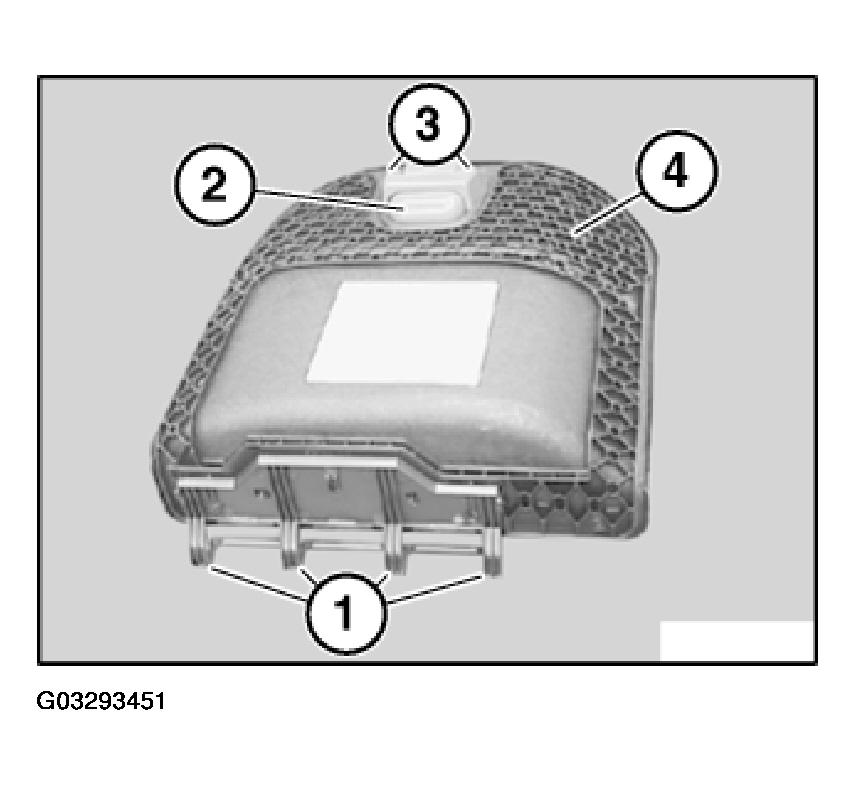

    Fig 4: View Of Mountings, Screws And Lock
    G03293451Courtesy of BMW OF NORTH AMERICA, INC.
