51 72 000 Replacing Mucket For Left Or Right Front Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front entrance cover strip. Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING ENTRANCE COVER STRIP, FRONT (INSIDE) LEFT OR RIGHT .

Release screw (1).

Remove ventilation grille (2) from B-pillar (3).

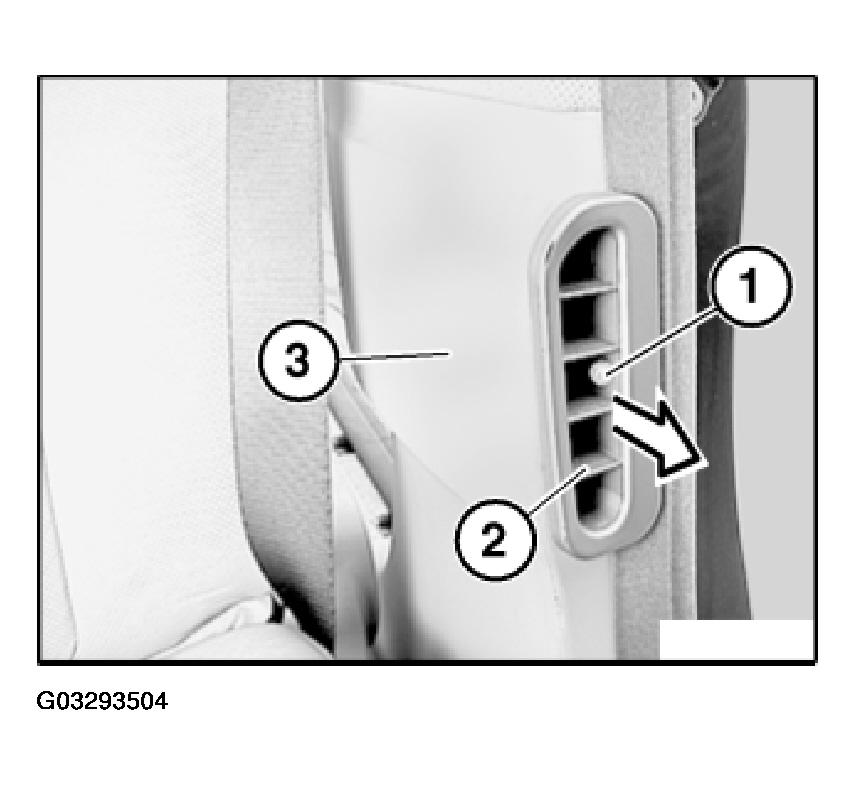

Fig 1: Removing Ventilation Grille From B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Detach mucket (1).

Installation:

Muckets (1) for left and right sides are identical parts and are distinguished by OR/OL markings.

OR marking for right side.
OL marking for left side.

Attach mucket (1) with OR or OL marking starting in area "A".

When installed, the location of joint of mucket (1) must be in area "B".

Pull off mounting cord starting in area "B".

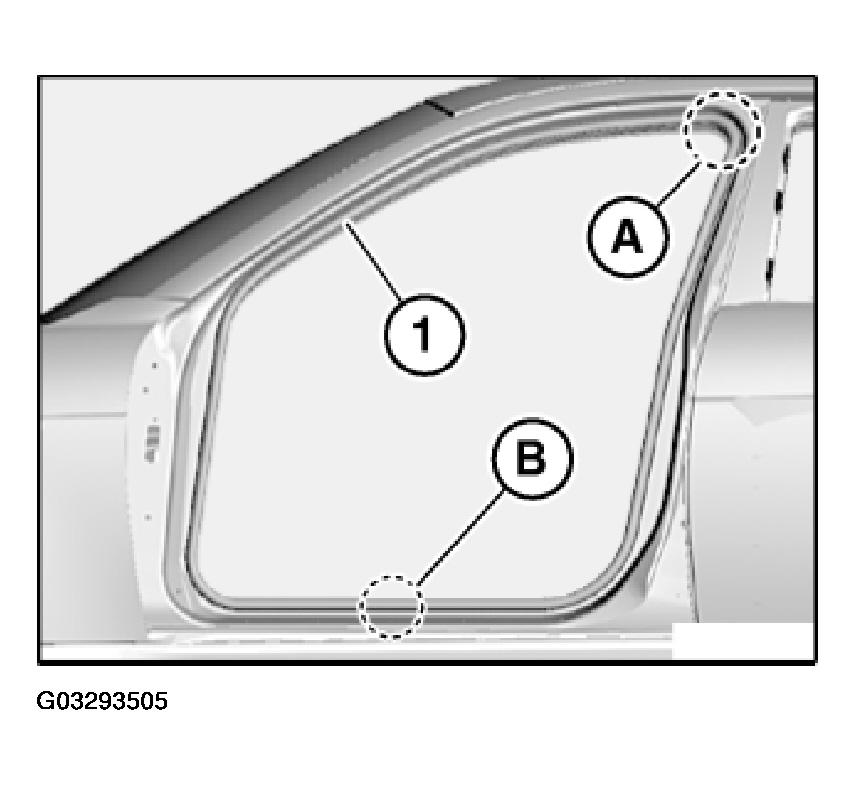

Fig 2: Detaching Mucket

Courtesy of BMW OF NORTH AMERICA, INC.
