51 14 110 Removing And Installing/Replacing Rear Model Designation (Up To 03/2005)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The "Instructions for number/letter combination cementing" serve as the basis for these repair instructions and must be followed without fail. Refer to 51 14... INSTRUCTIONS FOR ATTACHING NUMBER/LETTER DESIGNATION COMBINATION .

Fitting Dimensions (E65, E66, E67):

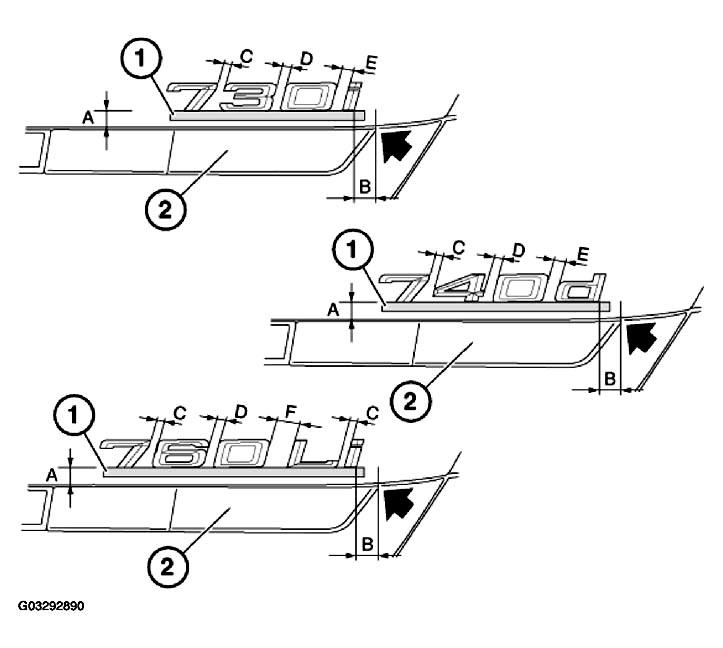

Fig 1: Identifying Fitting Dimensions (E65, E66, E67)

Courtesy of BMW OF NORTH AMERICA, INC.

Attach adhesive tape (1) to rear lid above rear fog light (2) up to top edge "A". Mark measurement "B" from outermost corner point of rear fog light (2) on adhesive tape (1).

Dimensions:

A = 16 mm.

B = 35 mm.

NOTE: Measurements C, D, E and F are for information purposes only, as determined by carrier film. C = 8 mm, D = 10 mm, E = 16 mm, F = 26 mm.
