51 14 008 Replacing (Removing And Installing) Number/Letter Combination On Front Left Or Right Side Panel
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The "Instructions for number/letter combination cementing" serve as the basis for these repair instructions and must be followed without fail. Refer to 51 14... INSTRUCTIONS FOR ATTACHING NUMBER/LETTER DESIGNATION COMBINATION .
NOTE:
Procedure is also mandatory for right side, outer edge of number is then positioned.
NOTE:

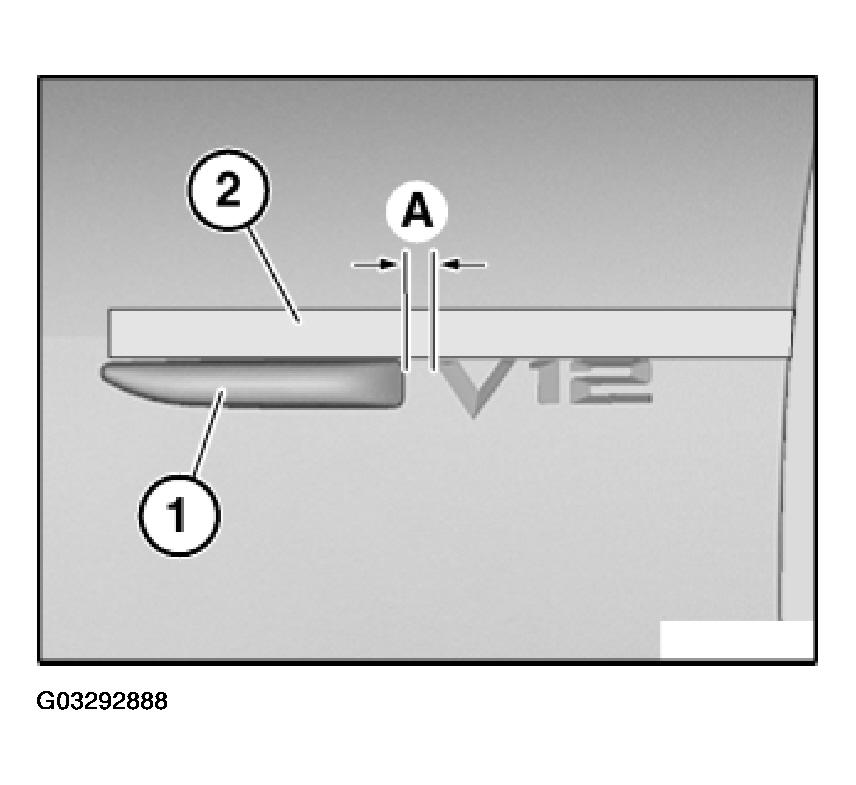

Number/letter combination is stuck on at a height level with turn indicator (1).
Stick on adhesive tape (2) horizontally above turn indicator (1).
Mark measurement "A" of turn indicator (1).
- Measurement "A" left 12 mm.
- Measurement "A" right 11 mm.
Remove liner (protective strip for adhesive surface).
Position number/letter combination up against adhesive tape (2) and at measurement "A" and press down firmly.
Remove carrier film.
