51 14 000 Removing And Installing/Replacing Front BMW Badge

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 318

Lever out badge with special tool 00 9 318 and remove towards top.

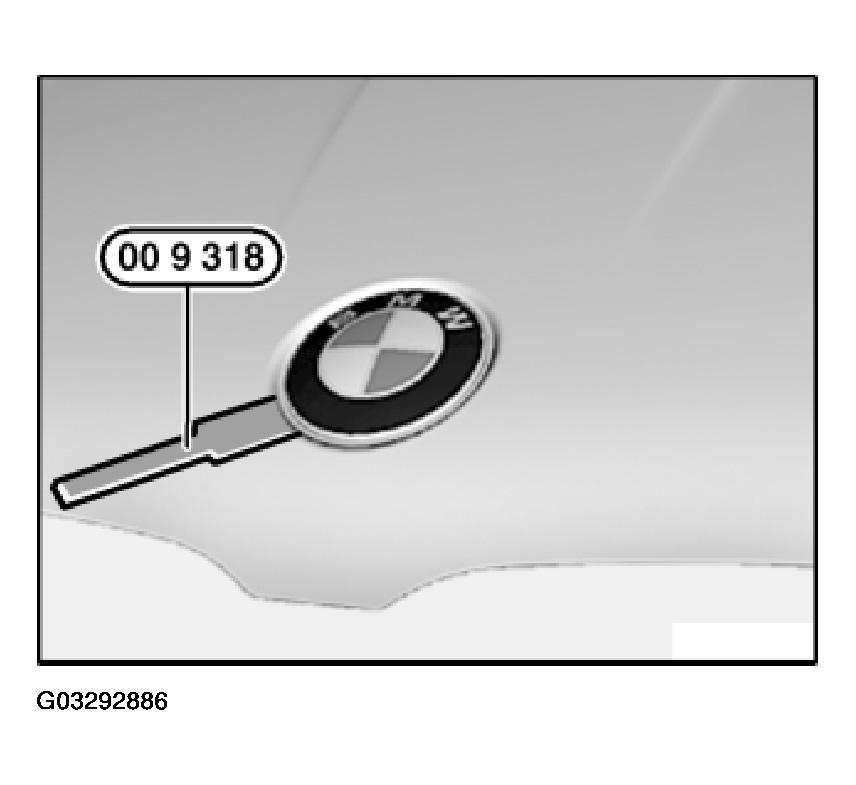

Fig 1: Removing Badge With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of badge (1) must not be damaged or missing:

2) Guide pins.

3) Grommets.

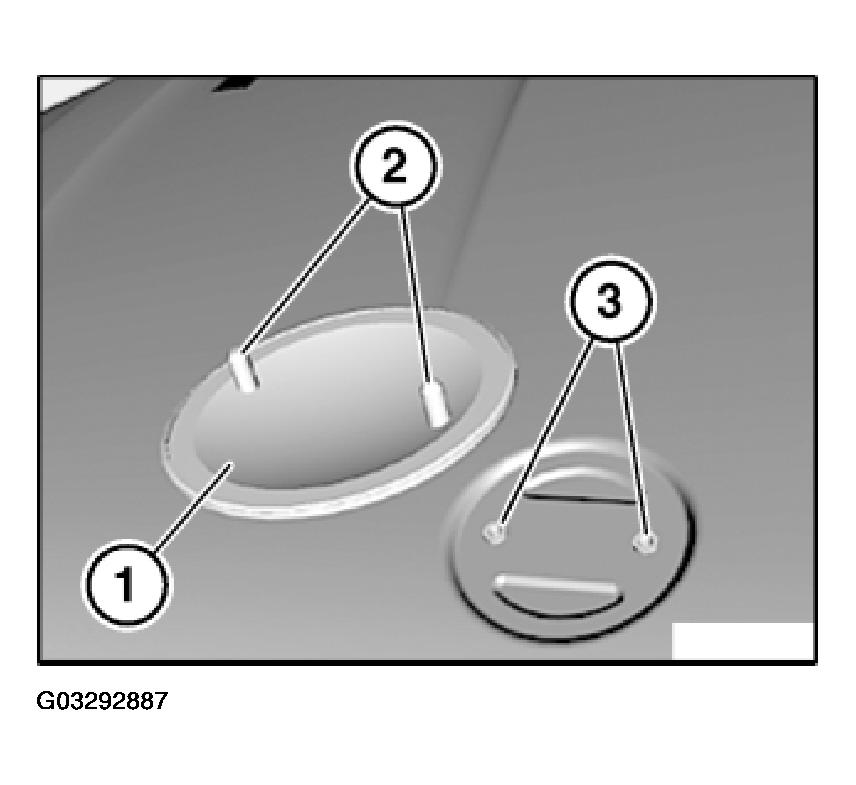

Fig 2: Identifying Guide Pins And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.
