61 36 540 Replacing Relay For Air Supply Unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Extreme cleanliness must be ensured in area of air line connections during removal and installation. Even the smallest of dirt particles can cause leakage in the system.

Necessary Preliminary Tasks:

Pull fuse for control unit.
Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
Remove spare wheel.

IMPORTANT: Do not kink, twist or crush pipes.

Unfasten screws.

Tightening torque, (9 N.m.).

Turn air supply system over.

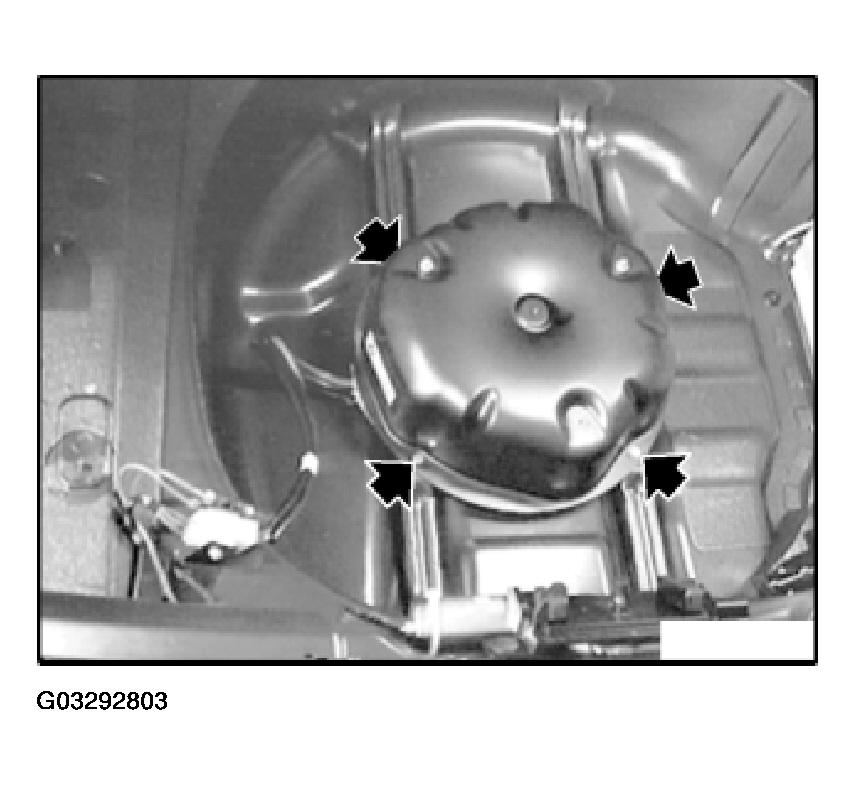

Fig 1: Removing Air Supply System Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach relay (1).

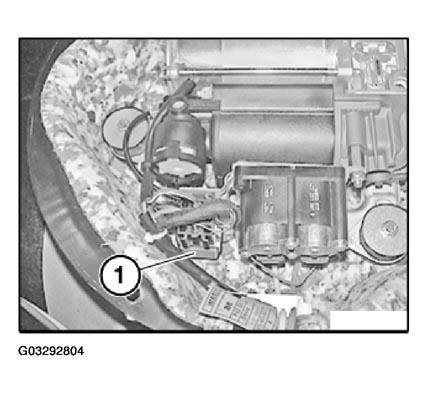

Fig 2: Detaching Air Supply System Relay

Courtesy of BMW OF NORTH AMERICA, INC.
