37 22 540 Replacing Air Supply Unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Danger of injury! Drain the air spring system before carrying out any work on the air supply unit, air pipes and air spring struts! Danger of injury if this instruction is not complied with! Risk of damage! Extreme cleanliness must be ensured in the connection area of the pipes during removal and installation. Even the smallest of dirt particles can cause leakage in the air spring system.
NOTE:
Read and comply with notes on air spring system. Refer to 37 00 ... NOTES ON AIR SPRING SYSTEM
.
After installation:
- Activate and fill air suspension system. Refer to 37 00 100 DRAINING/FILLING AIR SPRING SYSTEM .
Necessary Preliminary Tasks:
- Deactivate and drain air spring system. Refer to 37 00 100 DRAINING/FILLING AIR SPRING SYSTEM .
- Remove spare wheel.
IMPORTANT:
Do not kink, twist or crush lines.

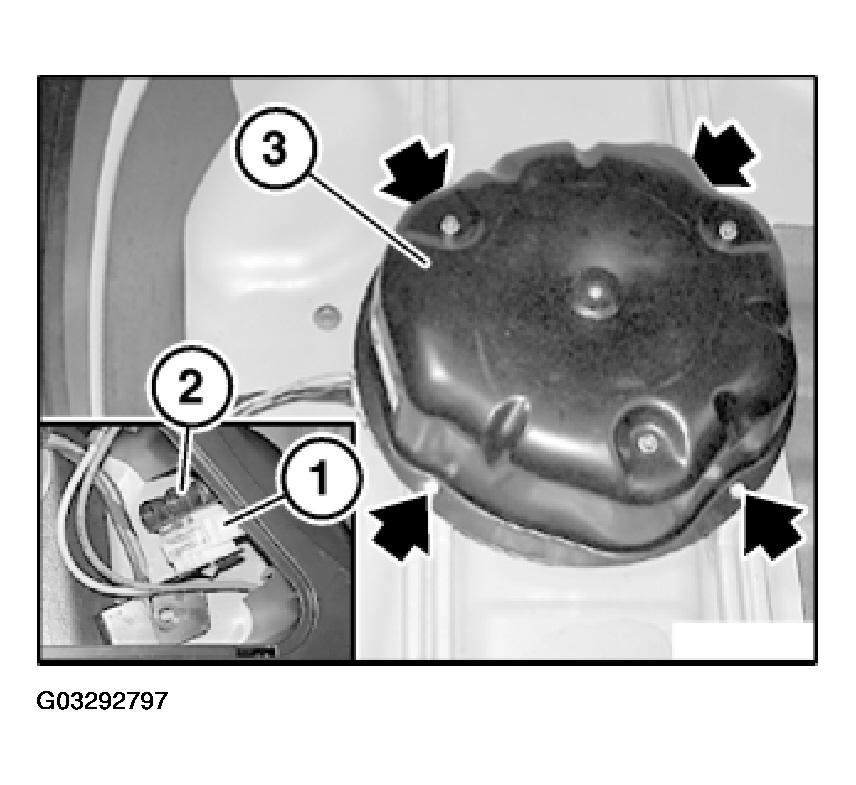

Unclip plug housing (1) and pipe connection (2).
Expose wiring air supply unit wiring harness up to air supply unit (3).
Unfasten screws.
Tightening torque, (9 N.m.).
Remove air supply unit (3).
