Filling Air Spring System:
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:

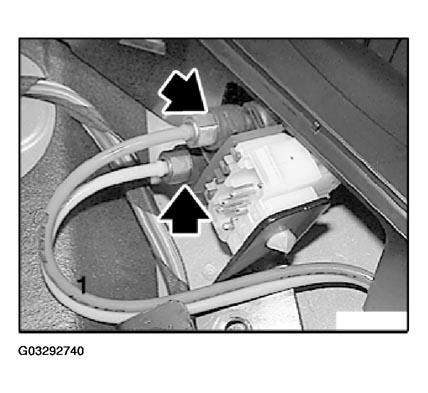

To avoid incorrect activation of the air spring struts, do mix up the pipes at the air supply unit connection.
Line, air spring strut, left: "Red".
Line, air spring strut, right: "Blue".
- Check banjo bolt(s) for dirt, clean if necessary.
- Carefully screw in banjo bolt(s) by hand to avoid damaging the plastic thread and with it the air supply unit.
Tightening torque, (2 N.m.).

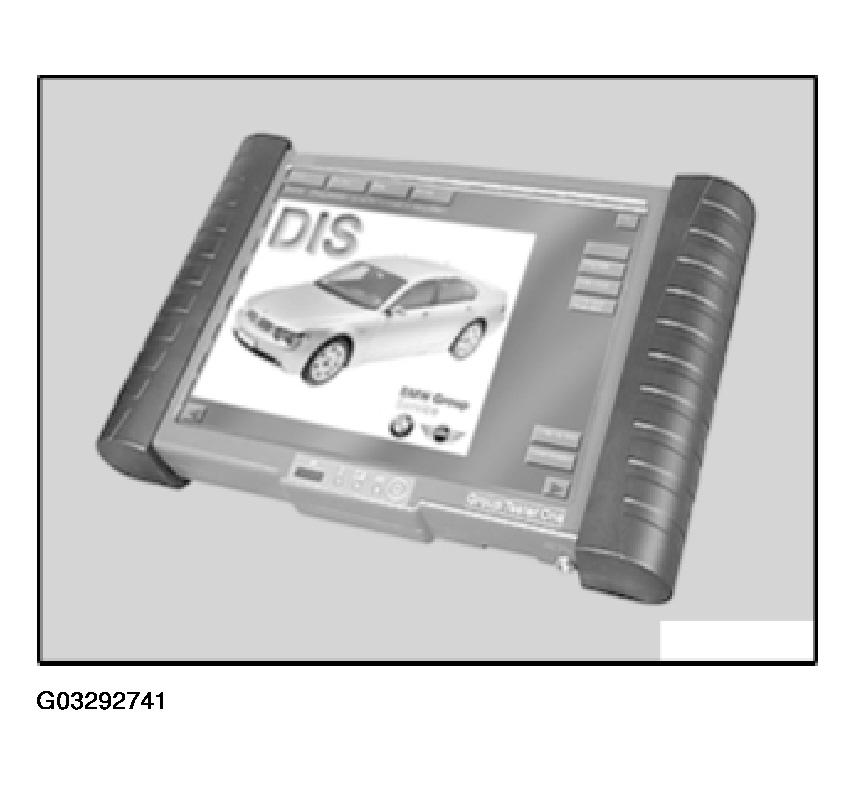

- Connect BMW diagnosis system.
- Switch ignition on.
- Fill rear left and/or right air spring strut using the BMW diagnosis system (control unit functions: activate menu items "Fill rear left/right air spring" once).
- Lower vehicle.
- Reinstall removed parts.
