37 10 005 Removing And Installing/Replacing Vent Hose (Up To 06/2003) For Active Stabilizer (Front)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front assembly underside protection. Refer to 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION .

Release banjo bolts (2) and remove vent hose on both sides.

Tightening torque, (5 N.m.).

Disconnect vent hose from Y-distributor.

Unscrew vent valves (1) from oscillating motor.

Installation:

If necessary, fit new vent valves.

Tightening torque, (14 N.m.).

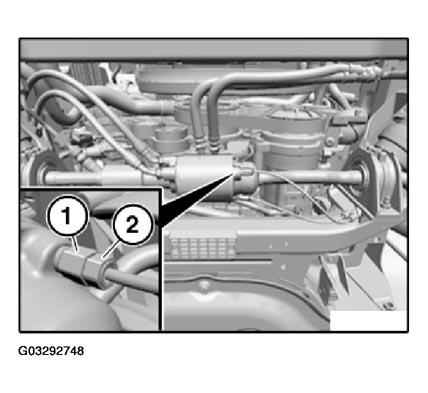

Fig 1: Locating Banjo Bolts And Vent Valves

G03292748

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove design cover.

Withdraw filter from member.

Expose vent hose up to Y-distributor and remove.

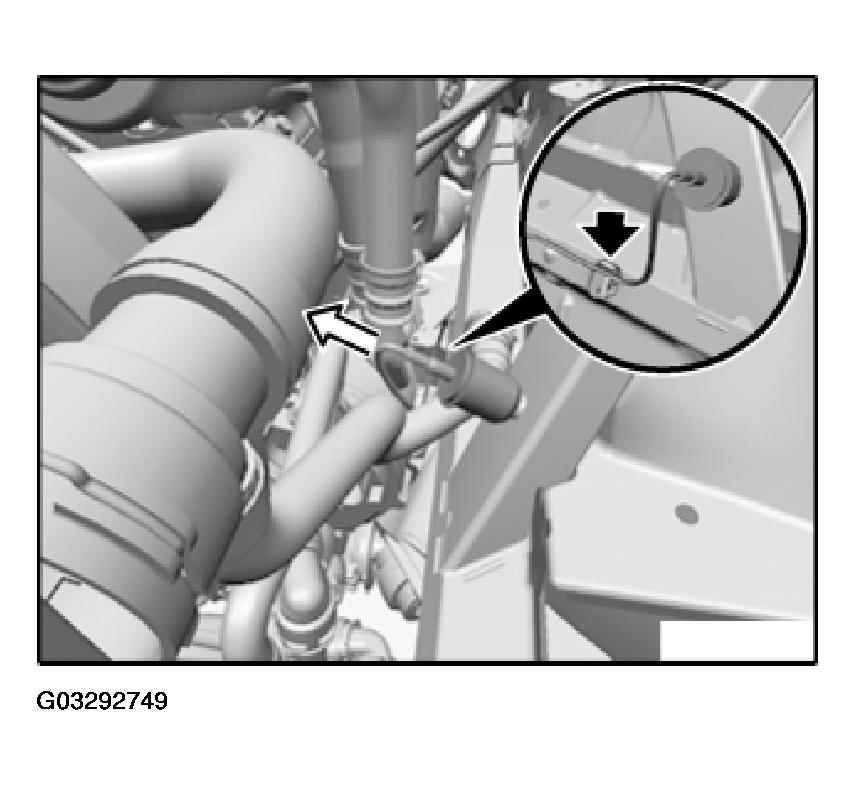

Fig 2: View Of Vent Hose Up To Y-Distributor

G03292749

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing Vent Valve:

Screw vent valve (1) fully into oscillating motor and remove plug.

Slide vent hose (2) into vent valve (1) up to second marking (M).

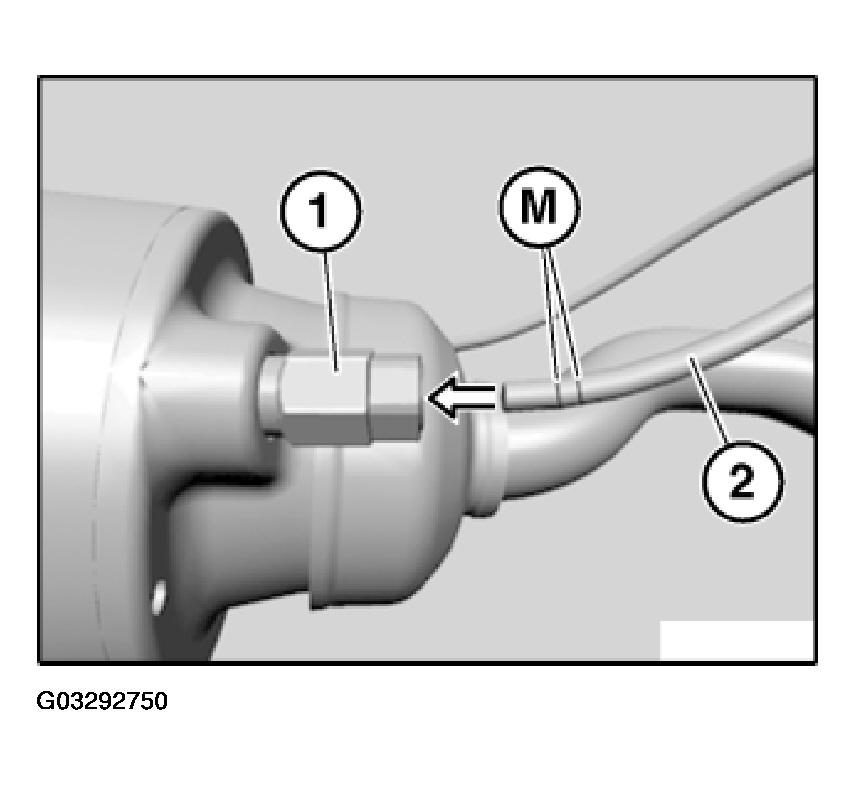

Fig 3: Sliding Vent Hose Into Vent Valve

G03292750

Courtesy of BMW OF NORTH AMERICA, INC.
