37 10 005 Removing And Installing/Replacing Vent Hose (From 06/2003) For Active Stabilizer (Front)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front assembly underside protection. Refer to 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .

Release banjo bolts (2) and remove vent hose (3).

Tightening torque, (5 N.m.).

Disconnect vent hose (3) from Y-distributor.

Unscrew vent valves (1) from oscillating motor.

Installation:

If necessary, fit new vent valves.

Tightening torque, (14 N.m.).

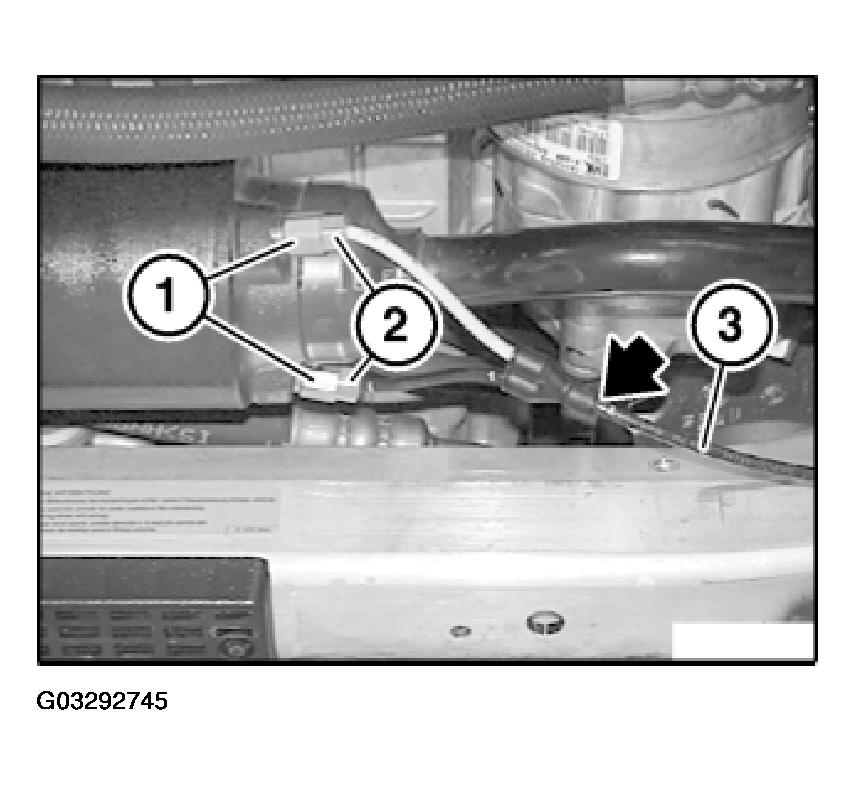

Fig 1: Releasing Banjo Bolts Of Vent Hose

G03292745

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1) and pull filter out of front axle carrier.

Expose vent hose (2) up to Y-distributor and remove.

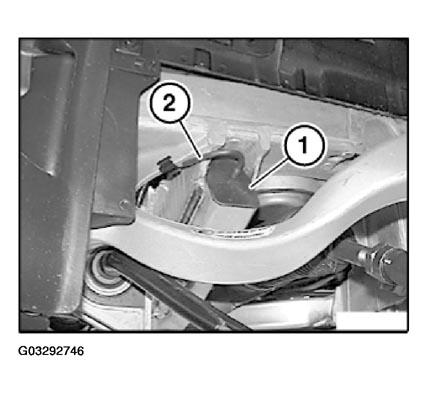

Fig 2: Locating Vent Hose Up To Y-Distributor

G03292746

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing Vent Valve:

Screw vent valve (1) fully into oscillating motor and remove plug.

Slide vent hose (2) into vent valve (1) up to second marking (M).

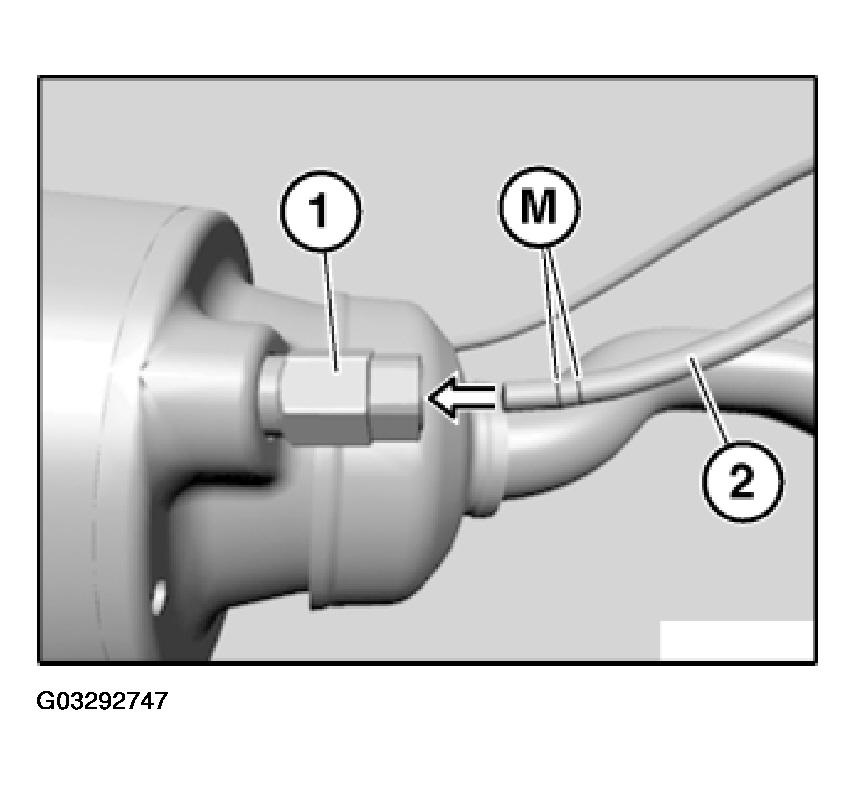

Fig 3: Sliding Vent Hose Into Vent Valve

G03292747

Courtesy of BMW OF NORTH AMERICA, INC.
