37 15 055 Removing And Installing/Replacing EDC Control Unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Comply with notes and instructions on handling fiber-optic cables. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .
After installation:
- Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
Necessary Preliminary Tasks:
- Remove glovebox. Refer to 51 16 367 REMOVING AND INSTALLING RIGHT GLOVEBOX (WITH ACTIVE KNEE PROTECTOR) WITH HOUSING .
- Remove fuse box from instrument panel carrier.

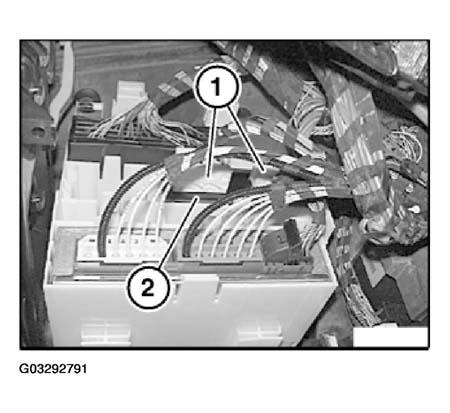

Disconnect both plug connections (1).
If necessary, disconnect plug connections of other control units and tie up wiring assemblies.
Remove main wiring harness from A-pillar and pull a little towards rear.
Unclip EDC control unit (2) and remove towards rear.
