37 14 511 Replacing Front Ride-Height Sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe safety instructions for raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection)! Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove underbody protection. Refer to 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION and 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
If necessary, remove right steering gear cover.

Disconnect plug connection (1).

Release nut (2) and disconnect control rack.

Installation:

Replace self-locking nut.

Tightening torque, (9 N.m.).

Release screws (3) and remove ride-height sensor from bracket.

Tightening torque, (5 N.m.).

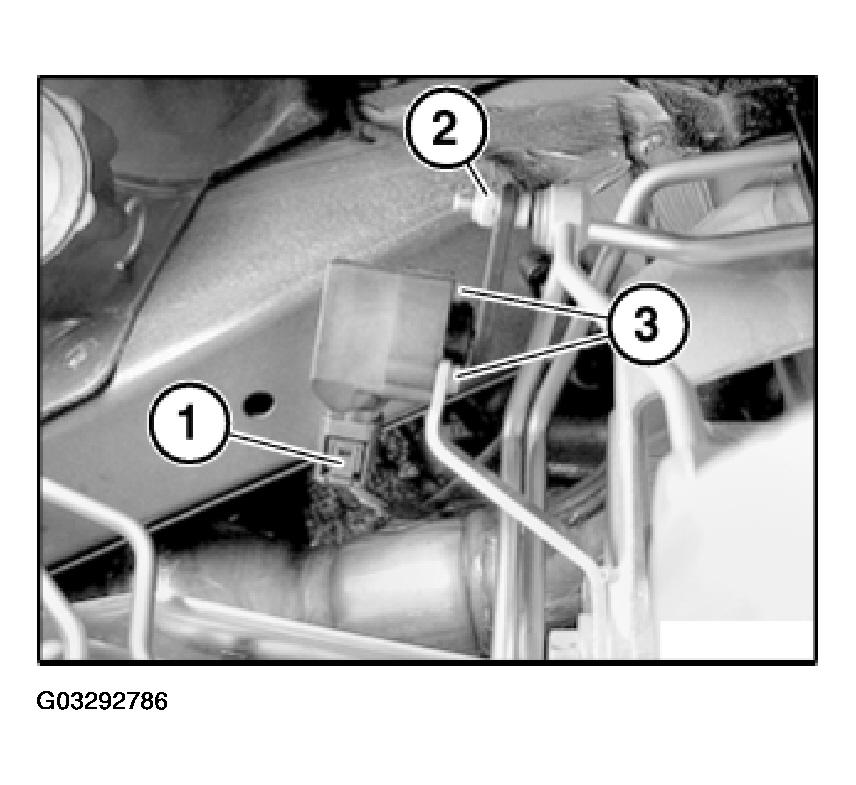

Fig 1: Removing Ride-Height Sensor Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check headlight adjustment, correct if necessary. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
