37 14 027 Removing And Installing/Replacing Rear Mounted Acceleration Sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary Preliminary Tasks:
- Detach rear right wheel arch cover partially (in rear area) and swing right support to one side. Refer to 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER .

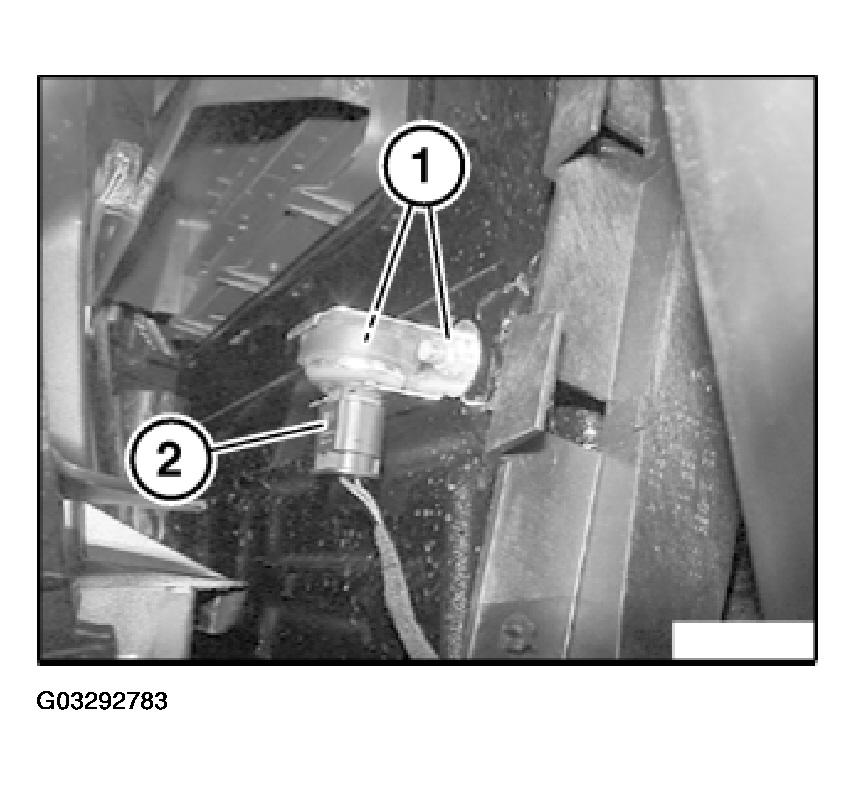

Unscrew nuts (1).
Disconnect plug connection (2).
Remove rear mounted acceleration sensor.
