Fitting New Screw Connection:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Insert complete new screw connection consisting of toothed ring (1), banjo bolt (2) and assembly plug (3) into air spring strut/pipe (air spring to air reservoir)/pipe connection of air supply unit.

Tightening torque, (2 N.m.).

Remove assembly plug (3).

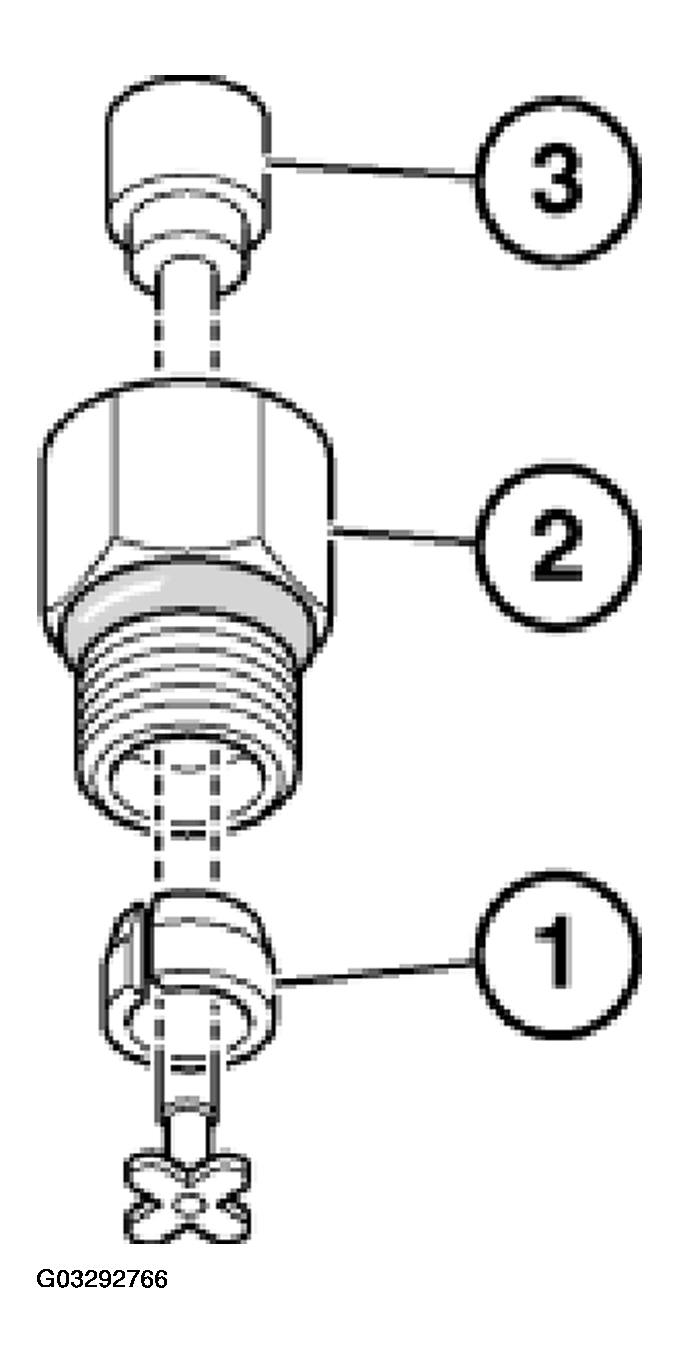

Fig 1: Exploded View Of Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Slide new pipe (1) into banjo bolt (2) up to marking.

Check installation position of pipe (1) by pulling back slightly.

NOTE: The toothed ring (3) has engaged correctly when the pipe (1) cannot be pulled back.

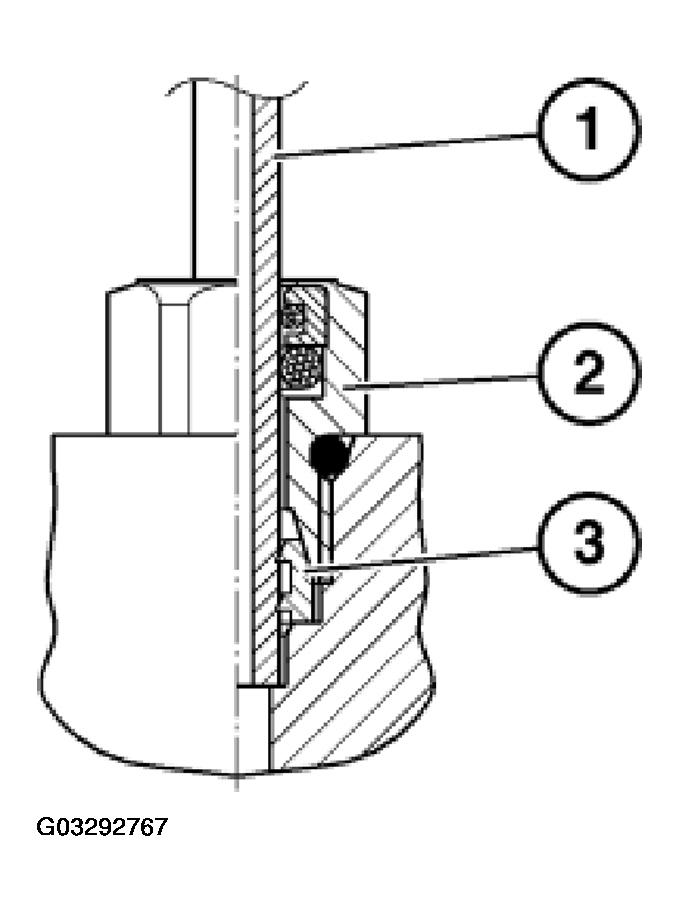

Fig 2: Sectional View Of Pipe And Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
