36 11 527 Removing And Installing/Replacing Rear Receiving Antenna For RDC

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Operations for removing and installing receiving antenna at rear left or right are identical.

Remove rear left or right wheel arch trim.

NOTE: Holder with receiving antenna is detached by removal of wheel arch trim.

Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

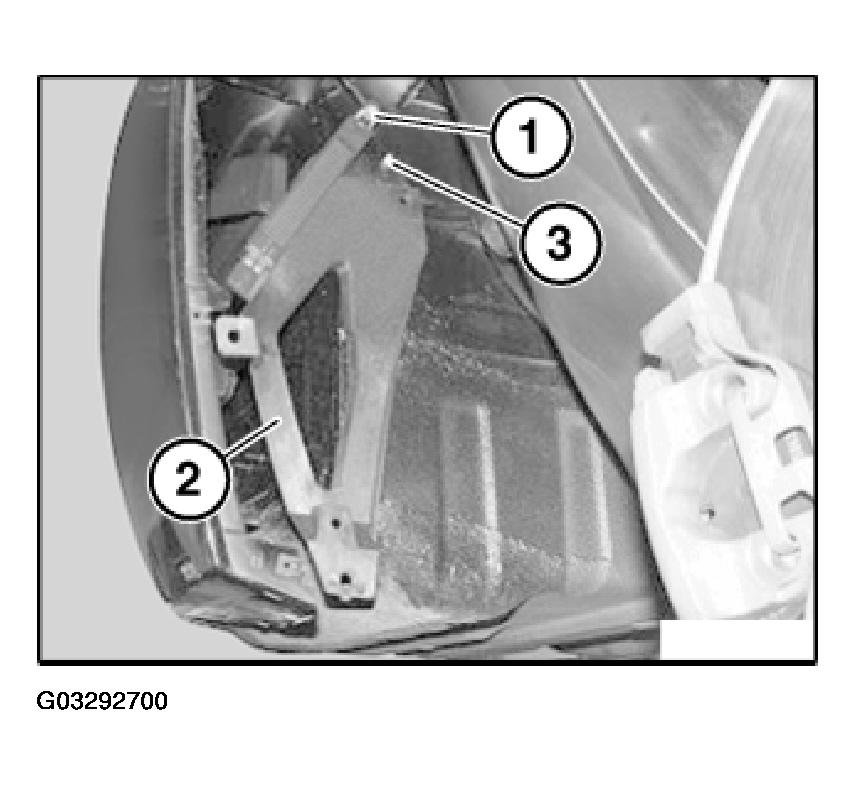

Unlock plug (1) and disconnect.

Detach receiving antenna with fixture (2) from threaded pin (3).

Fig 1: Receiving Antenna Plug, Fixture And Threaded Pin

Courtesy of BMW OF NORTH AMERICA, INC.

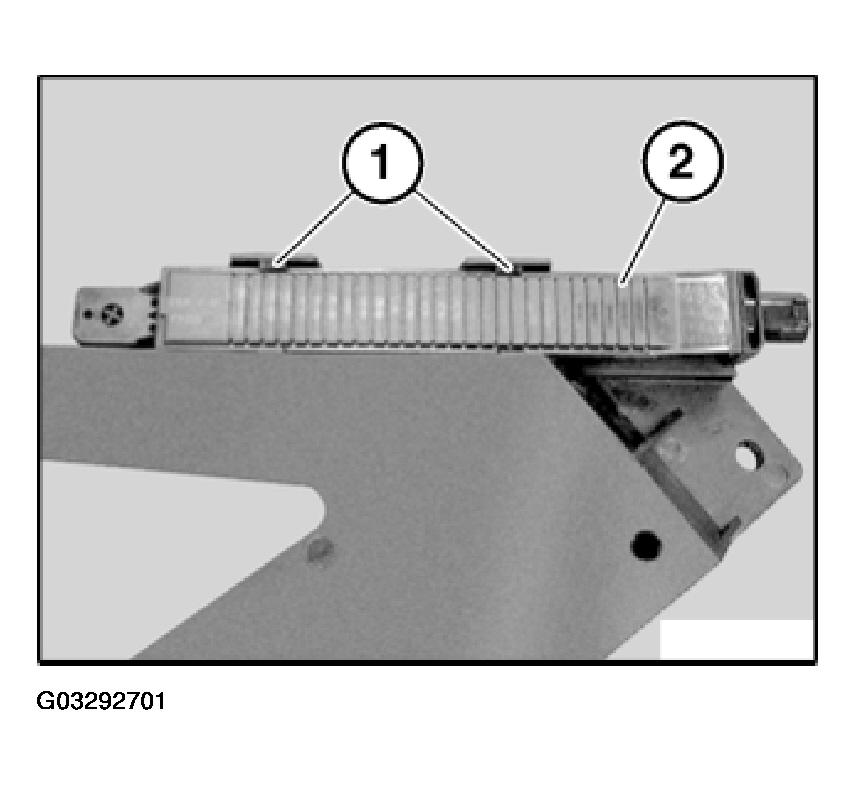

Unlock retaining lugs (1) and unclip receiving antenna (2).

Fig 2: Retaining Lugs And Receiving Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
