36 11 522 Removing And Installing/Replacing Front Receiving Antenna For RDC

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

Front Left:

Remove front left wheel arch trim (1).

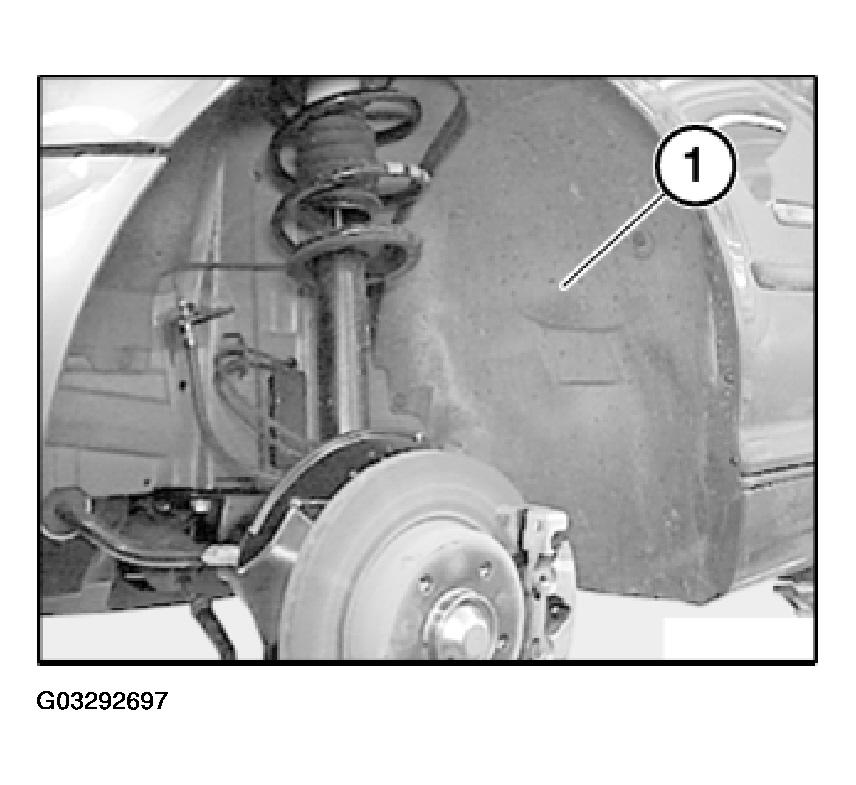

Fig 1: Front Left Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Front Right:

Partially detach front right wheel arch trim (1).

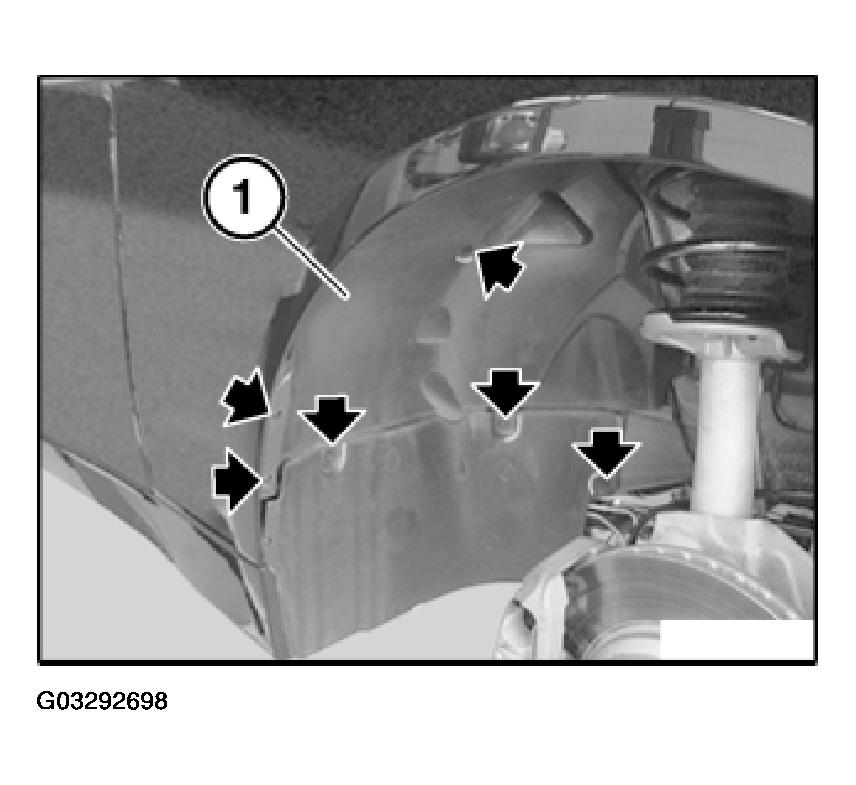

Fig 2: Front Right Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Operations for removing and installing receiving antenna at front left or right are identical.

Unfasten plug connection (1) and disconnect.

Slacken screw (2) and remove receiving antenna (3) to left or right.

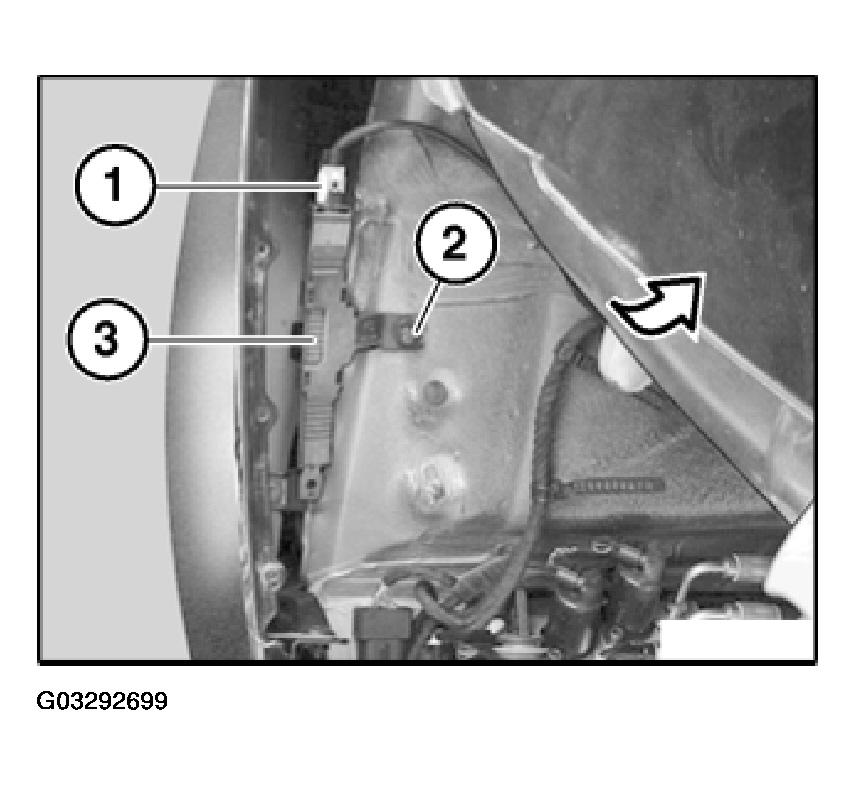

Fig 3: Plug Connection, Screw, Receiving Antenna And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
