36 11 520 Removing And Installing/Replacing RDC Control Unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove glovebox. 51 16 367 REMOVING AND INSTALLING RIGHT GLOVEBOX (WITH ACTIVE KNEE PROTECTOR) WITH HOUSING .

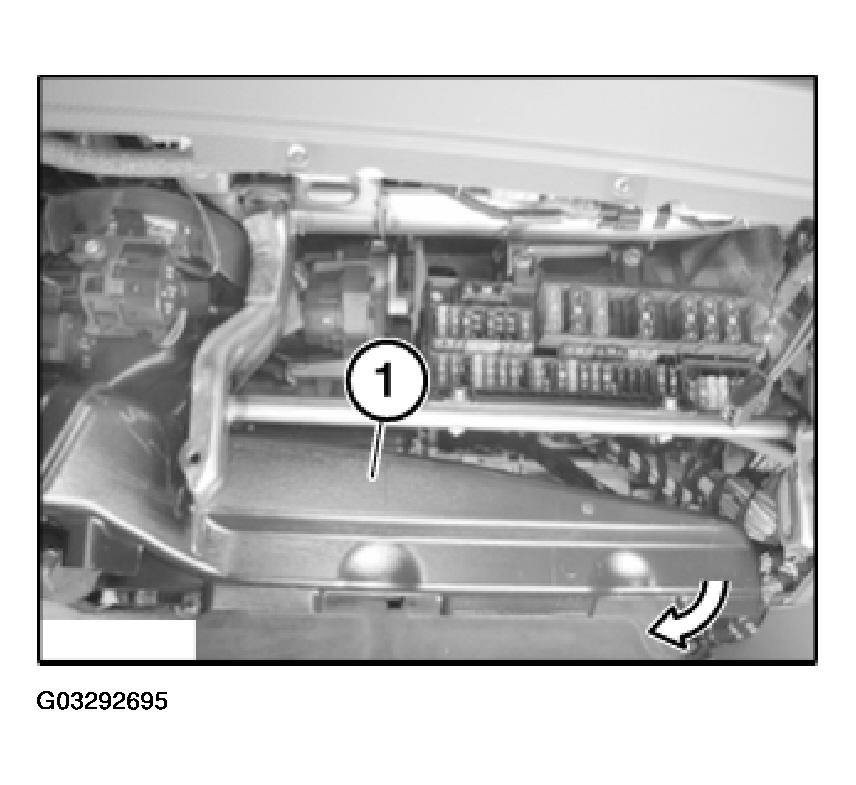

Lower duct (1) for footwell ventilation.

Fig 1: Footwell Ventilation Lower Duct And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

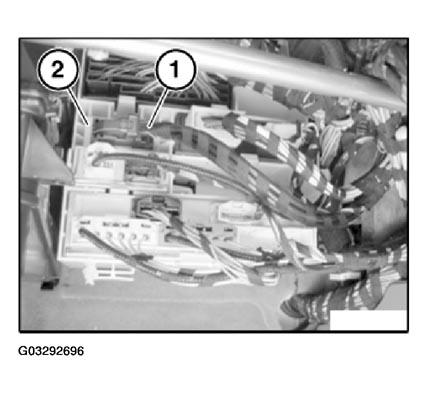

Unlock plug connection (1) and remove RDC control unit (2).

Fig 2: Plug Connection And RDC Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
