36 10 713 Checking One Road Wheel On Balancing Machine For Face And Radial Runout (Wheel Removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see WHEEL AND TIRES - SPECIAL TOOLS .

Special Tools Required:

36 1 030
36 1 031
36 1 032
36 1 033
36 1 034
36 1 035
36 1 036

Necessary Preliminary Tasks:

Remove wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Mount wheel in balancing machine.

To avoid retooling errors, fit the wheel on the balancing machine in the same way as it is also fitted on the car (valve position facing down).

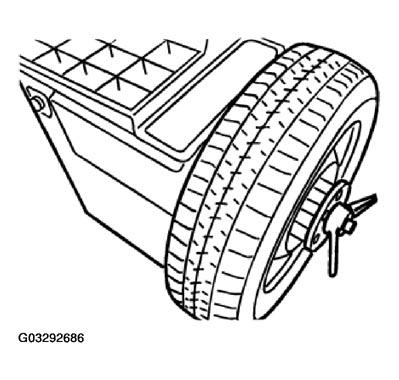

Fig 1: Mounting Wheel In Balancing Machine

G03292686

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel centering element supplied with corresponding balancing machine.

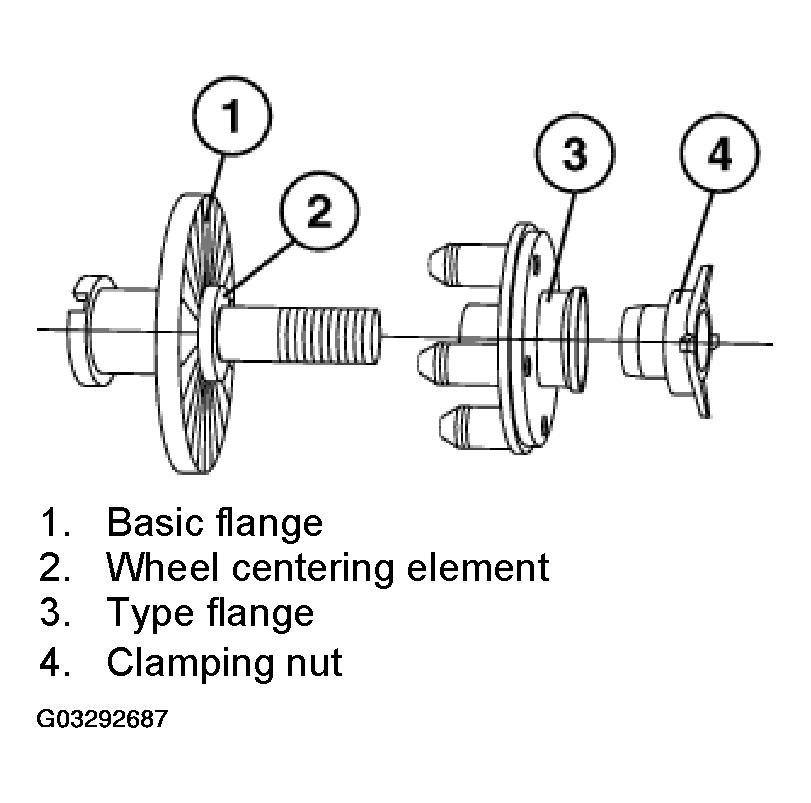

Fig 2: Wheel Centering Elements

G03292687

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 36 1 030 for testing.

Special tool 36 1 030 consists of:

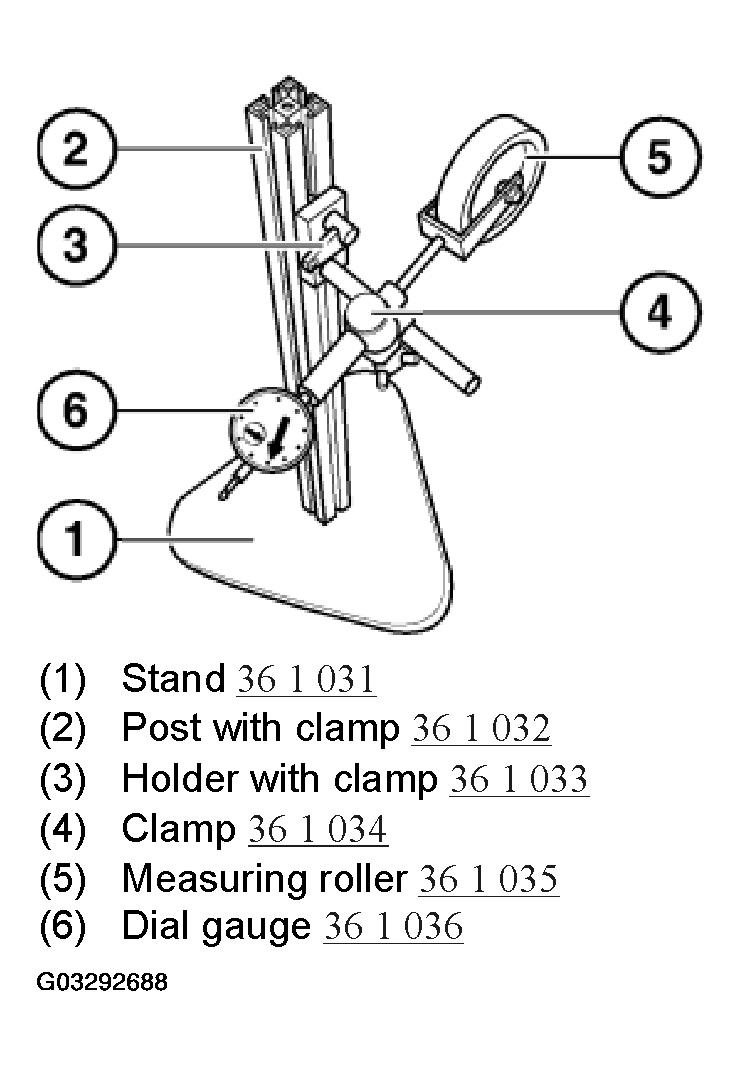

Fig 3: Vertical And Lateral Runout Tester Components

G03292688

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire tread.

Turn wheel by hand and measure max. radial tire runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

NOTE: Measuring device must be vertical to tire tread.

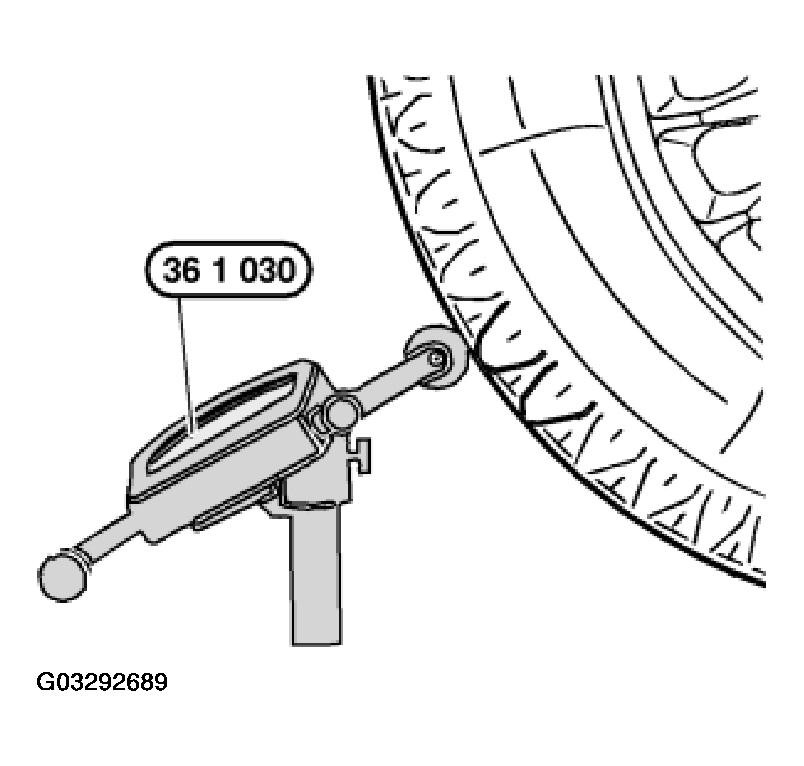

Fig 4: Special Tool (36 1 030) And Radial Tire Runout

G03292689

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire sidewall.

Turn wheel by hand and measure max. lateral tire runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

NOTE: Measuring device must be vertical to tire sidewall.

Never measure on printed text on tire!

If necessary, check disk wheel (rim) for radial and face runout. 36 10 715 CHECKING RIM FOR FACE AND RADIAL RUNOUT .

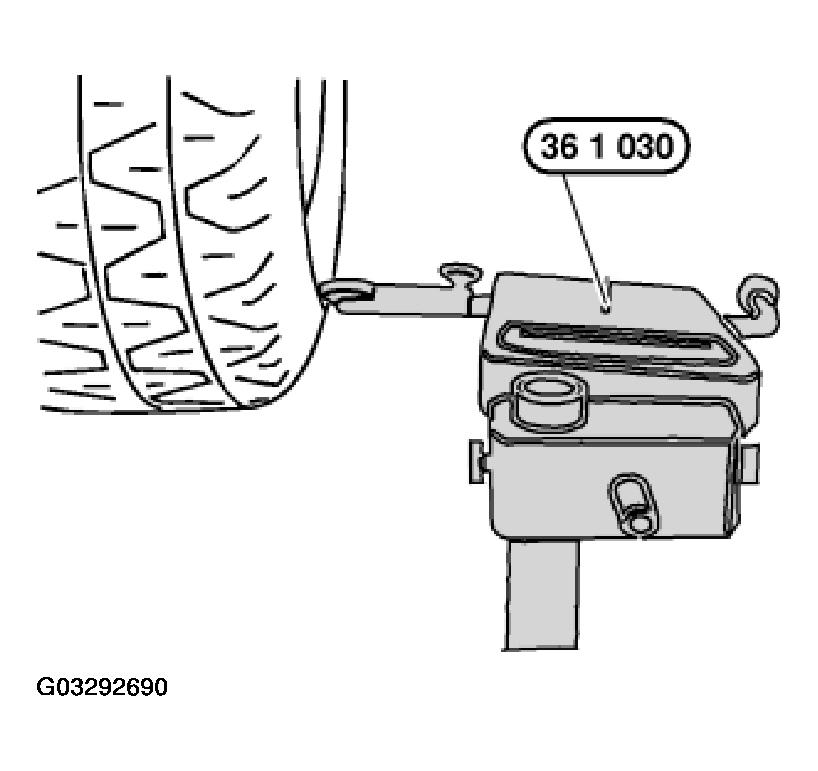

Fig 5: Special Tool (36 1 030) And Lateral Tire Runout

G03292690

Courtesy of BMW OF NORTH AMERICA, INC.
