36 10 209 Checking Front And Rear Wheel For Face And Radial Runout

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see WHEEL AND TIRES - SPECIAL TOOLS .

Special Tools Required:

36 1 030

Necessary Preliminary Tasks:

Check wheel bearings.

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

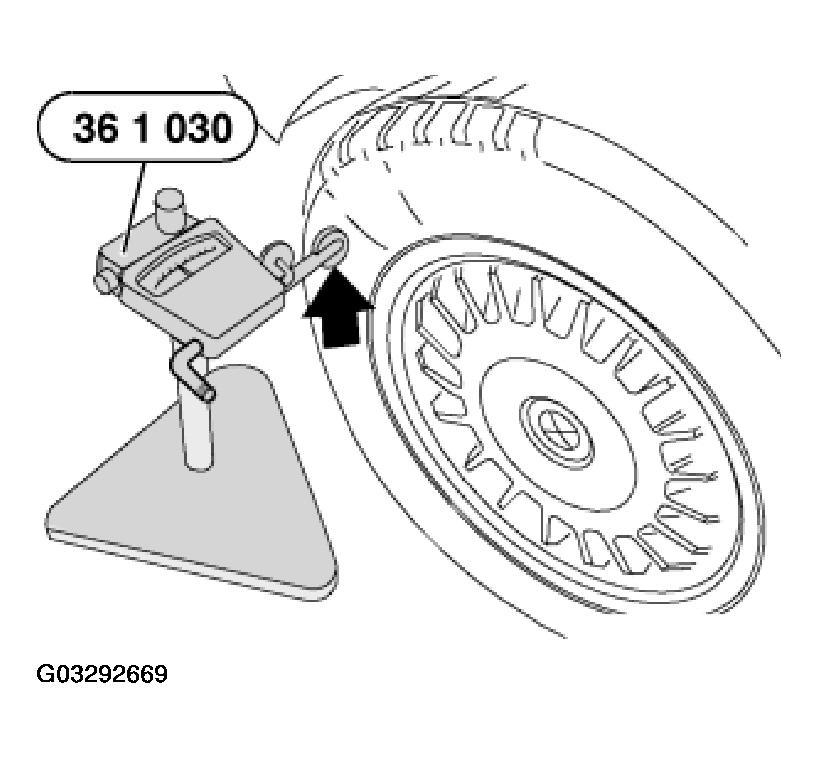

Fig 1: Special Tool (36 1 030) And Lateral Runout

G03292669

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

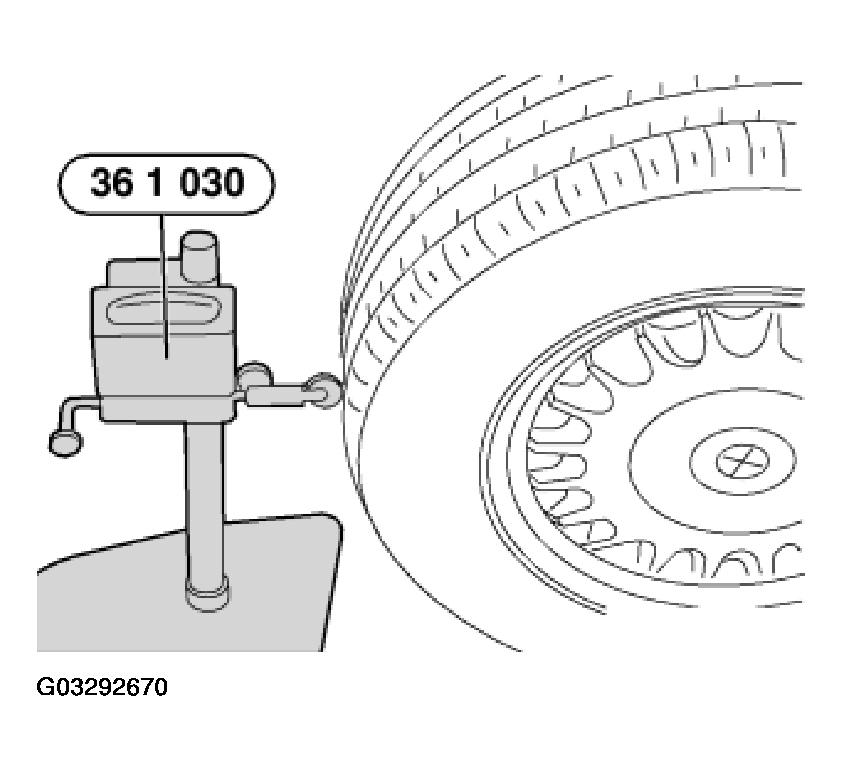

Fig 2: Special Tool (36 1 030) And Radial Runout

G03292670

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA .

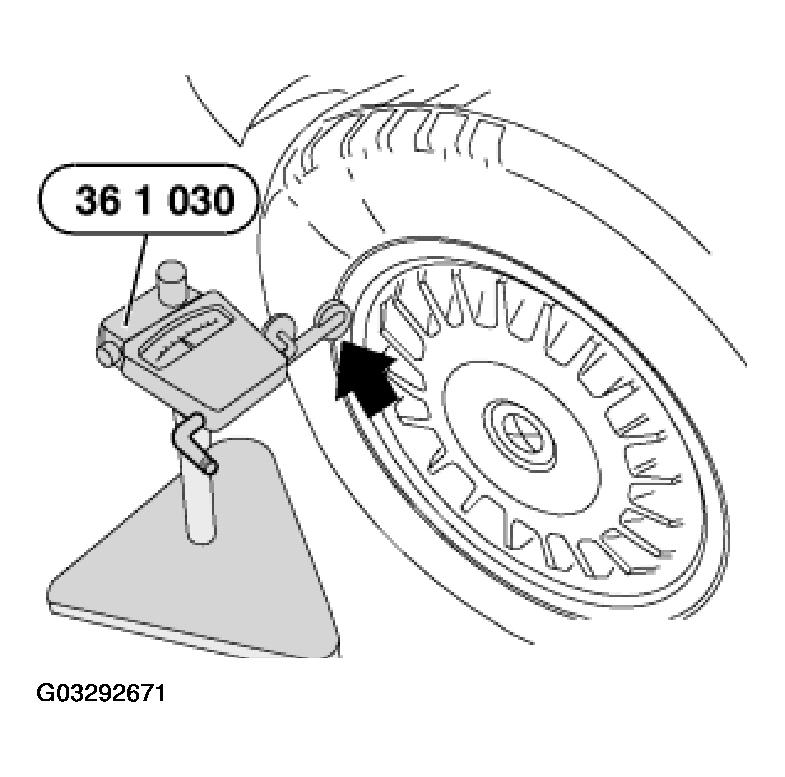

Fig 3: Special Tool (36 1 030) And Rim Lateral Runout

G03292671

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture).

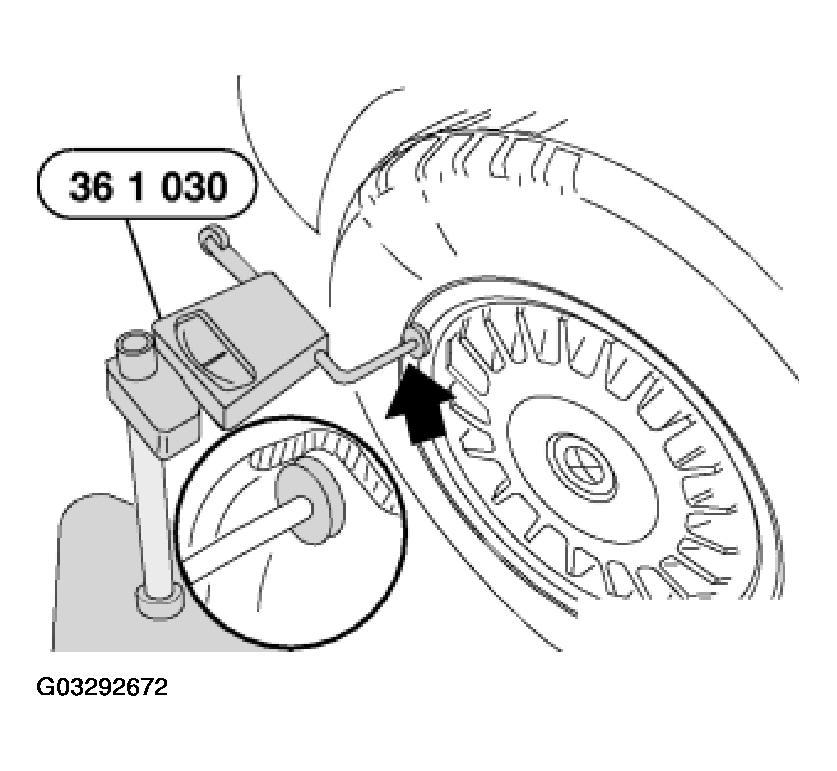

Fig 4: Special Tool (36 1 030) And Rim Radial Runout

G03292672

Courtesy of BMW OF NORTH AMERICA, INC.
