35 40 001 Removing And Installing/Replacing Accelerator Pedal Module
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

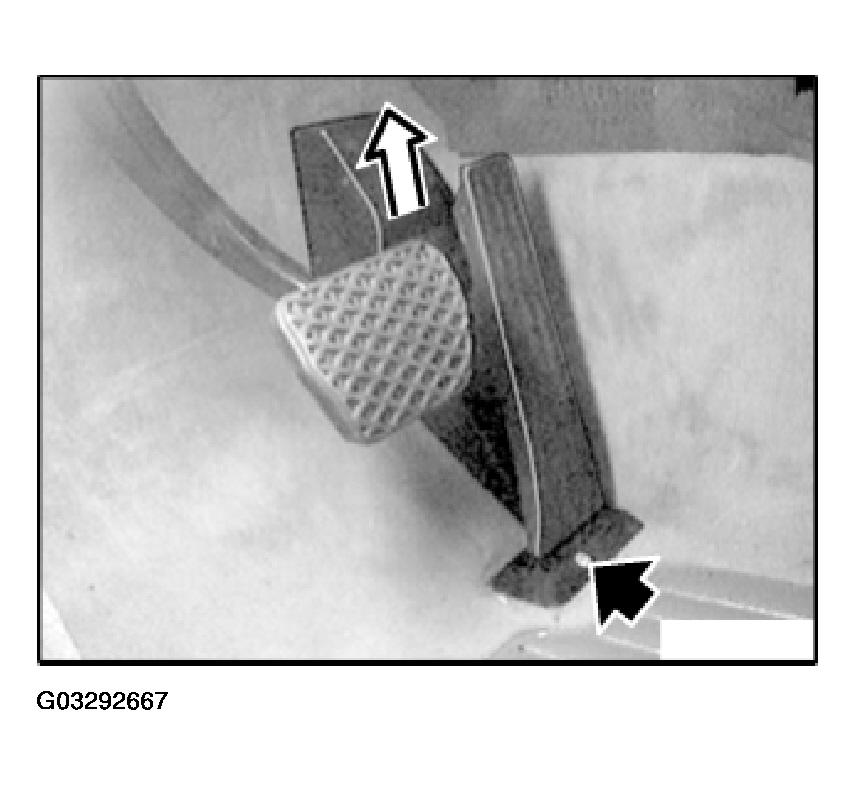

Unscrew screw.
Pull accelerator pedal module upwards out of fixture.
Installation:
Tightening torque, refer to 35 40 1AZ in PEDALS - TIGHTENING TORQUES .

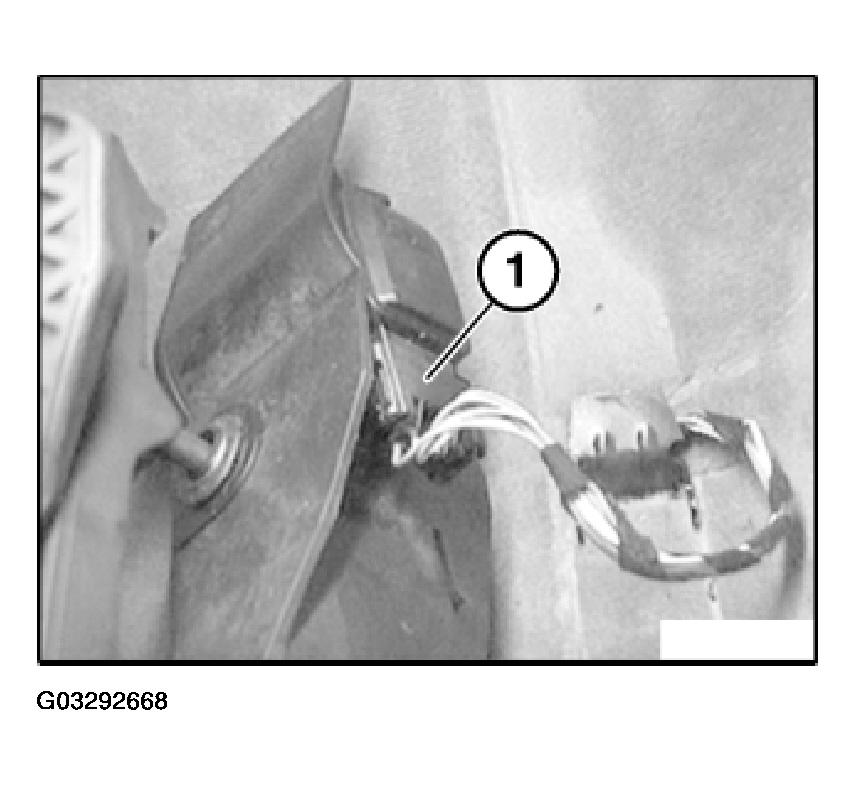

Pull off plug (1).
Remove accelerator pedal module.
IMPORTANT:
Accelerator pedal module can only be replaced completely with adapter plate.
