34 41 135 Removing And Installing Or Replacing Both Bowden Cables For Parking Brake

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with General Information. Refer to 34 00 ... GENERAL INFORMATION . With mechanical emergency release of actuating unit, max. torque at end stop 5 N.m. Bowden cables may only be replaced in pairs.

Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

Necessary Preliminary Tasks:

Remove both rear wheels. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
Remove brake discs. Refer to 34 21 320 REMOVING AND INSTALLING OR REPLACING BOTH REAR BRAKE DISCS .
Disconnect parking brake Bowden cables from wheel brake.
Unscrew holder for Bowden cables from body.
Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
E67:
Remove starter battery.

Release screws on parking brake housing cover and remove housing cover.

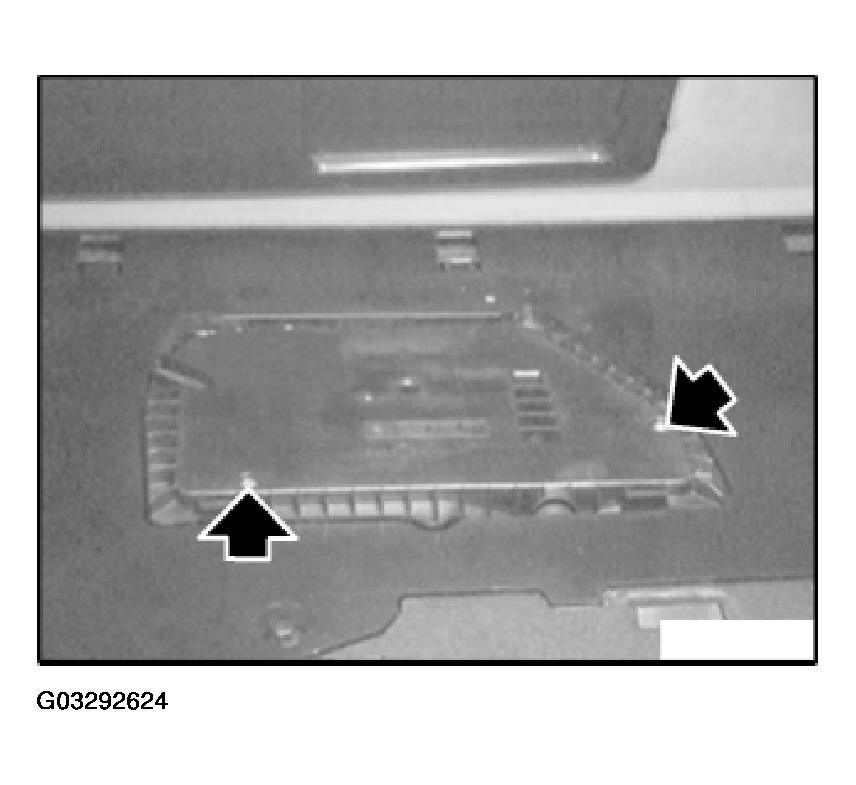

Fig 1: Locating Screws On Parking Brake Housing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 34 41 2AZ in BRAKES - TIGHTENING TORQUES .

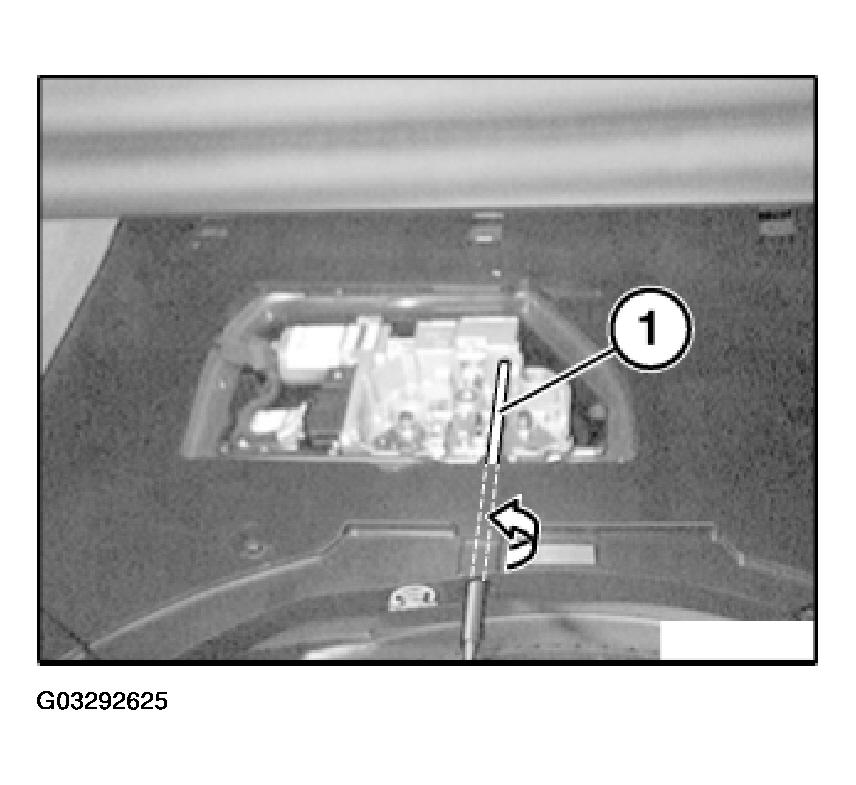

Release parking brake to just before end stop with emergency release tool (1) from on-board tool kit.

Fig 2: Identifying Emergency Release Tool

Courtesy of BMW OF NORTH AMERICA, INC.

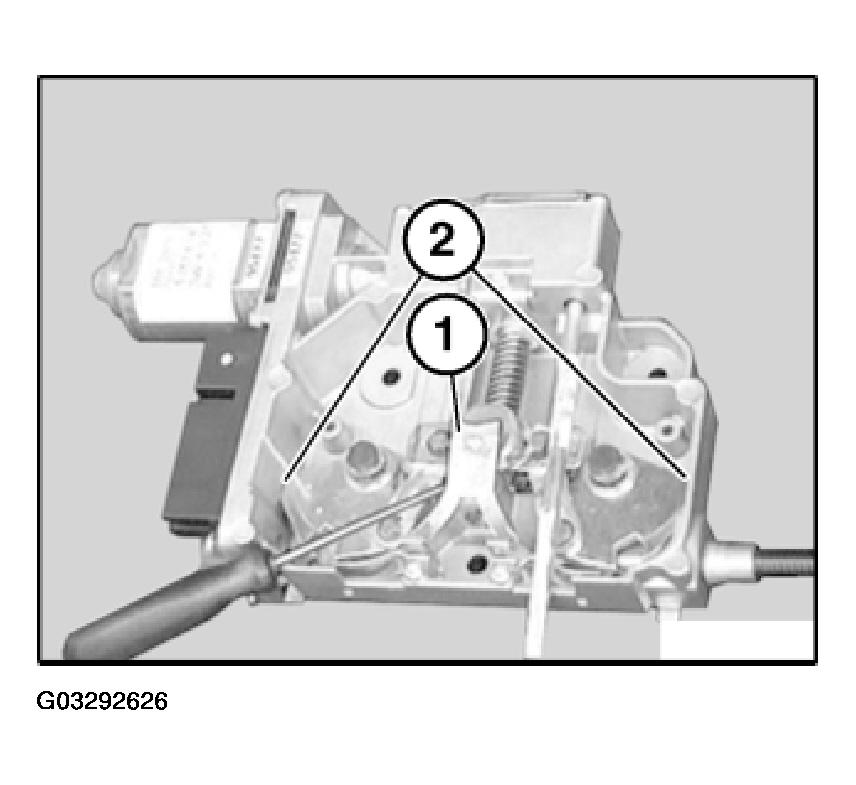

Raise end stop (1) with screwdriver.

Continue releasing parking brake with emergency release tool until assembly position is reached (cable pulleys rest on outer housing walls (2)).

Fig 3: Raising End Stop With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

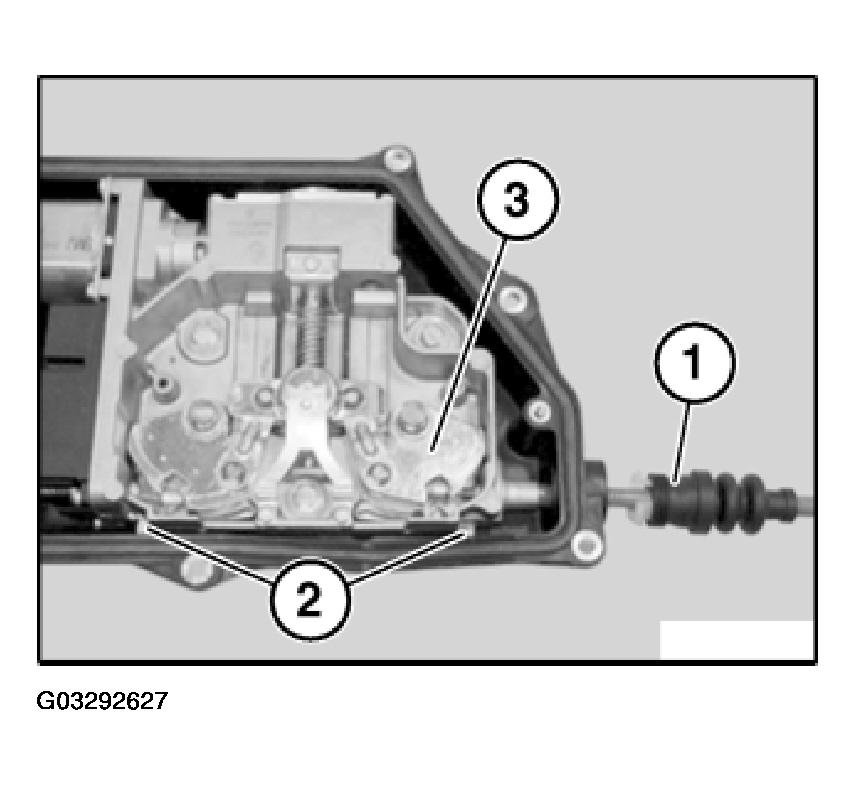

Unfasten gasket (1) and pull out of housing a little.

Press on tabs (2) with screwdriver in order to unlock Bowden cables.

Pull Bowden cable mountings out of parking brake housing a little.

Unhook Bowden cables from cable pulleys (3).

Remove Bowden cables from below.

Fig 4: Identifying Gasket, Tabs And Bowden Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

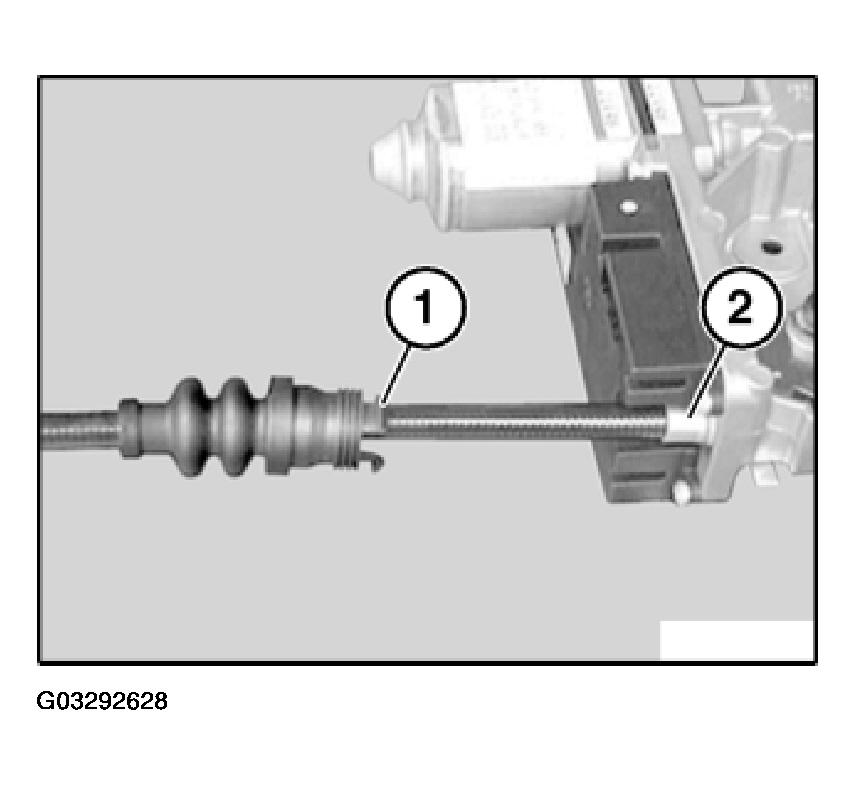

Tabs of seal (1) must engage in parking brake mounting tray. End sleeves of Bowden cables must engage in parking brake housing.

Fig 5: Locating Seal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

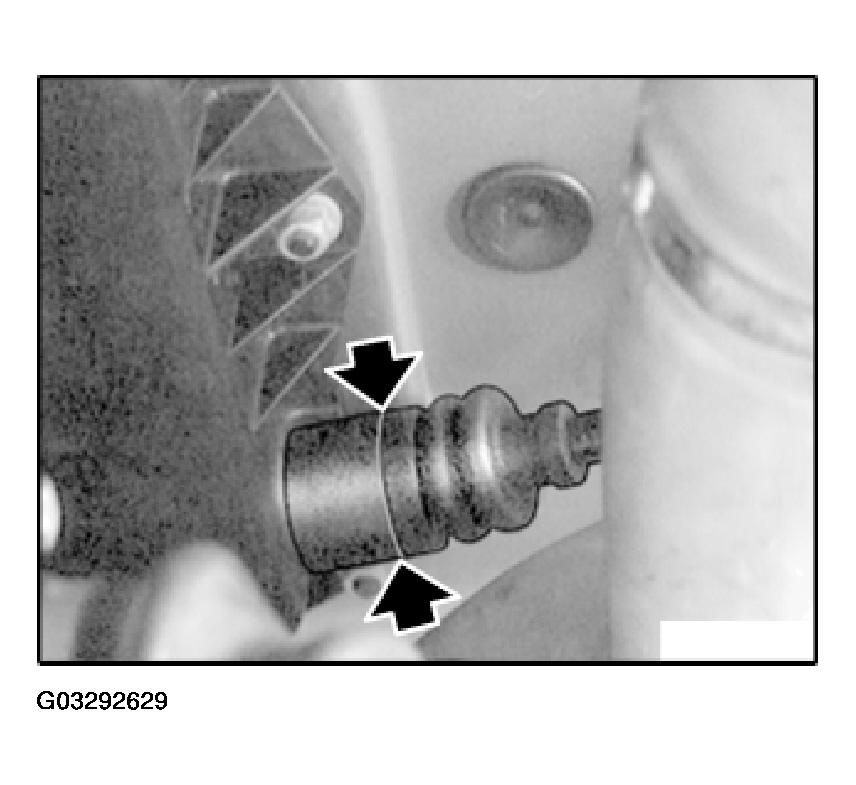

Ensure flush mounting between seal and housing.

To facilitate installation, use silicone spray as antiseize agent.

Fig 6: Identifying Flush Mounting Between Seal And Housing

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: After installing Bowden cables.

Vehicle at standstill.
Ignition turned on.
Touch parking brake button three times at intervals of 5 seconds.
Carry out brake test on brake analyzer.
- Drive car with rear axle only onto dynamic brake analyzer.
- Engine off.
- Touch parking brake button and ensure uniform increase.
