34 51 560 Removing And Installing/Replacing Pressure Sensor For DSC
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see BRAKES - SPECIAL TOOLS .
Special Tools Required:
- 34 1 290
Necessary Preliminary Tasks:
- Switch off ignition
- Protect brake system against unauthorized actuation
After completing work:
- Flush brake system. Refer to 34 00 025 REPLACING FLUID IN ABS/ASC+T BRAKE SYSTEM .
- Check pressure sensor for leaks.

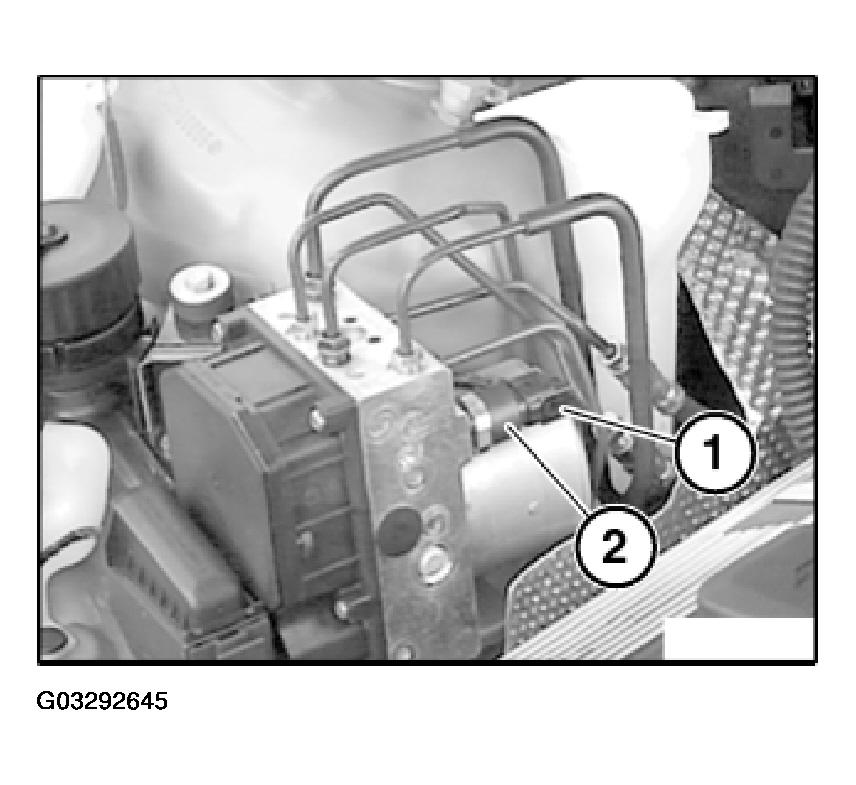

Disconnect plug connection (1).
Detach pressure sensor (2) with special tool 34 1 290.
Installation:
- Check sealing surfaces and thread of pressure sensor and of hydraulic unit for damage.
- Screw in a new pressure sensor immediately after unscrewing the old pressure sensor.
- Tightening torque, refer to 34 51 2AZ in BRAKES - TIGHTENING TORQUES .
