34 51 550 Removing And Installing/Replacing DSC Precharging Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .
After completing tasks, bleed brake system. Refer to 34 00 025 REPLACING FLUID IN ABS/ASC+T BRAKE SYSTEM .

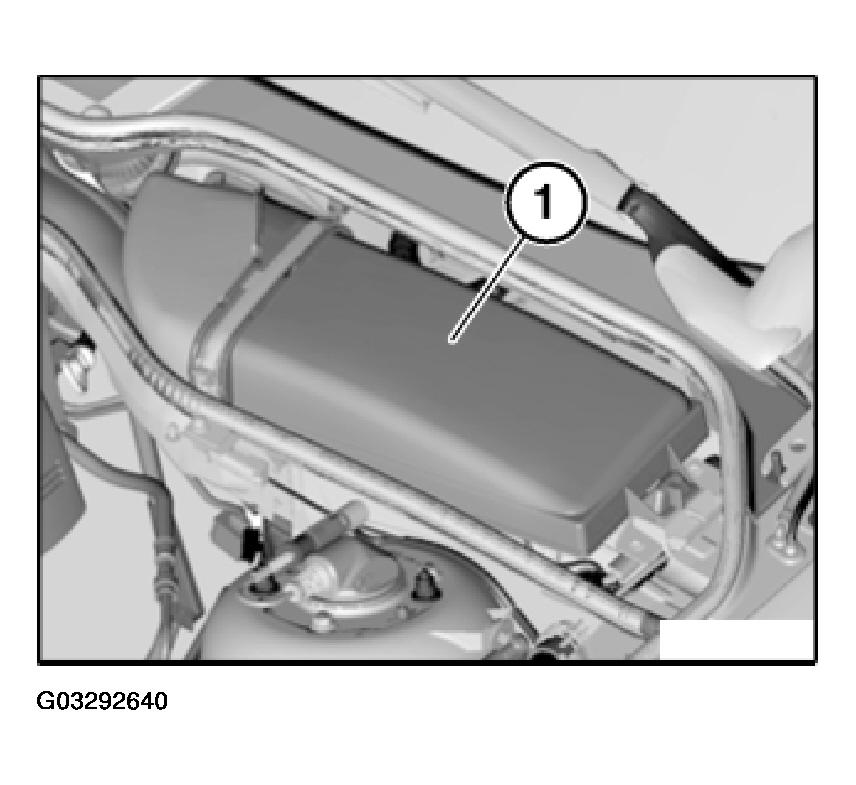

Remove microfilter (1).

Fig 1: Removing Microfilter

Courtesy of BMW OF NORTH AMERICA, INC.

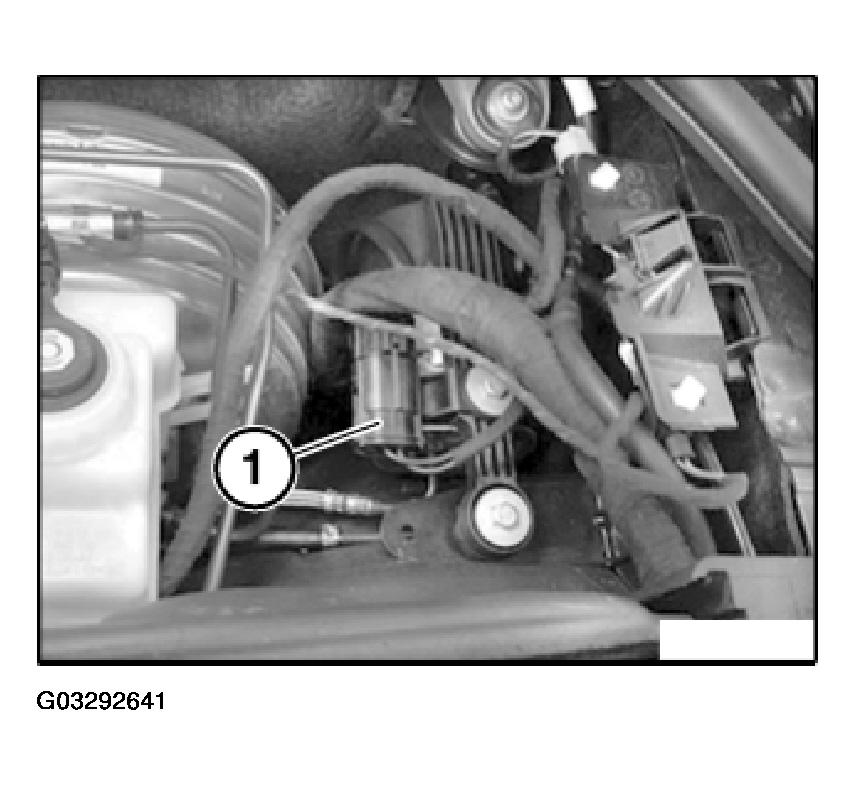

Disconnect plug connection (1).

Installation:

Make sure plug connection engages correctly.

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

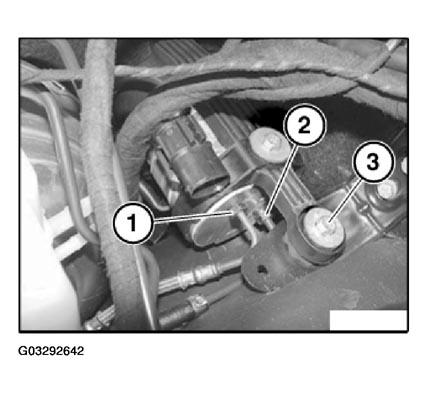

Release brake lines (1) and (2).

Installation:

Tightening torque, refer to 34 32 1AZ in BRAKES - TIGHTENING TORQUES .

Line connections (see designation on precharging pump):

HZ: Line to brake master cylinder

BA: Line to expansion tank

IMPORTANT: Do not mix up brake lines. Catch escaping brake fluid.

Release screw (3).

Installation:

Tightening torque, refer to 34 51 11AZ in BRAKES - TIGHTENING TORQUES .

Fig 3: Identifying Brake Lines

Courtesy of BMW OF NORTH AMERICA, INC.

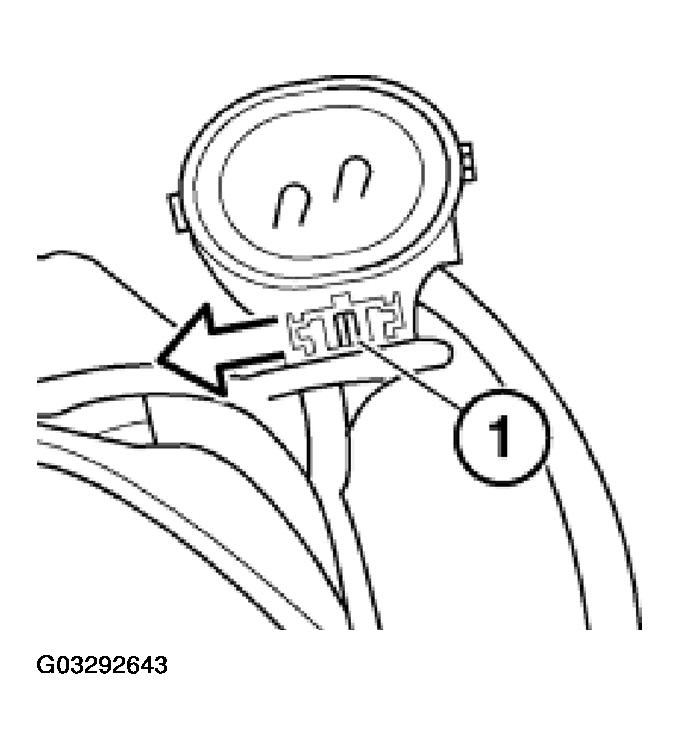

Press catch (1) in direction of arrow and disconnect plug.

Fig 4: Locating Catch In Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Installation:

Tightening torque, refer to 34 51 11AZ in BRAKES - TIGHTENING TORQUES .

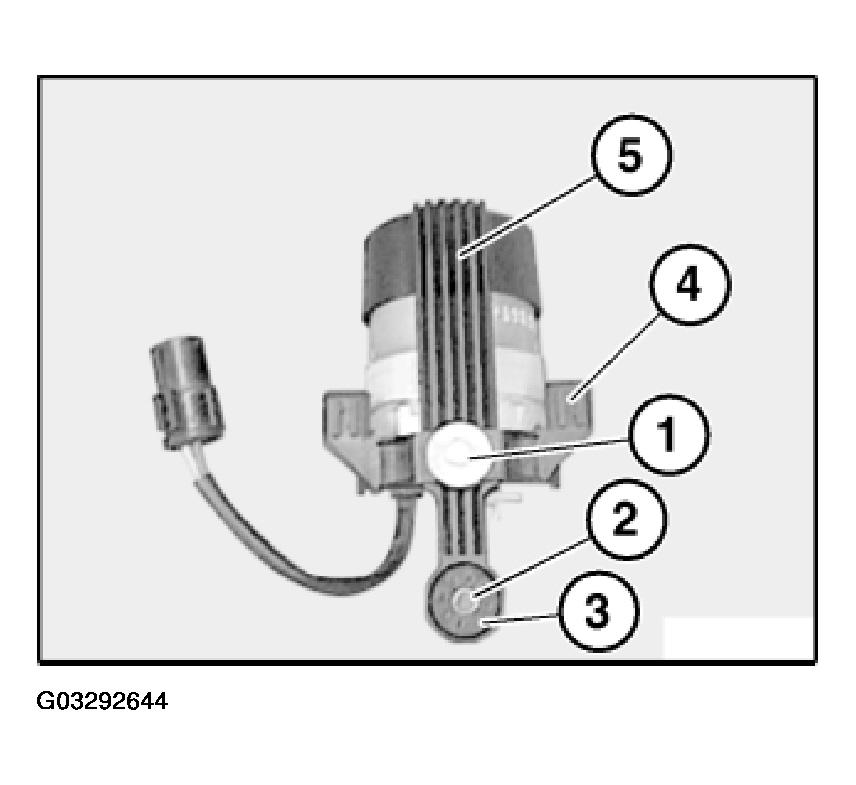

Remove sleeve (2) and rubber mount (3).

Installation:

Ensure proper seating of rubber mounts.

Modify holders (4) and (5).

Fig 5: Identifying Sleeve, Rubber Mount And Modify Holders
