34 11 250 Removing And Installing/Replacing A Brake Carrier/Brake Guard Plate At Front
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove front brake discs. Refer to 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS .

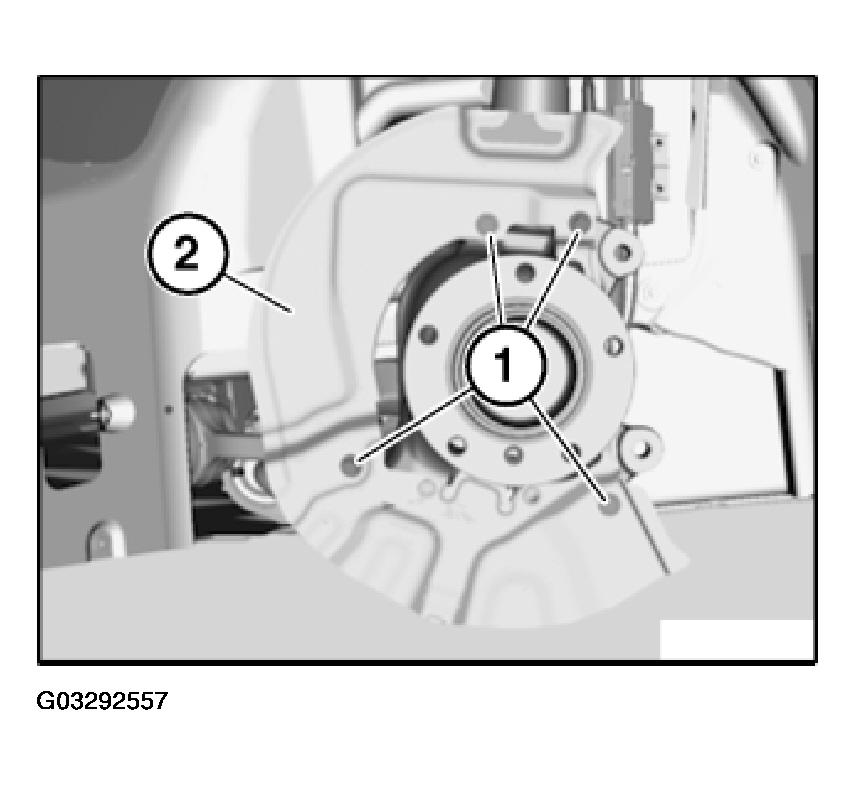

Release screws (1) and remove brake guard plate (2).
Installation:
Tightening torque, refer to 34 11 5AZ in BRAKES - TIGHTENING TORQUES .
