34 00 519 Checking Service Brake: High- And Low-Pressure Tests

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The high/low-pressure test (leakage test) must be carried out with the engine switched off.

Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

High-pressure test (leakage test):

Perform test on both brake circuits.

1st brake circuit, front axle.

2nd brake circuit, rear axle.

Remove bleeder screw, connect pressure tester and bleed.

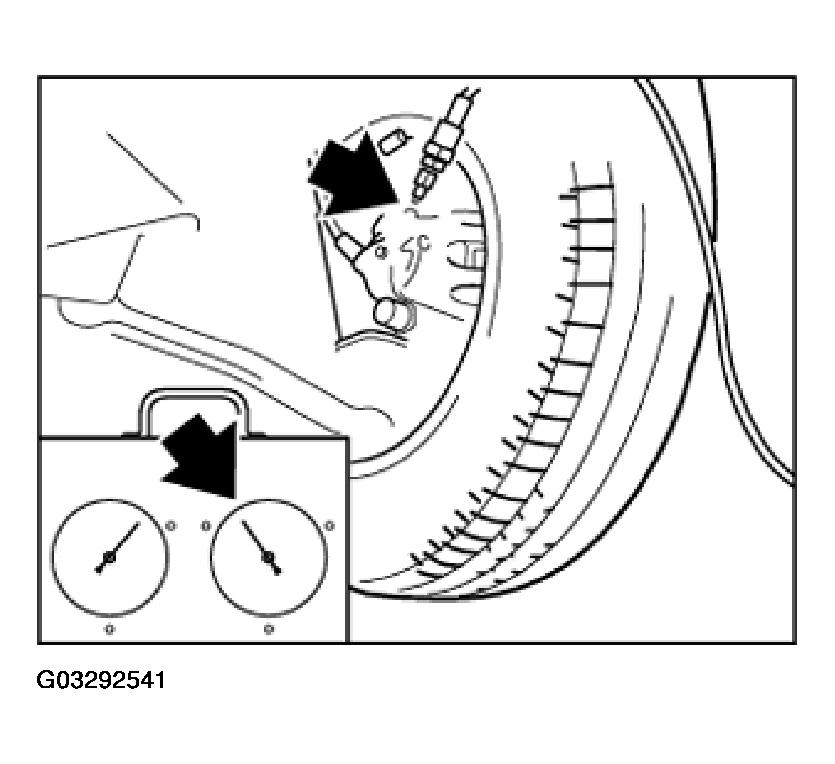

Fig 1: Connecting Pressure Tester

Courtesy of BMW OF NORTH AMERICA, INC.

Load brake pedal with a force and block brake pedal with pedal support.

After 2 minutes, pressure is permitted to drop by max. 8 %.

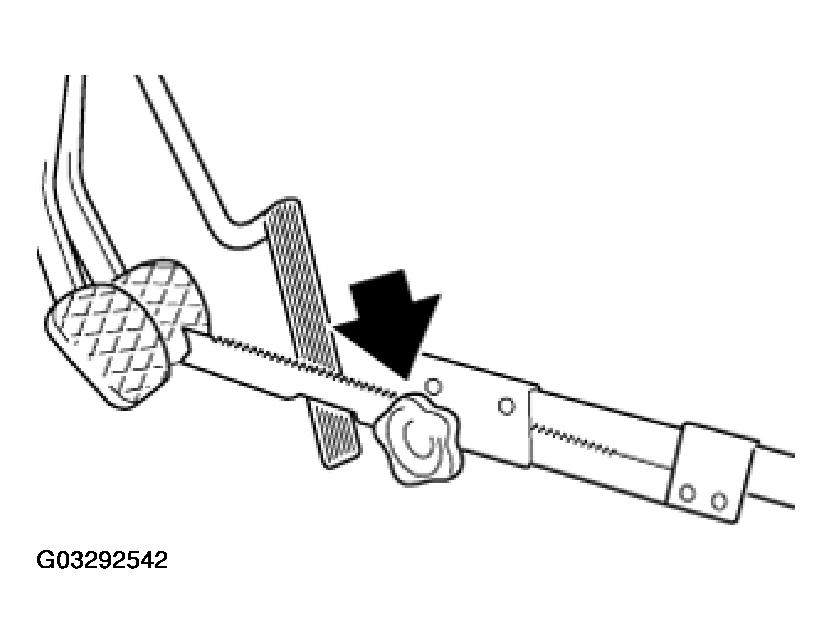

Fig 2: Blocking Brake Pedal With Pedal Support

Courtesy of BMW OF NORTH AMERICA, INC.

Low-pressure test:

Perform test on both brake circuits.

Reset pedal support until test pressure in braking system is 2-5 bar.

Vehicle and measuring apparatus must remain steady as vibrations will distort the result.

Pressure must remain constant for a test period of 5 minutes.

Check all rubber parts in case of excessive pressure drop.

Bleed brake calipers and wheel brake cylinders after finishing test.

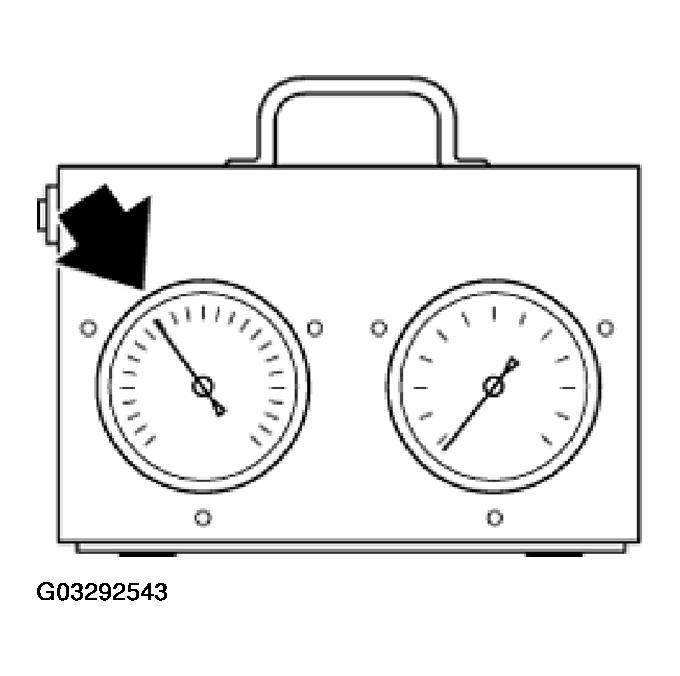

Fig 3: Identifying Pressure Tester
