34 00 050 Bleeding Brake System With DSC: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Read and comply with General Information. Refer to 34 00 ... GENERAL INFORMATION .
- Remove air duct from microfilter on left. Refer to 64 31 031 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER AIR DUCT (AUTOMATIC A/C HIGH) .
Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .
Observe filling and bleeding instructions when replacing or repairing:
- Brake master cylinder.
- Hydraulic unit.
- Components and connecting lines which are fitted between these assemblies.
- Precharging pump.
After work has been carried out on the precharging pump, only the front-axle brake circuit has to be bled. Before flushing the brake system, activate the precharging pump once with the Diagnosis and Information System (DIS) (bleeder unit connected with max. 2 bar filling pressure).
- Connect BMW Diagnosis and Information System (DIS).
- Call up service function for bleeding DSC hydraulics.

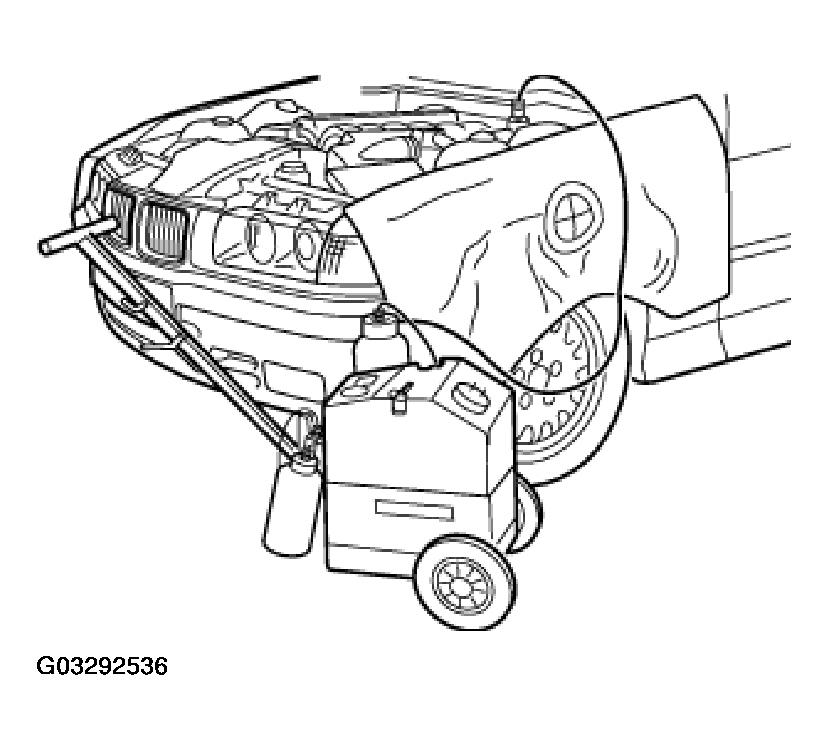

- Connect bleeder unit to expansion tank and switch on.
NOTE:
Check relevant Operating Instructions for each device. Charging pressure should not exceed 2 bar.
