Flushing Brake System Completely

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Connect bleeder hose with collecting tray to bleeder valve on rear right brake caliper.

Open bleeder valve and purge until clear, bubble-free brake fluid emerges.

Close bleed valve.

Follow same procedure on rear left, front right and front left wheel brake.

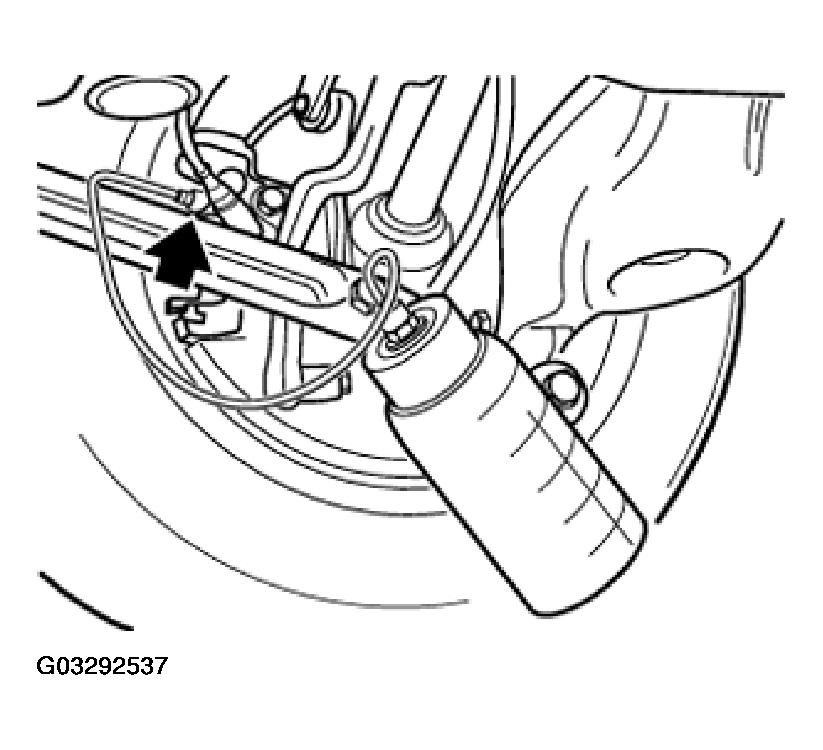

Fig 1: Connecting Bleeder Hose With Rear Right Brake Caliper
G03292537Courtesy of BMW OF NORTH AMERICA, INC.
