Bleeding Rear-Axle Brake Circuit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Connect bleeder hose with collecting tray to bleeder valve on rear right brake caliper.

Close bleeder valve.

Run through bleeding routine with BMW Diagnosis and Information System (DIS) with bleeder valve open.

After routine has finished, press brake pedal 5 times down to floor; clear bubble-free brake fluid must flow out.

Close bleed valve.

Repeat procedure at rear left.

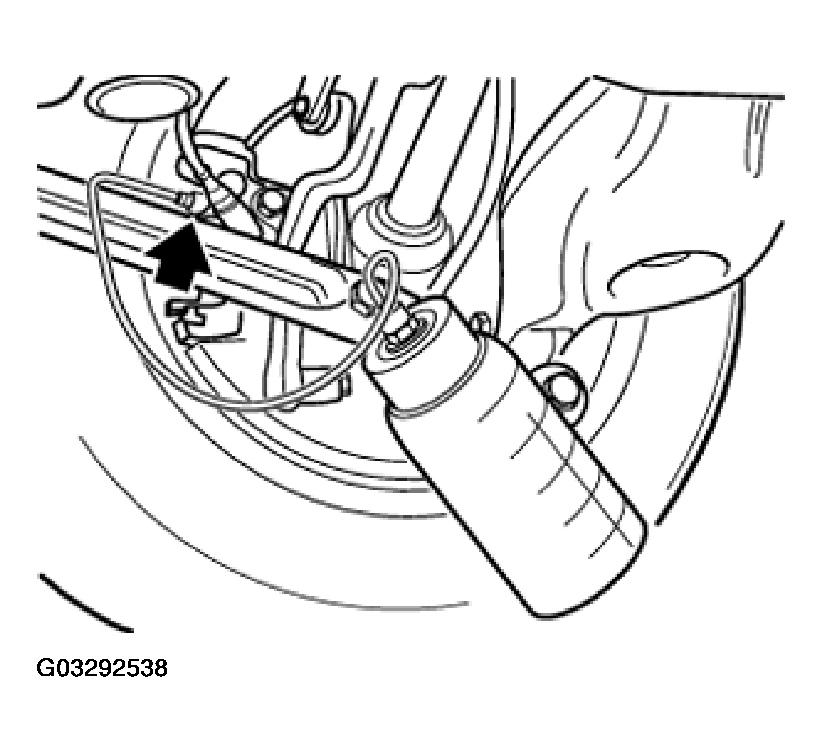

Fig 1: View Of Bleeder Hose With Rear Right Brake Caliper
G03292538Courtesy of BMW OF NORTH AMERICA, INC.
