34 00 010 Checking Thickness Of Brake Lining
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see BRAKES - SPECIAL TOOLS .
Special Tools Required:
- 34 1 260
NOTE:
The thickness of the outer brake linings can be determined without removing the wheels. If necessary, move car until opening for brake lining wear indicator (brake lining) can be seen through rim styling.

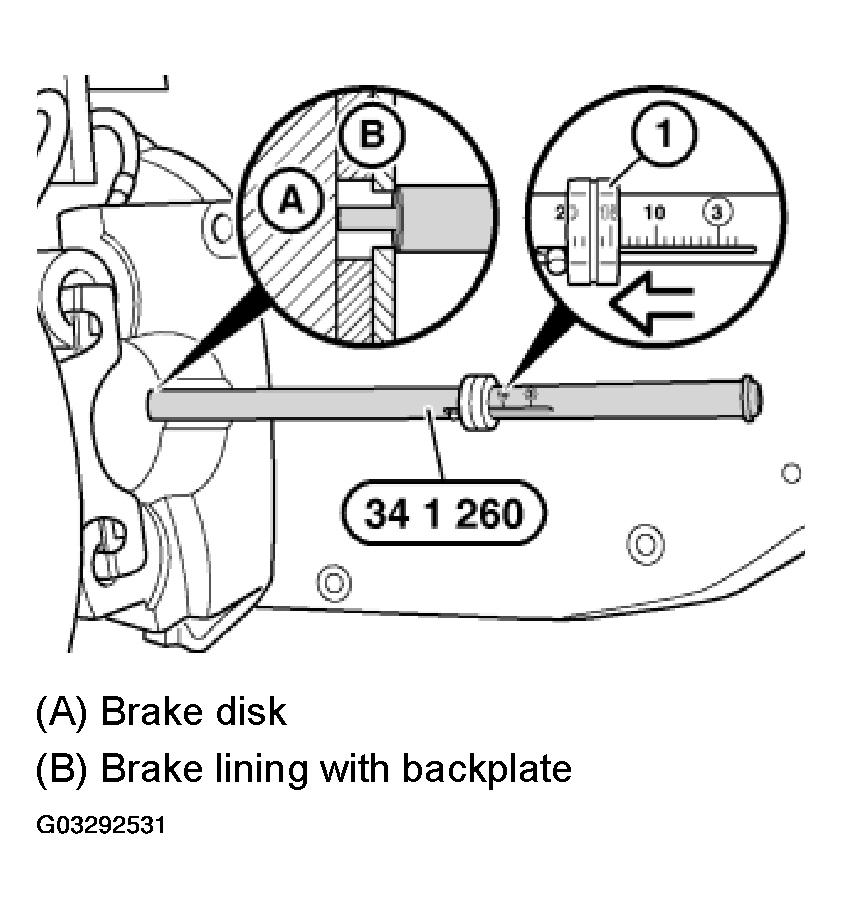

Insert special tool 34 1 260 through rim into opening for brake lining wear indicator.
Press special tool onto brake lining. Slide ring (1) in direction of arrow up to stop and read off measured value.
NOTE:
Safe limit for front brake and rear brake lining wear, refer to SPECIFICATIONS .
