34 00 009 Checking Brakes On Test Stand
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Check tires for damage.
- Check tire treads.
- Check tire pressure.
In the case of vehicles with ASC+T or DSC, the system must be deactivated with the switch. The ASC+T or DSC telltale and warning light must light up in the instrument cluster!
The brakes must be at normal operating temperature. For this purpose, gently warm up the brake discs/drums while dry by braking the vehicle several times.
E65 and E66: Carry out parking brake function check. Refer to 34 00 012 PARKING BRAKE FUNCTION CHECK .
IMPORTANT:

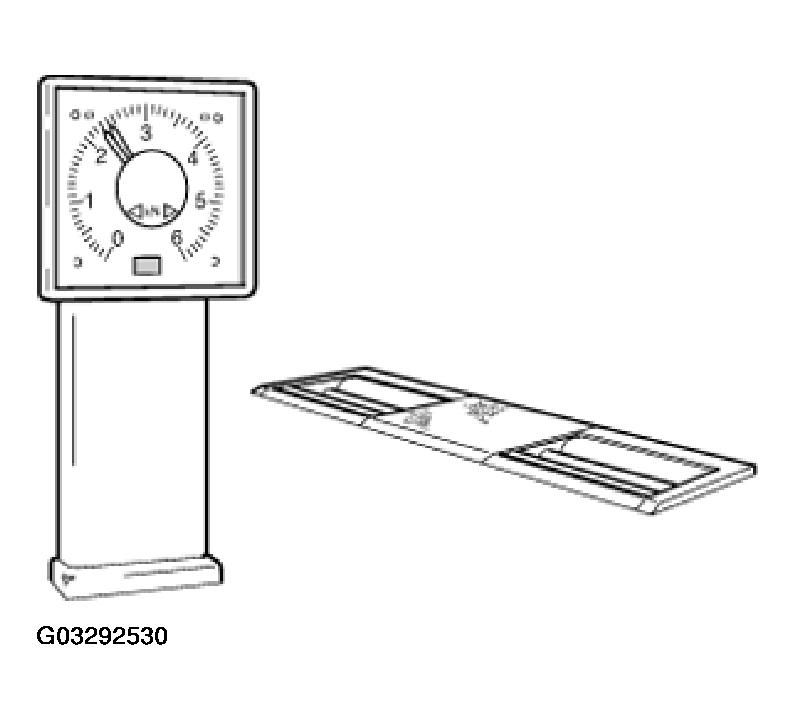

You should only use brake dynamometers whose test speed is <=5 km/h. You must follow without fail the guidelines contained in the operating instructions of the relevant test stand manufacturer. Failure to do so may result in damage to the vehicle and the system and also personal injury.
