32 33 000 Removing And Installing/Replacing Steering Wheel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Wheel/chassis alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary Preliminary Tasks:

Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove airbag unit. Refer to 32 34 020 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT (BASIC STEERING WHEEL) and 32 34 030 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT (SPORT STEERING WHEEL) .

Move wheels to straight-ahead position.

Disconnect plug connection (1).

Release screw (2) and remove steering wheel. Refer to 32 33 000 REMOVING AND INSTALLING/REPLACING STEERING WHEEL .

Installation:

Tightening torque 32 33 1AZ, refer to 32 33 STEERING WHEEL .

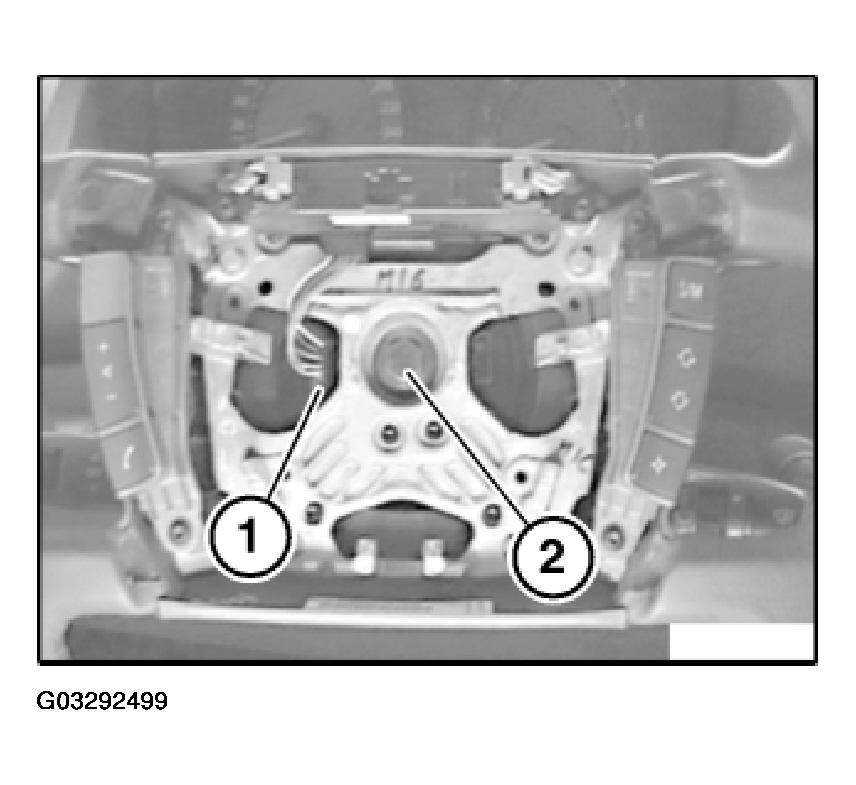

Fig 1: Steering Wheel Plug Connection And Retaining Screw

G03292499

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

Locking pin (1) must engage in recess of driver (2).

Installation:

Align steering wheel using grooved toothing to steering column and attach.

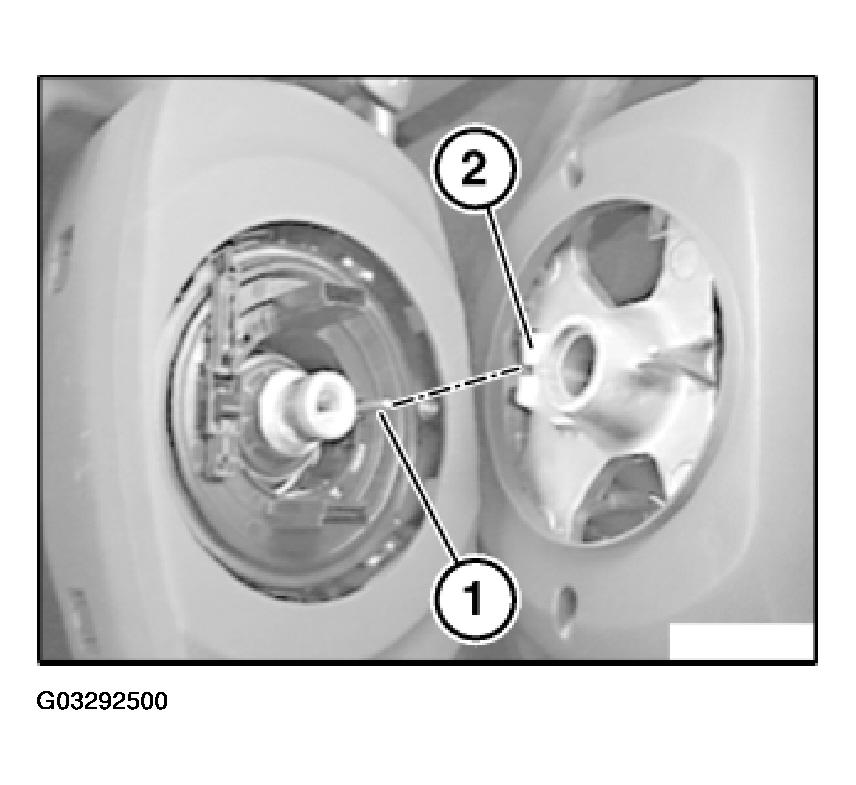

Fig 2: Locking Pin And Driver Recess

G03292500

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove steering wheel module control unit. Refer to 61 31 231 REMOVING AND INSTALLING/REPLACING STEERING WHEEL ELECTRONICS CONTROL UNIT and 61 31 232 REMOVING AND INSTALLING/REPLACING STEERING WHEEL MODULE CONTROL UNIT (SPORTS STEERING WHEEL) .

Remove multifunction steering wheel switches on both sides. Refer to 61 31 220 REMOVING AND INSTALLING/REPLACING MULTIFUNCTION STEERING WHEEL SWITCH .
