22 11 130 Removing And Installing/Replacing Left Mounting Bracket (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Replacing left engine mount. Refer to 22 11 011 REPLACING LEFT ENGINE MOUNT (N73) .
Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

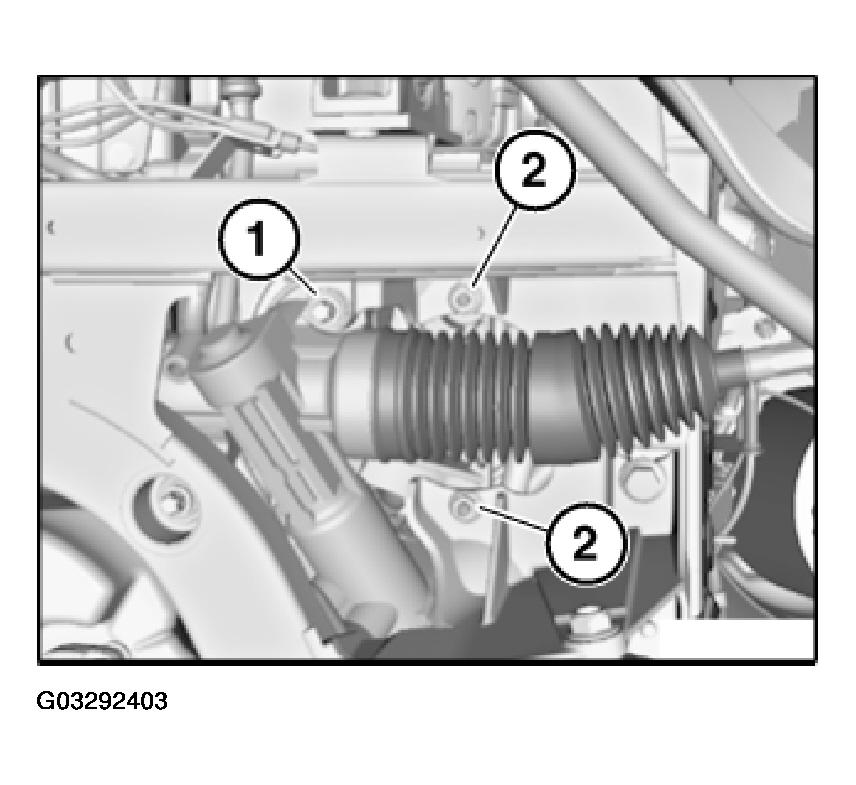

Release screw (1).
Tightening torque, refer to 32 00 1AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .
Release nuts (2).
Tightening torque, refer to 22 11 5AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
Remove mounting bracket.
