22 11 001 Replacing Right Engine Mount (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Secure engine in installation position. Refer to 11 00... SECURING ENGINE IN INSTALLATION POSITION .
Release both engine mounts from above.

Tightening torque, refer to 22 11 2AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
Remove both front wheels. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
Lower front axle support.

Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

Remove engine mount from mounting bracket.

Tightening torque, refer to 22 11 4AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .

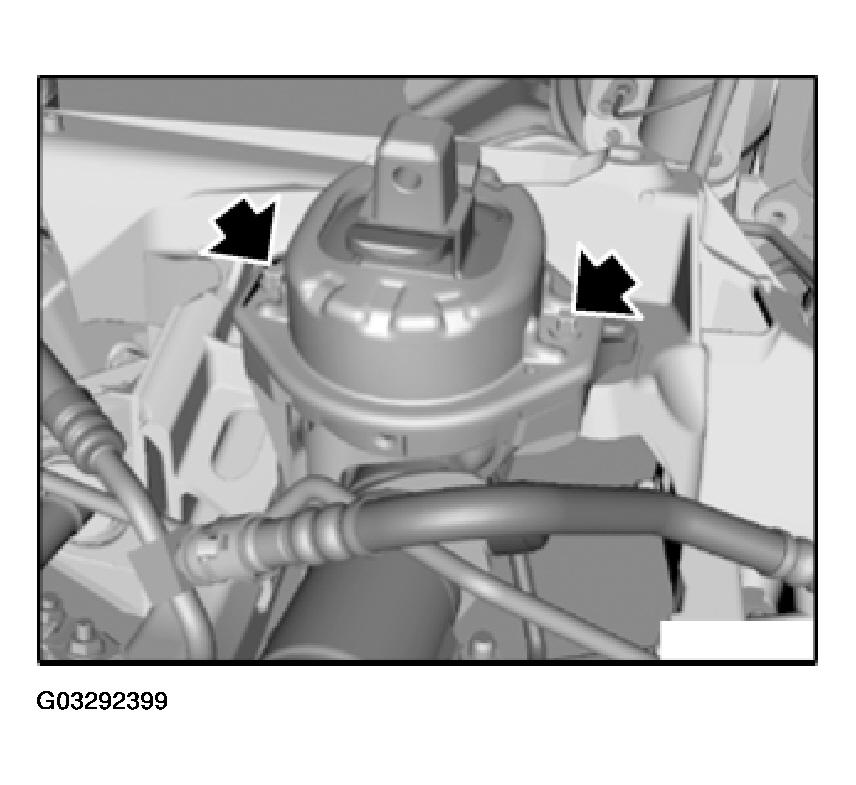

Fig 1: Engine Mounting Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lug (1) of engine mount must point to middle of vehicle.

Engine mount designations:

ENGINE MOUNT DESIGNATIONS

Right engine mount:	Even component number.
Left engine mount:	Odd component number.

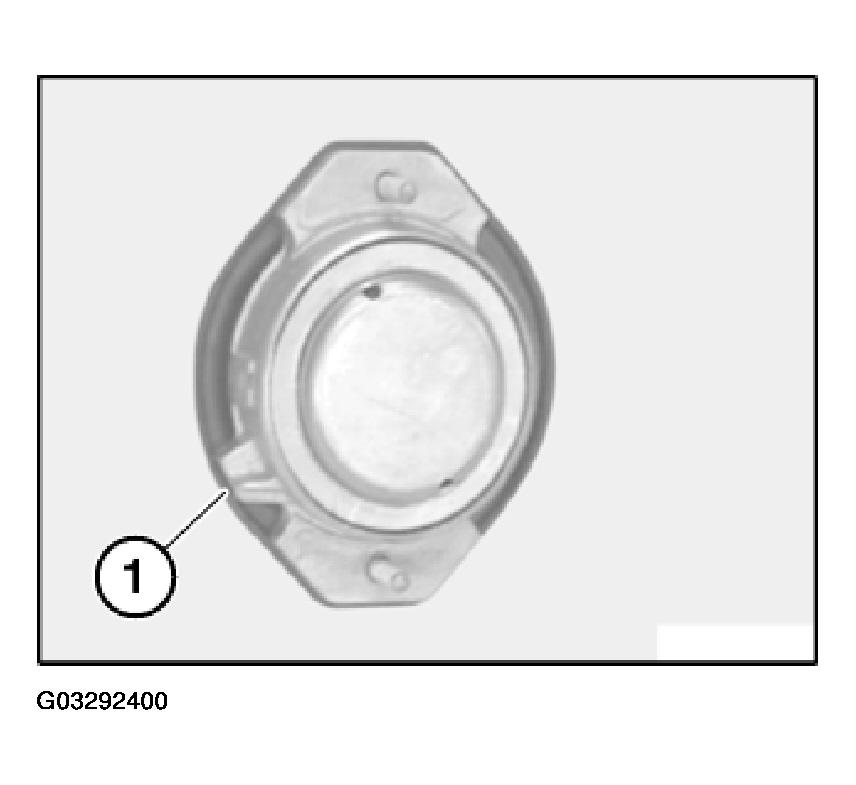

Fig 2: Engine Mount Lug

Courtesy of BMW OF NORTH AMERICA, INC.
