17 21 200 Removing And Installing/Replacing Engine Oil Cooler (N73)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove design cover.
Remove center front panel.
Remove radiator cover.

Recycling:

Catch and dispose of emerging engine oil.

Observe country-specific waste-disposal regulations.

Unscrew bolt (1).

Remove both lines in direction of arrow.

Installation:

Replace O-rings.

Remove engine oil cooler (2) in direction of arrow.

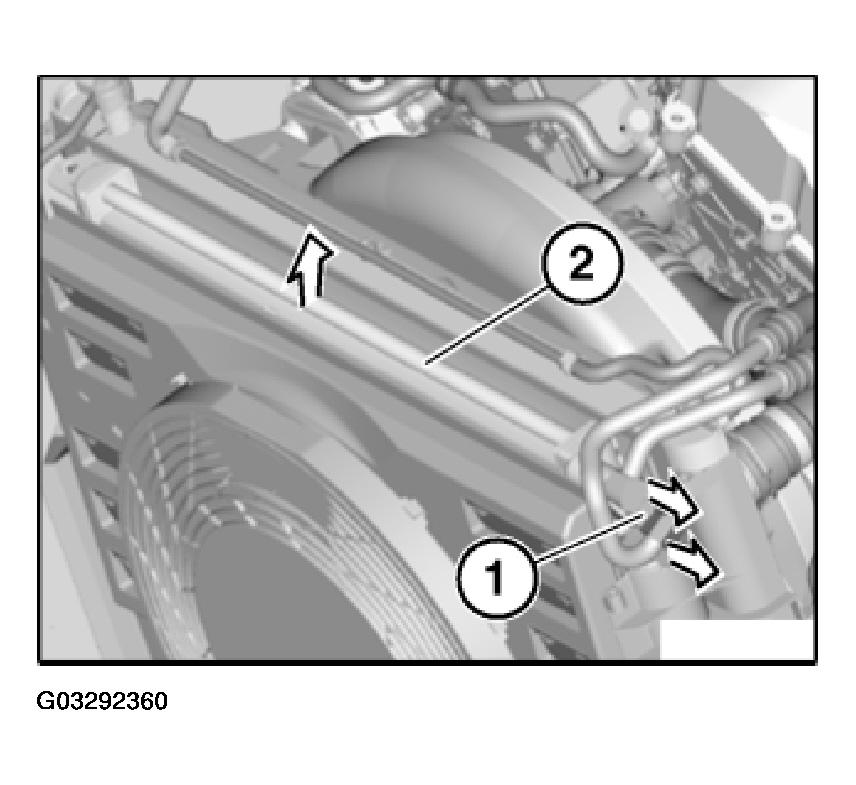

Fig 1: Removing Engine Oil Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble vehicle.

Check engine oil and top up if necessary.
