17 11 100 Removing And Installing/Replacing Coolant Expansion Tank (N73)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only carry out work on cooling system after engine has cooled down.

Recycling:

Catch and dispose of drained coolant.

Observe country-specific waste-disposal regulations.

Necessary Preliminary Tasks:

Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT (N73) .

Disconnect connector (1).

NOTE: Illustrations show air cleaner housing removed.

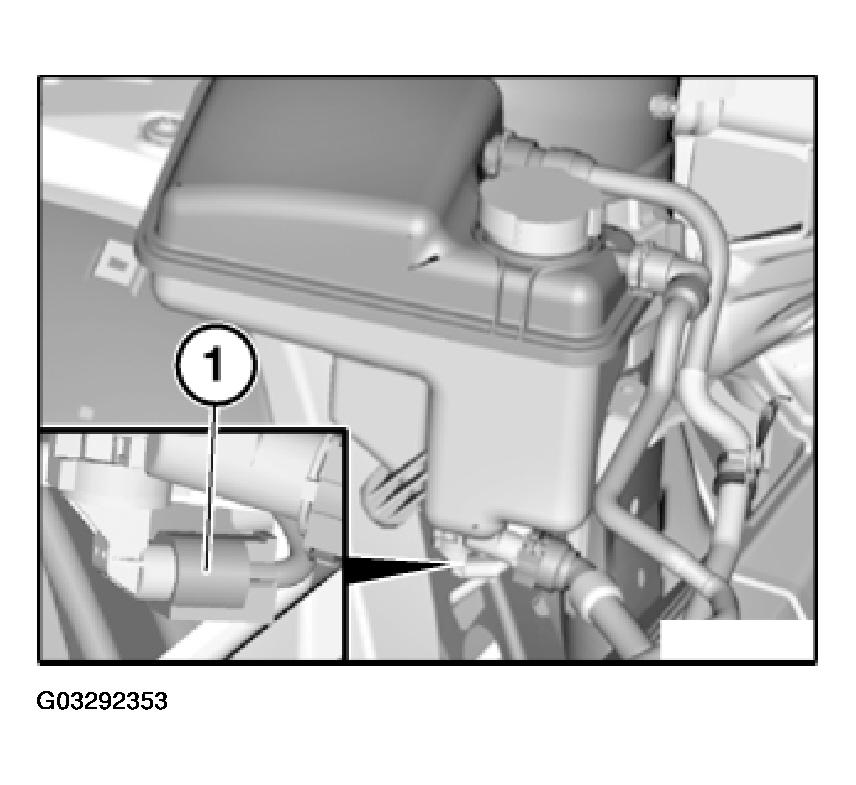

Fig 1: Disconnecting Connector For Coolant Expansion Tank

G03292353

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect coolant hoses (2) and (3).

Release screws (1).

Remove coolant tank (6) in direction of arrow.

Unlock and disconnect coolant hose (4) with tank (6) released.

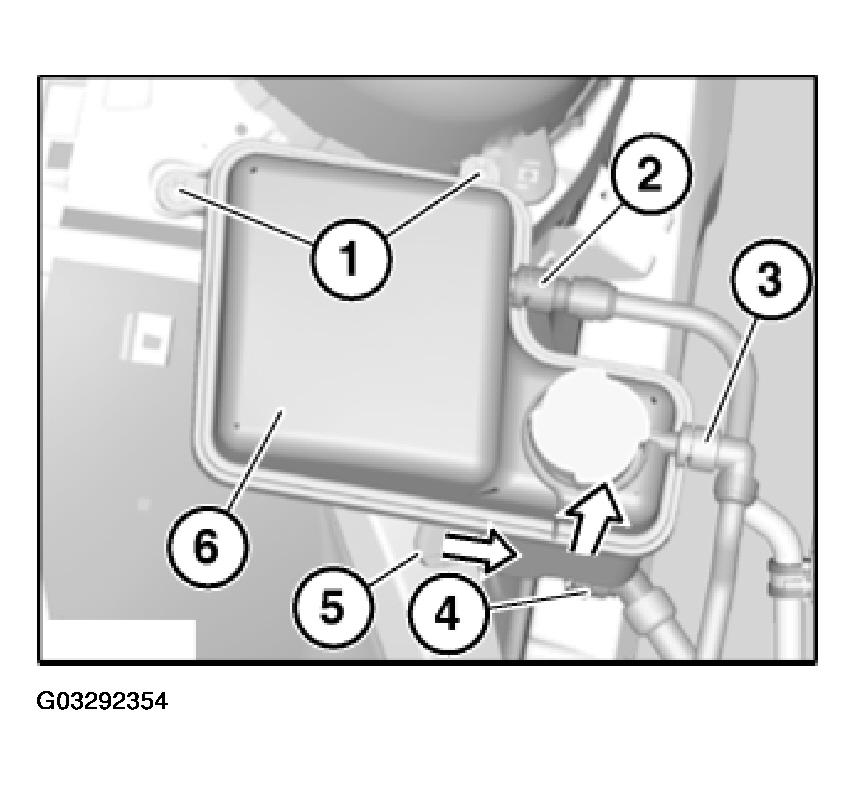

Fig 2: Removing Coolant Tank

G03292354

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure rubber grommet (5) is in correct installation position.

Adding Coolant:

Vent cooling system and check for leaks. Refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (N73) .
