17 40 000 Removing And Installing/Replacing Complete Auxiliary Fan (N73)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove design cover.

Unfasten screws.

Remove front wall (1).

NOTE: Illustration show N62.

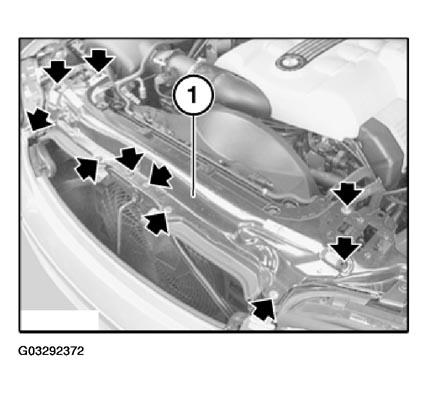

Fig 1: Locating Front Wall Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove radiator cover (2).

Unclip auxiliary fan cover and remove.

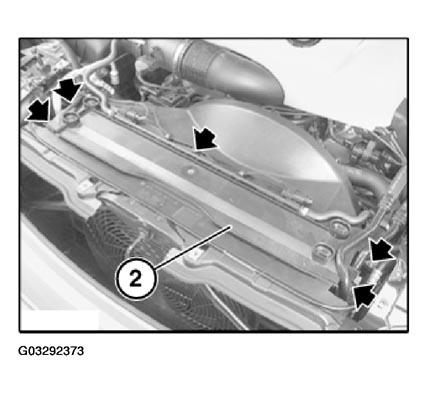

Fig 2: View Of Radiator Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

Remove auxiliary fan (1) towards top.

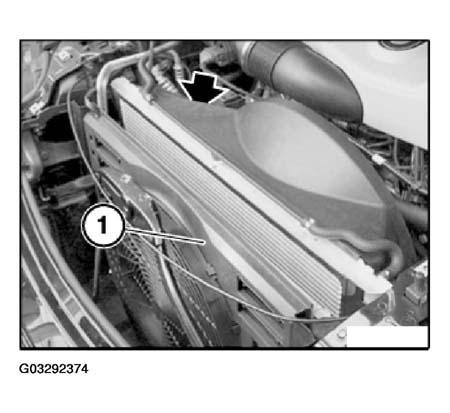

Fig 3: Identifying Auxiliary Fan

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.

Check function of DME.
