13 54 036 Removing And Installing/Replacing Both Throttle Assemblies (N73)

WARNING: This page is about a different car, the 2008 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove air cleaner housing upper section. Refer to 13 71 010 REMOVING AND INSTALLING/REPLACING LEFT (OR RIGHT) INTAKE FILTER HOUSING (N73) .

Release tank vent line (2).

Disconnect connector (3).

Release screws (1).

Remove throttle assembly (4).

Installation:

Replace all seals.

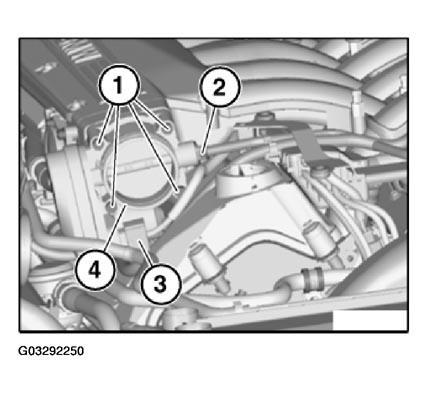

Fig 1: Tank Vent Line, Connector, Retaining Screws And Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows cyl. 1-6.

Assemble engine.

Check function of DME.
