13 53 567 Replacing Fuel Pressure Sensor (N73)

WARNING: This page is about a different car, the 2008 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see FUEL SYSTEM - SPECIAL TOOLS .

Special Tools Required:

13 5 320

Necessary Preliminary Tasks:

Remove manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .

Disconnect connector (1).

Detach pressure sensor (2) with special tool 13 5 320.

Tightening torque, refer to 13 53 8AZ in FUEL SYSTEM - TIGHTENING TORQUES .

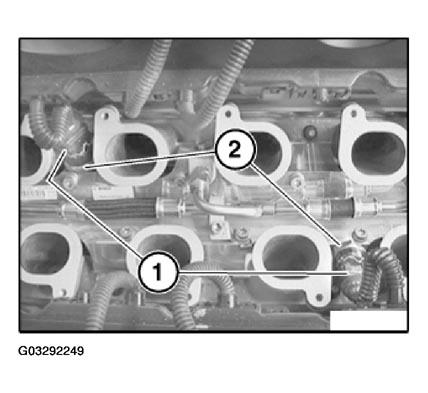

Fig 1: Manifold Connector And Pressure Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check fuel system for leaks.

Check function of DME.
