13 51 061 Removing And Installing/Replacing High-Pressure Pump For Cylinders 7 To 12 (73)

Necessary Preliminary Tasks:

• Remove manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .

Recycling:

Fuel escapes when fuel lines are detached.

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

Release lines (2).

Release lines (3).

Tightening torque, refer to 13 53 1AZ in FUEL SYSTEM - TIGHTENING TORQUES .

Release lines (4).

Tightening torque, refer to 13 53 2AZ in FUEL SYSTEM - TIGHTENING TORQUES .

Release lines (5).

Tightening torque, refer to 13 53 3AZ in FUEL SYSTEM - TIGHTENING TORQUES .

Disconnect connector (1).

Unscrew screws (6).

Tightening torque, refer to 13 51 1AZ in FUEL SYSTEM - TIGHTENING TORQUES .

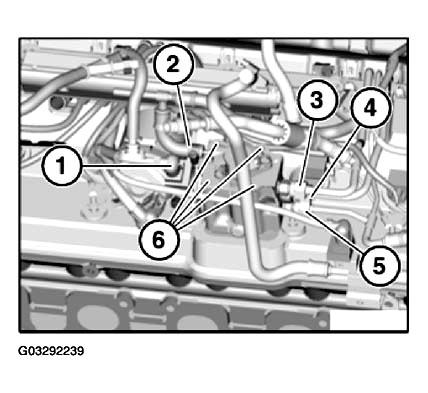

Fig 1: Manifold Fuel Lines, Connector And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replace O-ring (1).

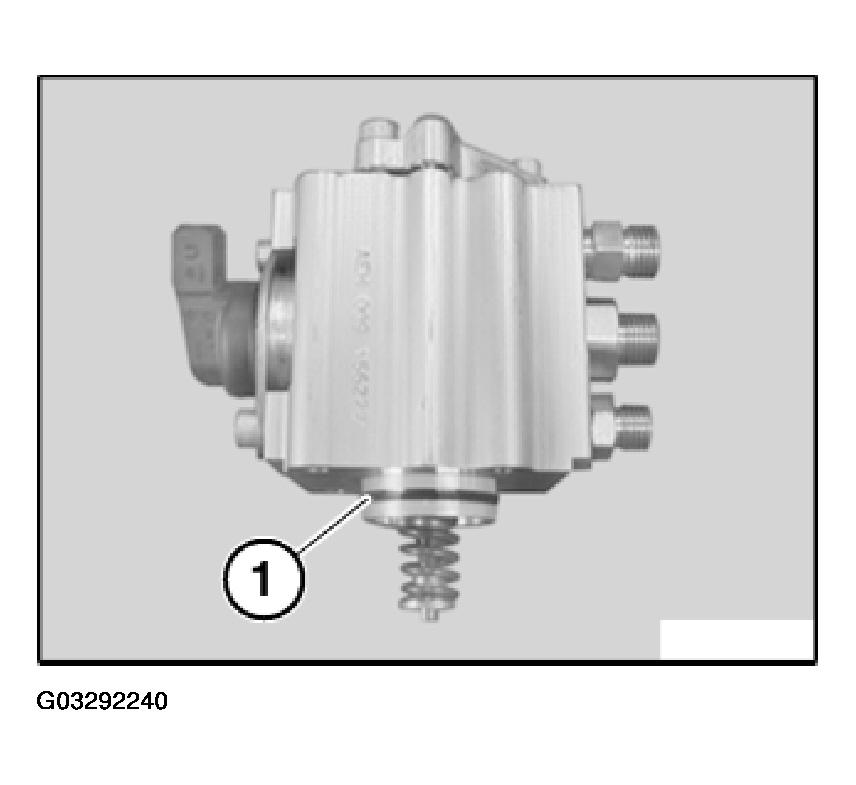

Fig 2: O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bucket tappet (1) in direction of arrow.

Installation:

If necessary replace bucket tappet (1).

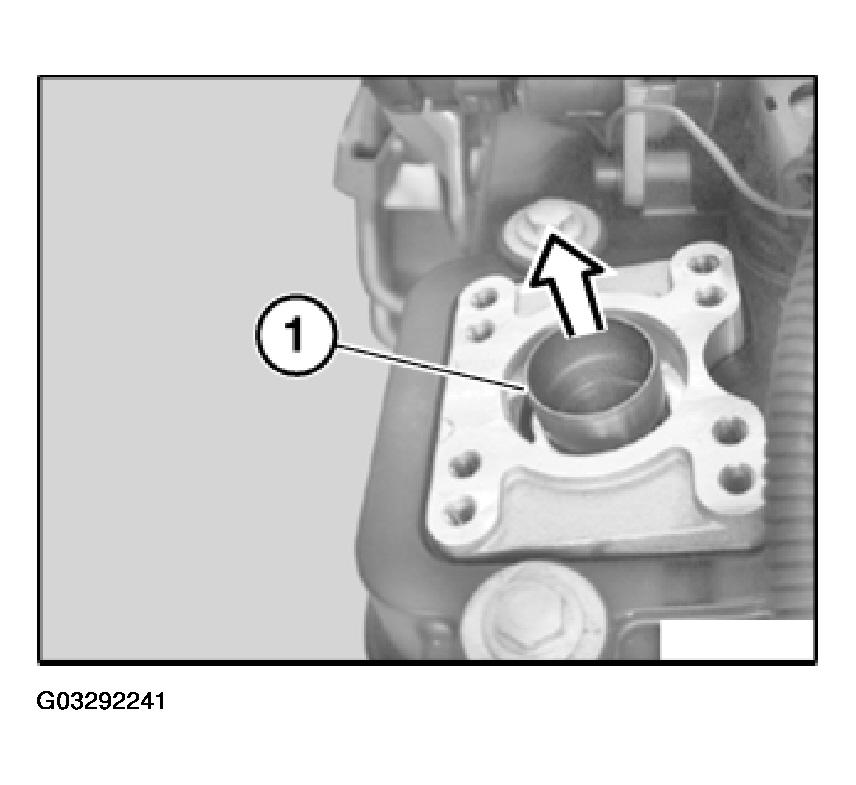

Fig 3: Bucket Tappet And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

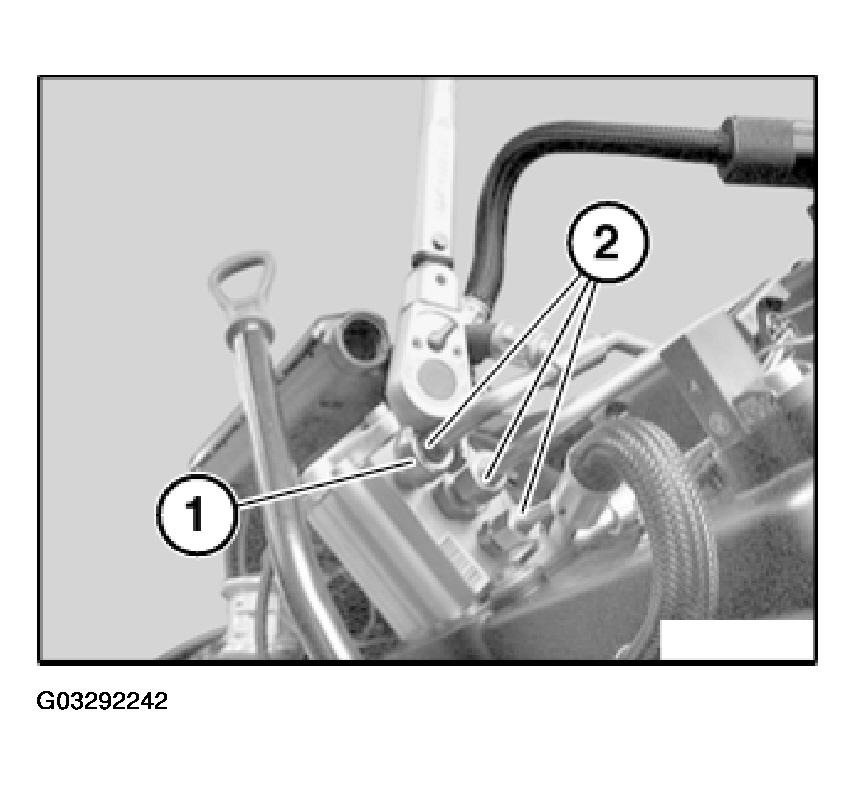

Secure lines (2) from bottom upwards with a suitable line wrench (1).

Fig 4: Lines And Line Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME.
