13 31 028 Checking Fuel Feed Pressure (N73)
WARNING: This page is about a different car, the 2008 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see FUEL SYSTEM - SPECIAL TOOLS .
Special Tools Required:
- 13 5 270
Necessary Preliminary Tasks:
- Connect DIS Tester.
Recycling:
Catch and dispose of escaping fuel in a suitable container.
Observe country-specific waste-disposal regulations.

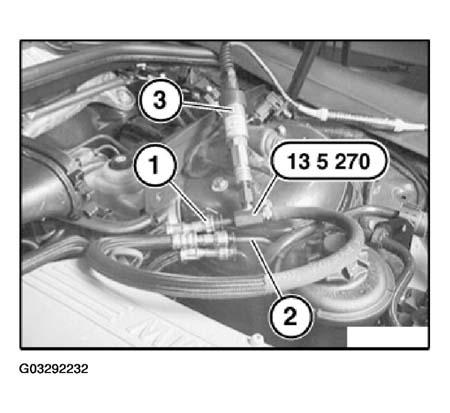

Disconnect quick-release coupling (1) from feed line (2).
Connect pressure sensor (3) of DIS Tester.
Insert special tool 13 5 270 between lines (1) and (2).
Switch on ignition. Read off fuel feed pressure. Refer to FUEL SYSTEM - TECHNICAL DATA .
